Data sheet 6ES7322-1CF00-0AA0

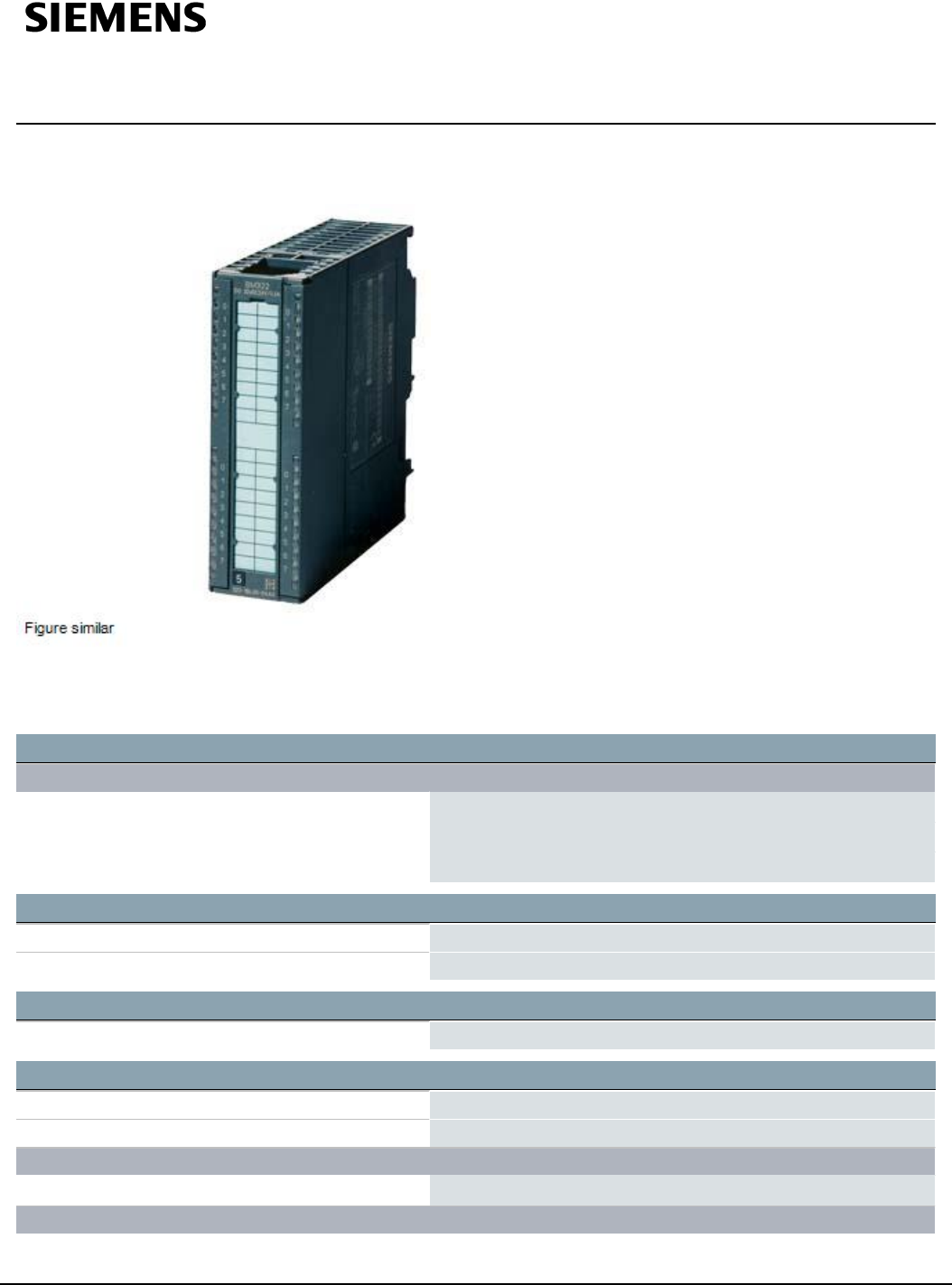

SIMATIC S7-300, Digital output SM 322, isolated, 8 DO, 48-125 V
DC, 1.5A, 1x 20-pole
Supply voltage
Load voltage L+
● Rated value (DC)
48V; 48 V DC to 125 V DC
● permissible range, lower limit (DC)
40V
● permissible range, upper limit (DC)
140V
Input current
from load voltage L+ (without load), max. 2mA
from backplane bus 5 V DC, max. 100mA
Power loss
Power loss, typ. 7.2W
Digital outputs
Number of digital outputs 8
Limitation of inductive shutdown voltage to M (-1 V)
Switching capacity of the outputs
● on lamp load, max.
15W; 15 W (48 V) or 40 W (125 V)
Output voltage
6ES7322-1CF00-0AA0 Subject to change without notice
