Data Sheet

Data sheet 6ES7332-8TF01-0AB0

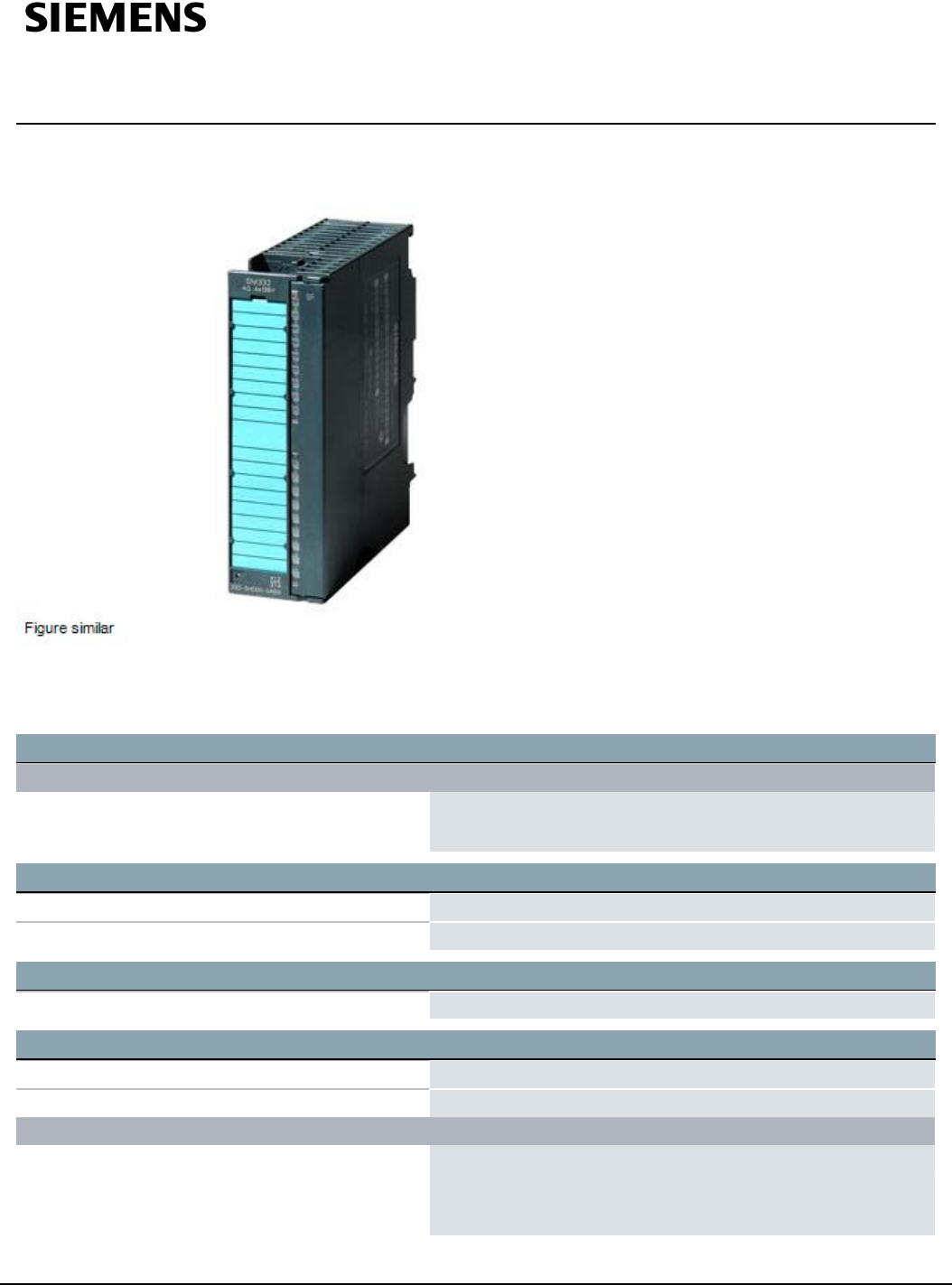

SIMATIC DP, HART analog output, SM 332, 8 AO, 0/4 - 20 mA

HART, for ET200M with IM153-2, IM 153-2, 20-pole Functions: FW

update, HART auxiliary variables, redundancy, local diagnostic buffer

with time stamping,

Supply voltage

Load voltage L+

● Rated value (DC)

24V

● Reverse polarity protection

Yes

Input current

from load voltage L+ (without load), max. 350mA

from backplane bus 5 V DC, max. 110mA

Power loss

Power loss, typ. 6W

Analog outputs

Number of analog outputs 8

Current output, no-load voltage, max. 24V

Output ranges, current

● 0 to 20 mA

Yes

● -20 mA to +20 mA

● 4 mA to 20 mA

Yes

6ES7332-8TF01-0AB0 Subject to change without notice

Page 1/

PAGE 1
Data sheet 6ES7332-8TF01-0AB0 SIMATIC DP, HART analog output, SM 332, 8 AO, 0/4 - 20 mA HART, for ET200M with IM153-2, IM 153-2, 20-pole Functions: FW update, HART auxiliary variables, redundancy, local diagnostic buffer with time stamping, Supply voltage Load voltage L+ ● Rated value (DC) 24 V ● Reverse polarity protection Yes Input current from load voltage L+ (without load), max. 350 mA from backplane bus 5 V DC, max. 110 mA Power loss Power loss, typ.
PAGE 2
Connection of actuators ● for current output two-wire connection Yes Load impedance (in rated range of output) ● with current outputs, max. 750 Ω ● with current outputs, inductive load, max. 10 mH Destruction limits against externally applied voltages and currents ● Voltages at the outputs towards MANA +60/-0.5 V Cable length ● shielded, max. 800 m Analog value generation for the outputs Integration and conversion time/resolution per channel ● Resolution with overrange (bit including sign), max.
PAGE 3
Potential separation Potential separation analog outputs ● between the channels No ● between the channels and backplane bus Yes ● Between the channels and load voltage L+ Yes Isolation Isolation tested with 500 V DC Degree and class of protection IP degree of protection IP20 Connection method required front connector 20-pin Dimensions Width 40 mm Height 125 mm Depth 117 mm Weights Weight, approx.
