Data Sheet

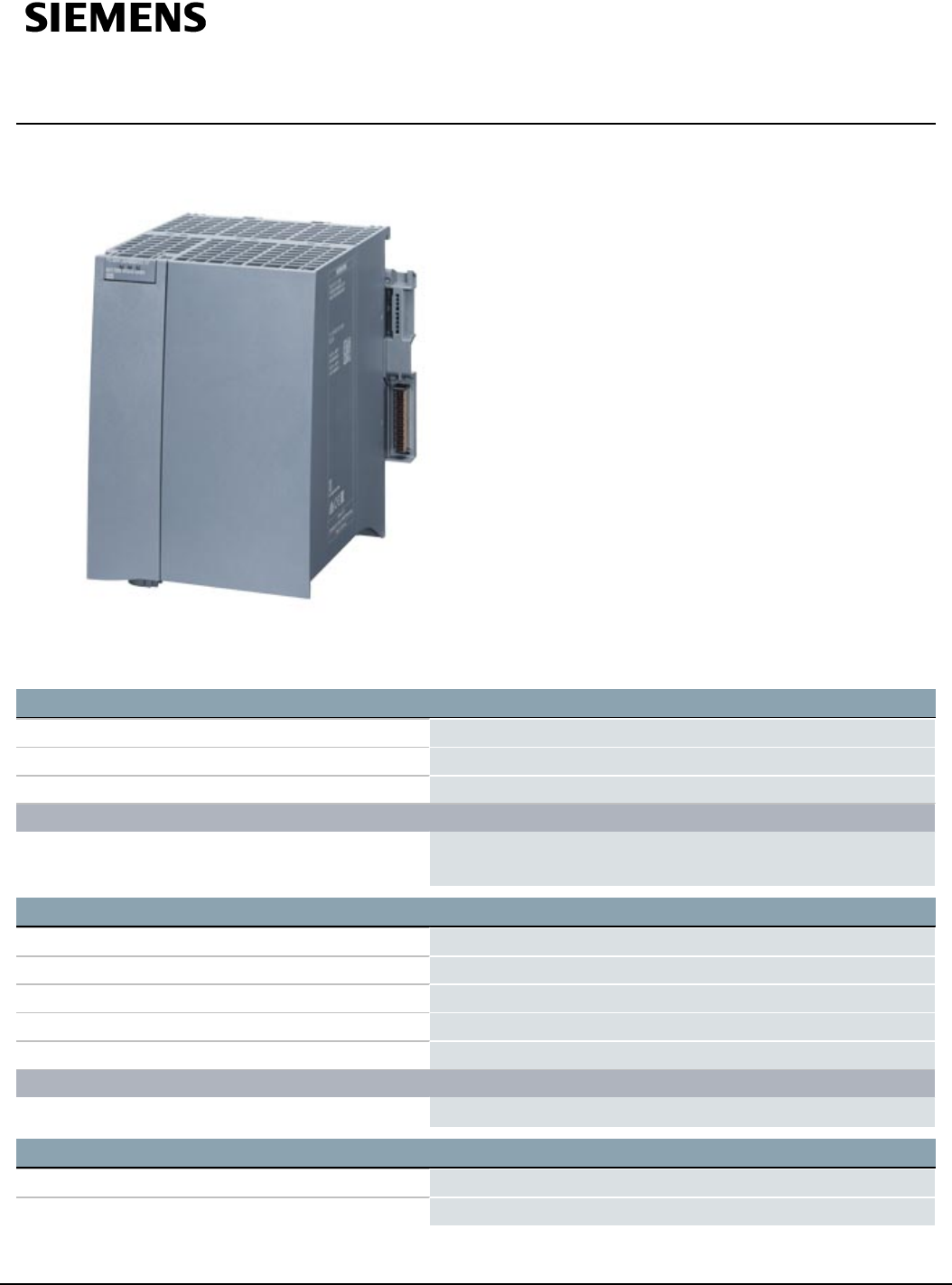

Data sheet 6ES7505-0RB00-0AB0

SIMATIC S7-1500, System power supply with buffer functionality PS

60W 24/48/60V DC HF, supplies the backplane bus of the S7-1500

with operating voltage and permits the CPU to retain RAM (data)

retentively

General information

Product type designation PS 60 W 24/48/60 V DC HF

HW functional status E01

Firmware version V1.0.0

Engineering with

● STEP 7 TIA Portal configurable/integrated as of

version

V14 SP1

Supply voltage

Rated value (DC) 24 V / 48 V / 60 V

permissible range, lower limit (DC) Static 19.2 V, dynamic 18.5 V

permissible range, upper limit (DC) Static 72 V, dynamic 75.5 V

Reverse polarity protection Yes

Short-circuit protection Yes

Mains buffering

● Mains/voltage failure stored energy time

20ms

Input current

Rated value at 24 V DC 3A

Rated value at 48 V DC 1.5A

6ES7505-0RB00-0AB0 Subject to change without notice

Page 1/

PAGE 1
Data sheet 6ES7505-0RB00-0AB0 SIMATIC S7-1500, System power supply with buffer functionality PS 60W 24/48/60V DC HF, supplies the backplane bus of the S7-1500 with operating voltage and permits the CPU to retain RAM (data) retentively General information Product type designation PS 60 W 24/48/60 V DC HF HW functional status E01 Firmware version V1.0.
PAGE 2
Rated value at 60 V DC 1.2 A Inrush current, max. ≤ 8 A for t ≤ 1 s Output current Short-circuit protection Yes Power Infeed power to the backplane bus 60 W Power loss Power loss at nominal rating conditions 12 W Interrupts/diagnostics/status information Status indicator Yes Isolation Isolation tested with 2 500 V DC (type test) EMC Interference immunity against voltage surge ● on the supply lines acc. to IEC 61000-4-5 Yes; ±1 kV (acc. to IEC 61000-4-5; 1995; surge symm.), ±2 kV (acc.
