Data Sheet

Data sheet 6ES7972-0BA70-0XA0

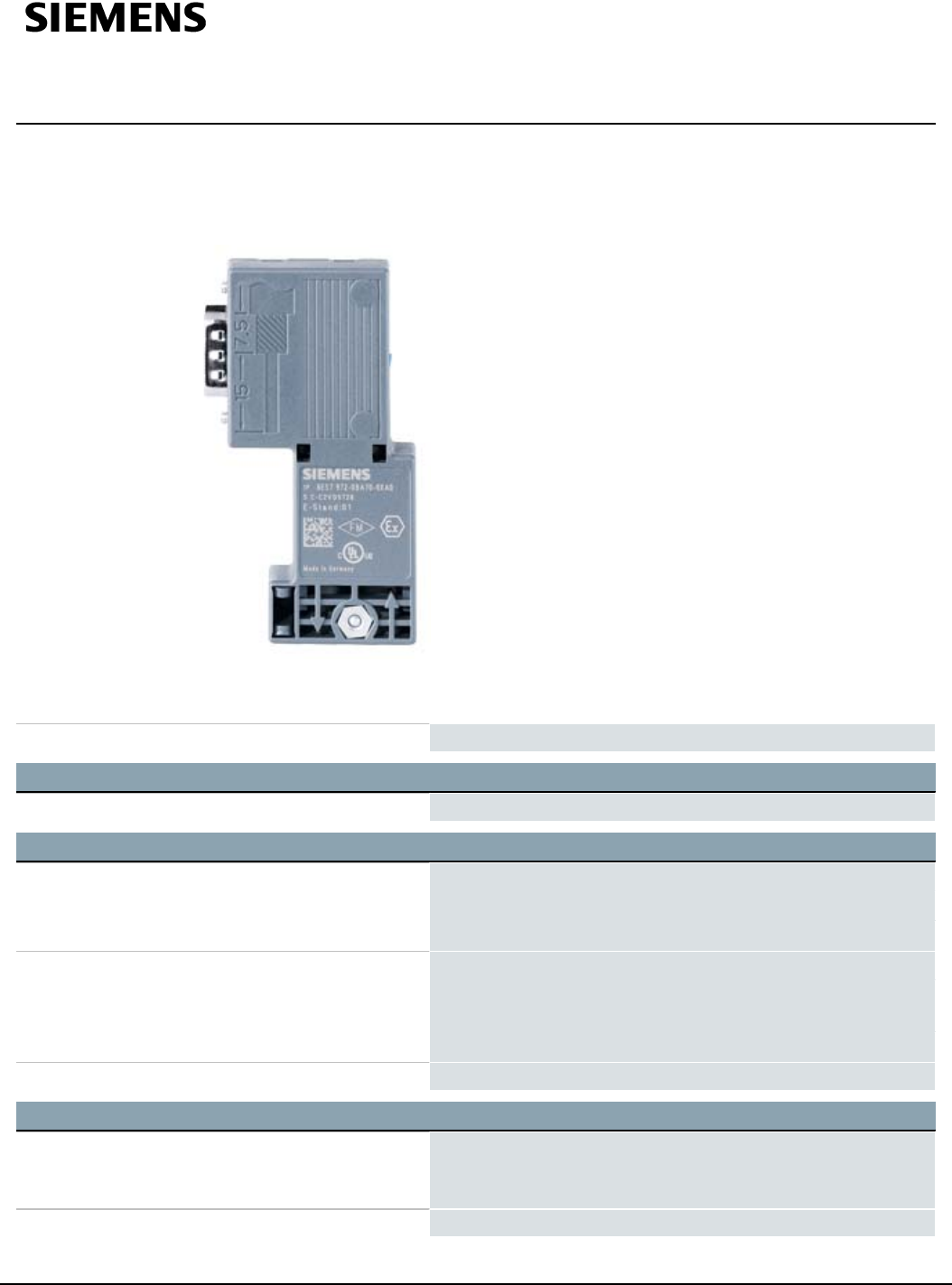

Product description PROFIBUS bus connector, RS 485, Fast Connect, without PG
socket, 90°
SIMATIC DP, Connection plug for PROFIBUS up to 12 Mbit/s 90°
cable outlet, 15.8x 72.2x 36.4 mm (WxHxD), Insulation displacement
method FastConnect, without PG socket
Suitability for use For connecting PROFIBUS nodes to the PROFIBUS bus cable
Transmission rate
Transfer rate / with PROFIBUS DP 9.6kbit/s...12Mbit/s
Interfaces
Number of electrical connections
● for PROFIBUS cables
2
● for network components or terminal equipment
1
Type of electrical connection
● for PROFIBUS cables
integrated insulation displacement contacts for 2-core PB FC-
installation cables
● for network components or terminal equipment
9-pin Sub-D connector
Type of electrical connection / FastConnect Yes
Mechanical data
Design of terminating resistor Integrated resistor combination that can be selected with slide
switch. Disconnect function: When the resistor is connected, the
outgoing bus is isolated
Material / of the enclosure plastic
6ES7972-0BA70-0XA0 Subject to change without notice
