Data sheet 6GF3420-0AA20

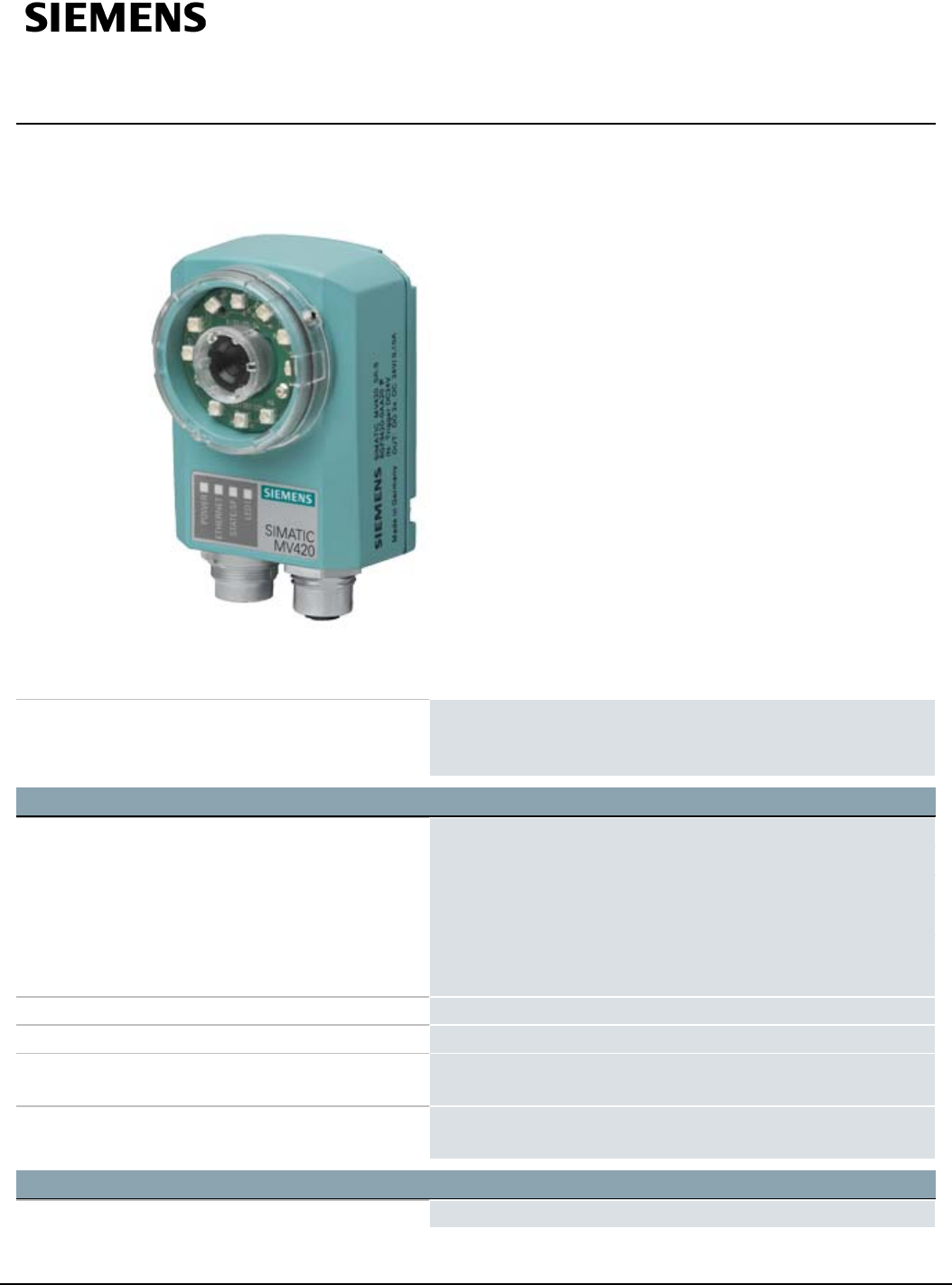

Product type designation MV420 SR-B code reader
SIMATIC MV420 SR-B; Base model Compact optical reader for 1D
and 2D codes; IP67
Suitability for operation 1D codes: Int. 2/5, Code 128, Code 39, EAN 13, EAN 8, UPC-A,
UPC-E, GS1, 2D codes: DMC, PDF417 (without: Truncated, Micro
and Macro), QR (without: Micro and Macro), Vericode
Interfaces
Type of electrical connection
● of Industrial Ethernet interface
M12, d-coded
● of the RS 422 interface
M16, 12-pin, male
● of the RS 232 interface
M16, 12-pin, male
● for supply voltage
M16, 12-pin, male
● at the digital inputs/outputs
M16, 12-pin, male
Number of digital inputs 3
Number of digital outputs 3
Digital input version 1 high-speed trigger input, 2 opto-isolated inputs (NPN, PNP
capability) optionally as output
Digital output version 1 high-speed strobe output for external lighting, 2 isolated outputs
optionally as input, short-circuit-proof, max. 100 mA
Optical data
Design of image sensor / of the camera CMOS chip, VGA (640 x 480), WVGA (752 x 480)
