Type summary
Communication card for floor level network BPS1.C2/1F
Terminal block PVX1.2PM
Communication card for Monogyr bus BPS1.C2/2M
Terminal block PVX1.2PM
Equipment combination
Process unit, system neutral BPS1... Data sheet 8414
Program card BPS1.M/E2 Data sheet 8318
Technical design
Depending on the type, COM2 communication cards provide the following functional
units:
– interface adapter to the Floor Level Network
or
– interface adapter to the Monogyr bus
The EEPROM serves to store canned data and configuration data.
Interface specifications, see "Technical data".
Mechanical design
Plug-in circuit boards, with Faston tabs to the terminal block on the connection side. The
associated terminal block is mechanically encoded allowing to connect the block only in
the correct location (II) on the process unit.

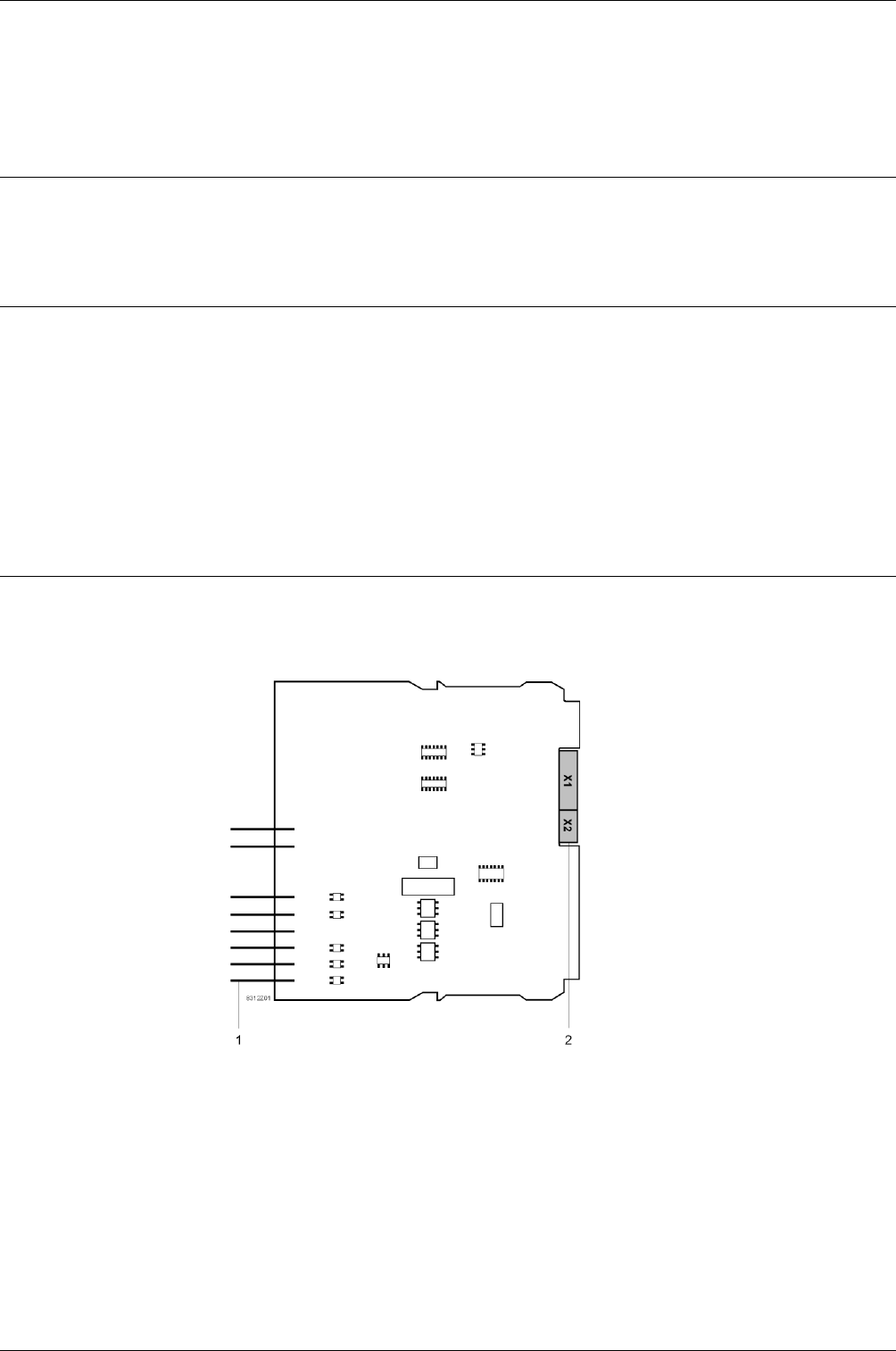

View of the
BPS1.C2/1F card
1 Plug contacts to the terminal connection block on the process unit
2 Internal plug connection to the process unit
