User Manual

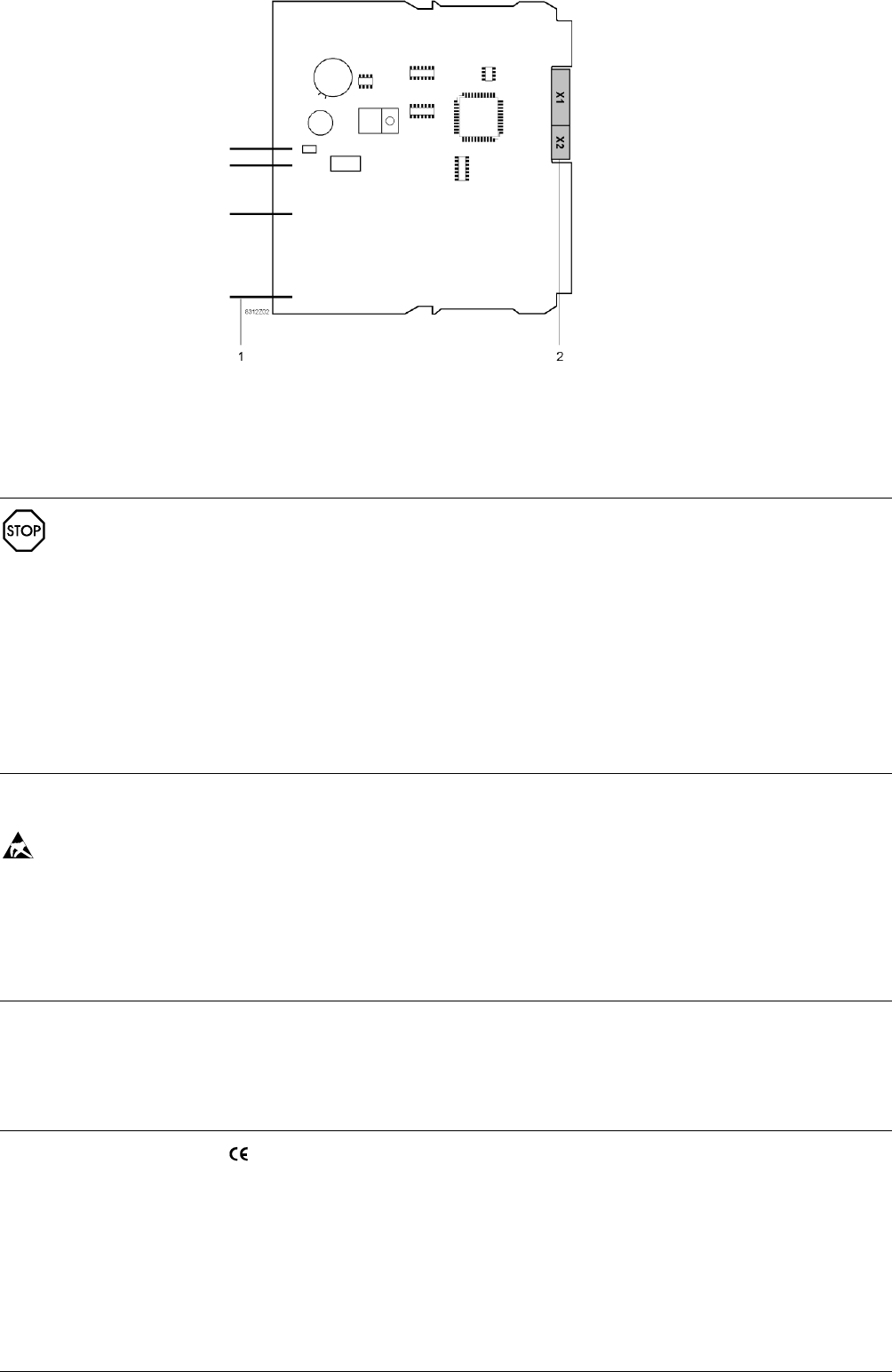

View of the
BPS1.C2/2M card
1 Plug contacts to the terminal connection block on the process unit
2 Internal plug connection to the process unit
Engineering notes
Observe the following during engineering:
• Use the cards only for applications as described in the brief description on the title
page (bold print) and in section "Use".
• The specifications in section “Technical data” apply to all connections.
• Wire the cards in accordance with section “Internal diagrams”.
• The section “Technical data” in data sheet 8301 (VISONIK Building Process Station,
overview) applies to the bus connections in an overall system.
Mounting notes
The communication cards come with a set of instructions illustrating how and where the
cards must be installed.
Do not touch any electrical contacts or components on the open unit. Electrostatic
discharges may destroy sensitive components!
When mounting the cards, apply appropriate protective measures as, for example, using
an earthed ESD-antistatic mat with wrist connection.
Commissioning notes
In order to commission and test communications, a program card must be plugged into
the VISONIK BPS.
Requirements
Technical data
General data
-conformity:
Electromagnetic compatibility 89/336/EEC
Emissions EN 50 081-1
Immunity EN 50 082-2
Weight with terminal block, no packaging materials 0.25 kg
Note
Ambient conditions and other general data of process unit PRV2 equally apply to the
cards. Refer to “Technical data” in data sheet 8411.
3/4
Siemens Building Technologies COM2 communication cards CM2N8315en
Building Automation 28-Jan-2004
