Convenient and efficient control of all
plants via touchscreen in the room
Ease of operation in high-end non-residential buildings and exclusive apart-
ment buildings – with room controller UP 204 Contouch
Energy efficiency for room automation
Room controller UP 204 Contouch offers
extensive functions that ensure effective
energy savings. Up to 18 functions can be
defined for lighting and shading, scenes,
text and alarm messages. The product
features a built-in 7-day time switch and
temperature sensor. So, rooms are hea-
ted or air conditioned at the comfort level
only during the set occupancy times or
when people are present. If a window is
opened, the room controller changes
automatically to energy- and cost-effici-
ent protection mode. Night setback redu-
ces energy usage during the night.
Using the rotary-and-push knob, two
room scenes are available that can be
individually parameterized, e.g. a central
ON and a central OFF scene. The central
OFF scene ensures that all electrical con-
sumers are switched off at the touch of a
button.
Intelligent comfort
The simple way to the perfect feel-good
climate and the desired lighting atmos-
phere: Being a high-end product, the
room controller ensures ease of opera-
tion. All setpoints, operating modes and
fan speeds can be intuitively adjusted
and selected. Self-explanatory symbols
lead to an easy-to-understand menu. And
the product’s operating philosophy is
identical with all types of plant. There are
six menu languages to choose from – ide-
ally suited for use in hotels with internati-
onal guests.

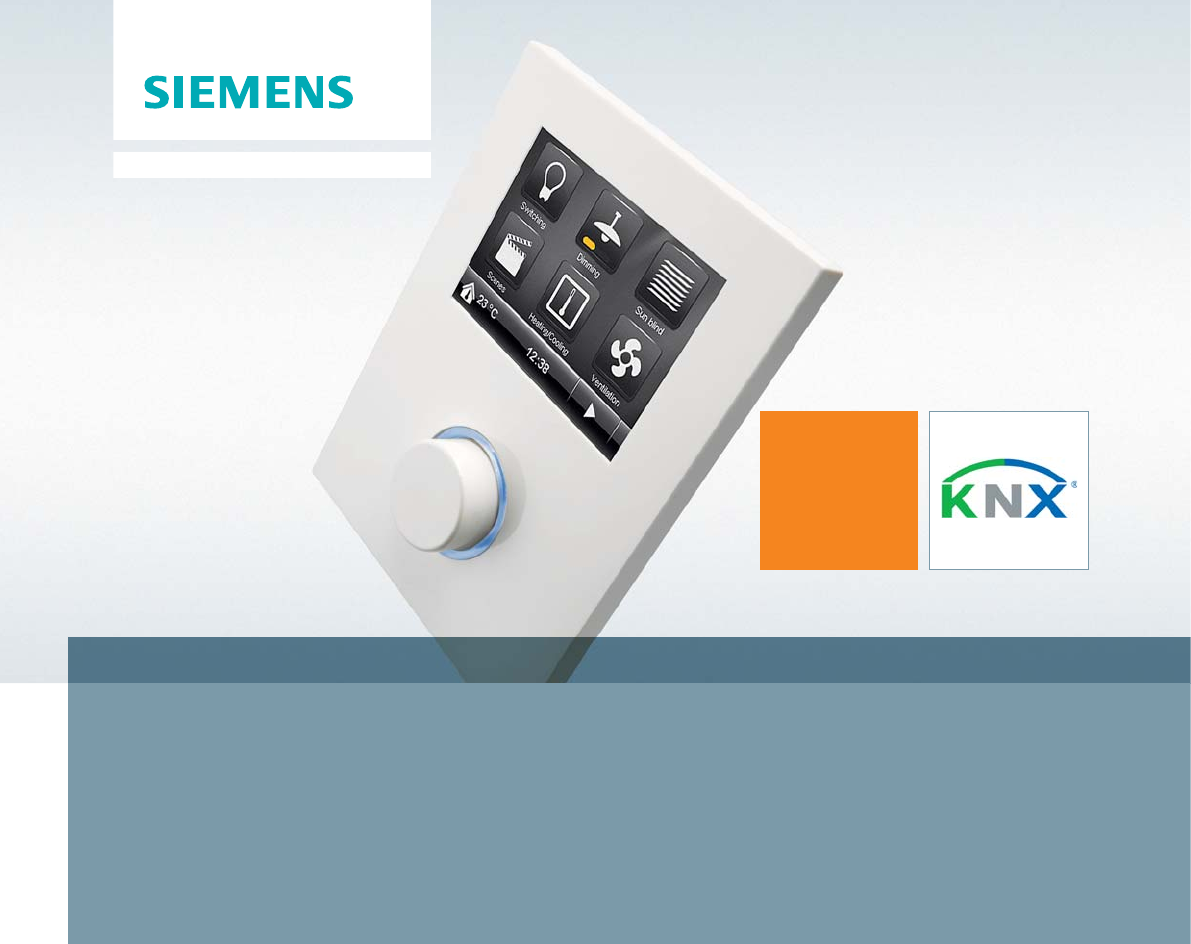

Multifunctional with touchscreen,
temperature sensor and room tem-
perature controller: room controller
UP 204 Contouch for convenient
control, display and monitoring of
lighting, shading, heating, ventila-
tion and air conditioning.
The world-
wide standard
for home and
building
control
