Selection and order data
Type Design Order no. PE (ST, SZ, M) PKG/
VPE
PG Price (€)
UP 258D31 Presence Detector WIDE 5WG1 258-2DB31
UP 258D41 Presence Detector WIDE pro 5WG1 258-2DB41
UP 258D51 Presence Detector WIDE multi 5WG1 258-2DB51
UP 258D61
Presence Detector WIDE
DualTech
5WG1 258-2DB61
AP 258E11
Surface-mounting
housing type B
5WG1 258-7EB11
S 258/12 Mounting plate 5WG1 258-8AB12
S 255/11 IR remote control 5WG1 255-7AB11
All important information at a glance

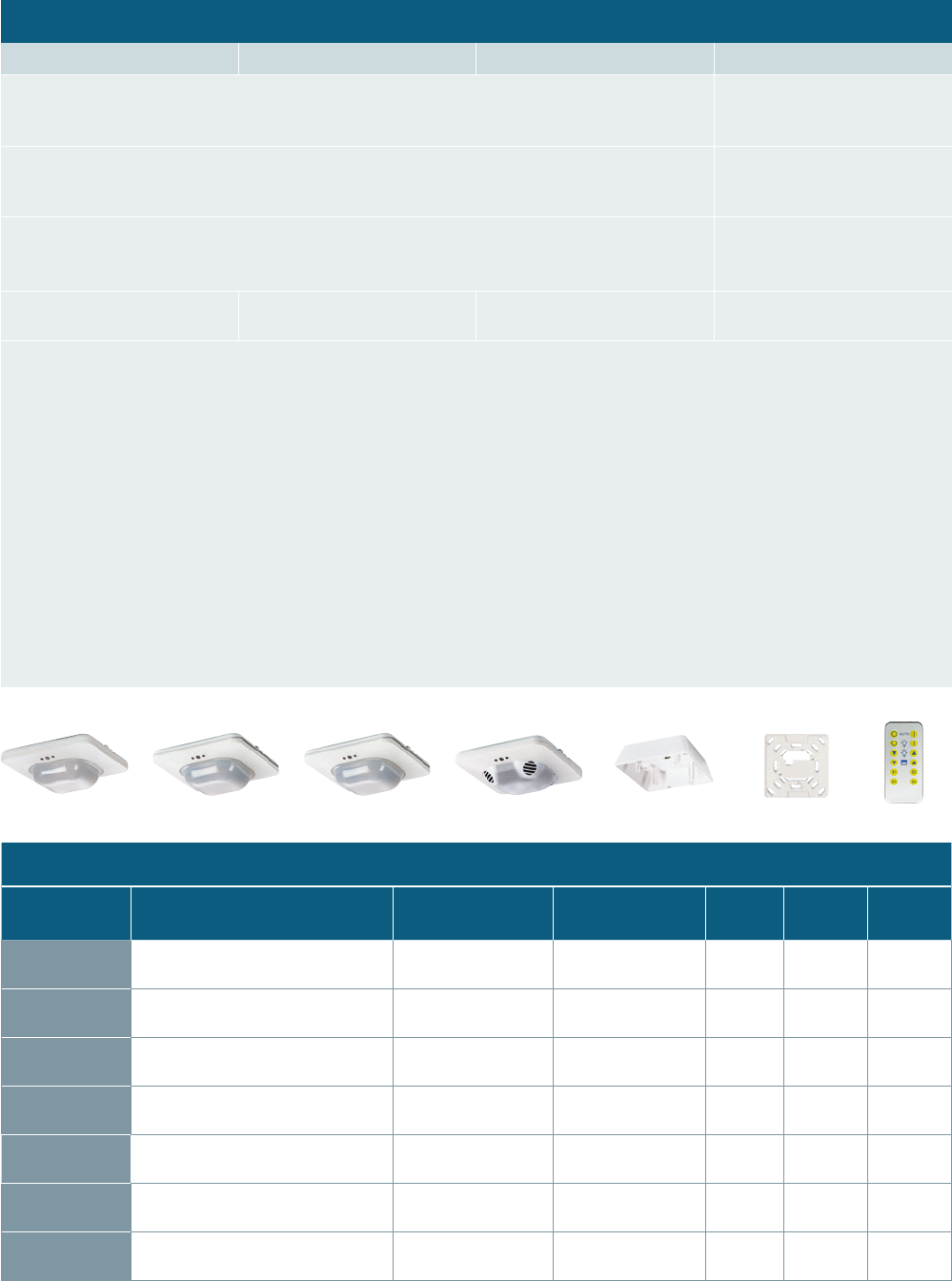

UP 258D31 UP 258D41 UP 258D51 UP 258D61 AP 258E11 S 258/12 S 255/11
Product attributes
UP 258D31 UP 258D41 UP 258D51 UP 258D61
Passive infrared detectors for ceiling installation indoors
Ultrasound for reliable
detection even behind
objects
Presence/motion detection up to 64 m² / 400 m², respectively
Tangential, presence and
radial detection up to 28 m² /
79 m²
Deactivation of individual 4 PIR sensors via parameters
With additional detection
options through PIR technol-
ogy
Measurement / controller of
relative humidity
Measurement / controller of
relative humidity and CO
2
Shared characteristics:
• Brightness and temperature measurement with multiple calibration methods
• Constant and 2-point light control
• Integrated IR receiver and IR decoder for IR remote control
• Programming button operable from the front
• Integrated bus coupler, operation of electronics via bus voltage
• Mounted to the ceiling on a flush-mounting box or in a separately ordered housing for surface mounting or on a mount-
ing plate for 4 x 4 boxes
• Presence detection for three function blocks (presence, HVAC, slave)
• Locking and output object for each function block
• Adjustable sensitivity of detection
• Integrated temperature control
• Comparators for two analog values
• Min., max and composite calculators and threshold monitoring for the measured values
• Dimensions (W x H x D) 120 x 41 x 120 mm
