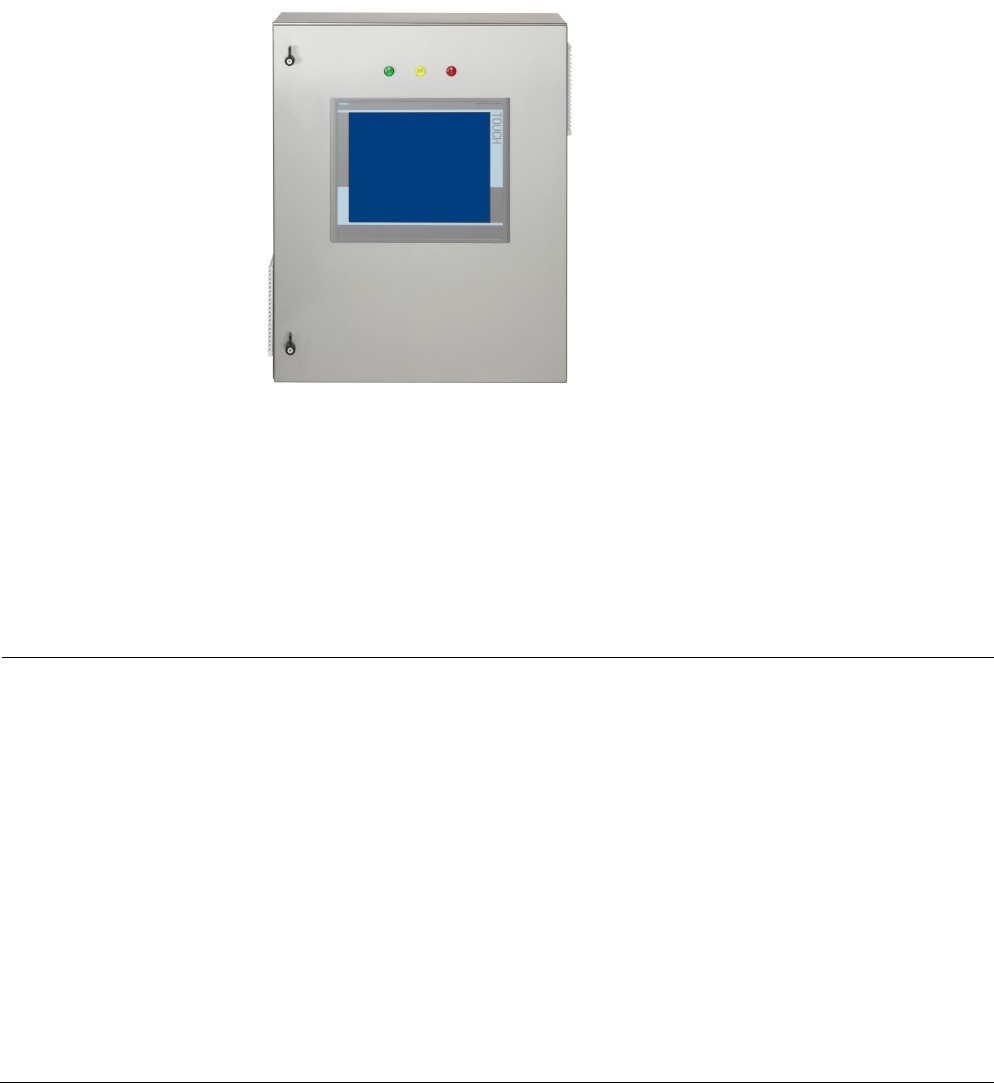

Series E

Compact Monitoring

Technology (Desigo)

HPB10...

Environmental

Monitoring Solution for regulated industry

•

Including 36

monitoring channels with preconfigured applications for

temperature, humidity, differential pressure sensors

and particle

counters.

•

Extendable up to maximum 100 channels

•

Reliable trending of all channels

•

Separated high and low warning and alarm levels for each channel

•

Configurable calibration interval for each monitored channel possible

•

On board management station based on Microsoft Windows®

Server

2008R2 and Microsoft SQL® Server 2008

•

Intuitive operation, supervision and reporting

•

Integrated backup and archiving of GxP data on separate hard disk

•

Comprehensive data security functions to comply with 21 CFR Part 11

•

Complete validation documentation and test procedures

•

Secure and easy operation locally or remotely using WEB or

Remote

Desktop functionality

•

Multiple simultaneous users with up to 3 Remote Desktop clients or 10

CM1N6520en_04

27.02.2015

Building Technologies

Summary of content (12 pages)

PAGE 1
s 6 520 Series E Compact Monitoring Technology (Desigo) HPB10... Environmental Monitoring Solution for regulated industry • • • • • • • • • • • • CM1N6520en_04 27.02.2015 Including 36 monitoring channels with preconfigured applications for temperature, humidity, differential pressure sensors and particle counters.
PAGE 2
Overview The life science industries have changed the structure on how they validate BAC systems. Today, the well established risk-based approach leads customers to install a stand-alone system to monitor all critical parameters, in addition to the BACS system. The CMT solution is an environmental monitoring system designed to monitor just such critical parameters.
PAGE 3
Type summary Reference numbers Compact monitoring technology (CMT) HPB10.1 can have one or all of the following options:  uninterruptable power supply HPB10-UPS  manageable switch HPB10-MES  video remote extension HPB10-KVM Compact monitoring technology (CMT) HPB10-TP with door mounted 19” Touch Panel can have one or all of the following options:  uninterruptable power supply HPB10-UPS  manageable switch HPB10-MES  video remote extension HPB10-KVM Production Series Document Nr. CM1N6520en_01.
PAGE 4
Power fault • • To maintain reliable normal operation (e.g. trend logging, alarm handling, reporting) the CMT restarts automatically after a power failure. By selecting the optional uninterruptable power supply (HPB10-UPS), it is possible to maintain normal monitoring and operation during a short mains power outage.
PAGE 5
Components 1 2 3 4 5* 6 7 8 9* 10 11 12 13 14 15 16 17* 18 19a 19b 20 Device DDC controller Power supply module 1.
PAGE 6
Normal operating Warning low and high limit of the sensors, door open - occurs Warning low and high limit of the sensors, door open acknowledge Warning disappears, door contact closed --> normal operating Alarm low and high limit of the sensors - occurs Alarm low and high limit of the sensors - acknowledge Alarm disappears and reset carried out --> normal operating PX automation station and or TX-IO module damaged Warning x days before calibration Warning when calibration is due Behavior after voltage failu
PAGE 7
 Warning! Unauthorized opening and improper repairs on the devices may result in substantial damage to equipment or endanger the user. Desigo PXC100-E.D Alkaline batteries usually have a life span of at least four years. After the “Battery low” event from the Desigo PXC the battery still has a residual life of a few more days. Lithium batteries usually have a life span of at least 10 years.
PAGE 8
Technical data Cabinet information Material Stainless steel 1.4301 (AISI 1304), PU sealing; for further information see datasheet Rittal AE1016600 Protection class IP55 EN 60529 EC conformity Electromagnetic compatibility (EMC) Low voltage (LVD) Electromagnetic compatibility Emission class EN 61326 [2006] HPB10.1 HPB10-TP Immunity EN 6100-6-2 [2005] HBP10.
PAGE 9
Inputs/outputs For all analog field devices and the associated wiring, an alarm signal is initiated in the event of an interruption, short circuit, failure of the I/O module or violation of range limits. All digital devices used to signal alarms transmit an active signal (DC 24 V, NO) when no alarm condition is present. The status "inactive" indicates the presence of an alarm condition. All digital inputs/outputs are also electrically isolated to protect the equipment from damage.
PAGE 10
Plant Viewer Measured values, setpoints, operating modes and alarms are displayed on the screen in real-time and updated continuously Changes are indicated by the object symbol or by the movement, color, shape or text of the values affected Alarm Viewer Display the associated alarm property sheet with detailed data point information View, acknowledge, and reset single or multiple alarms Object-oriented navigation to other application such as Plant Viewer and Log Viewer Log Viewer (= Audit trail) Log Viewer
PAGE 11
Special alarms General alarms like sensor fault, short circuits and open door Communication BACnet / IP Communication is via Ethernet with the international standard BACnet protocol. Capacity Internal hard disk 160 GB SSD External hard disk >100 GB The hardware is designed to allow for a minimum of 3 months of data logging in the databases.
PAGE 12
Dimensions Dimensions in mm 12/12 Siemens Building Technologies HPB10... – Compact Monitoring Technology (Desigo) CM1N6520en_04 27.02.
