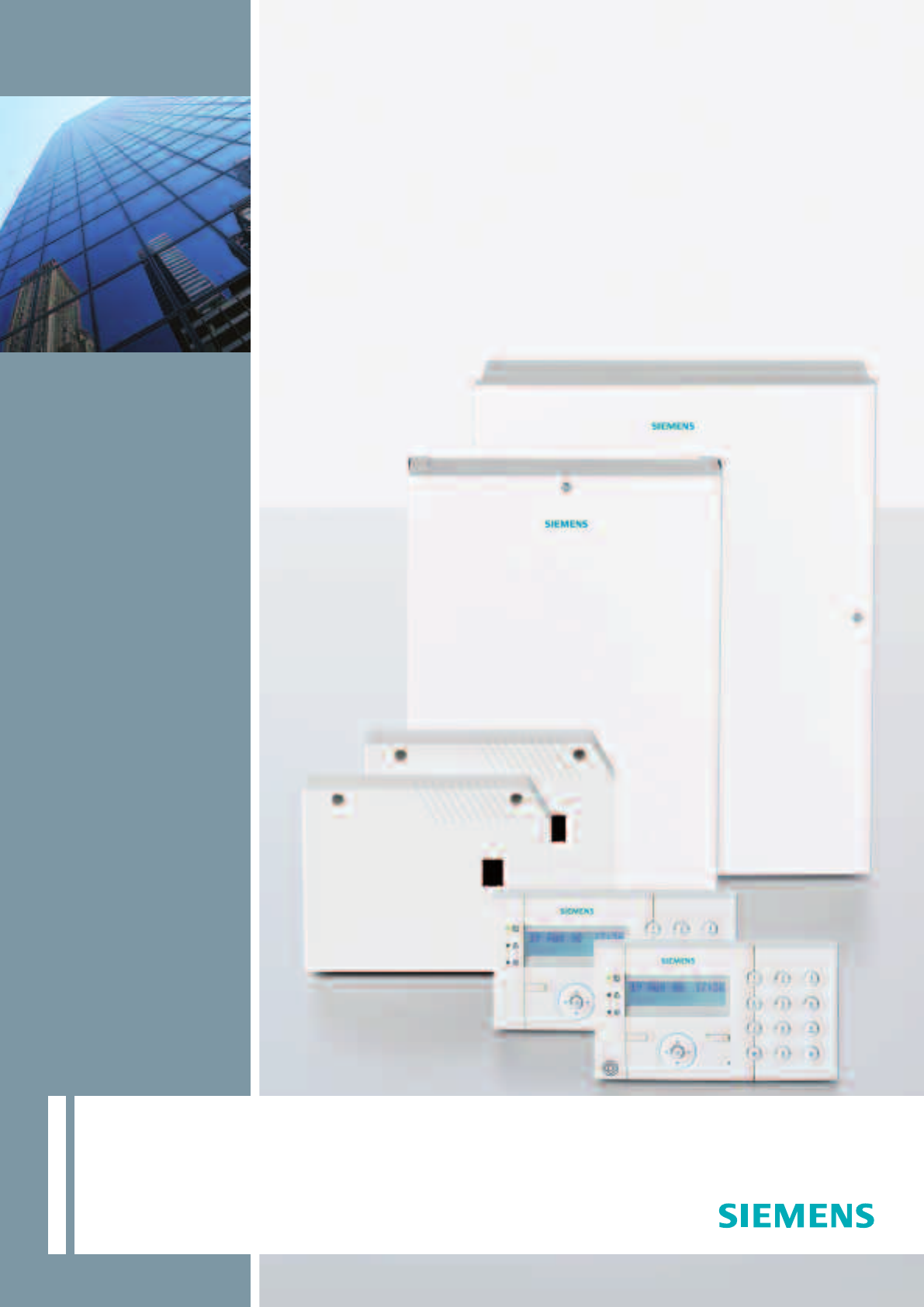

Intrusion Intrunet SPC series – advanced security for a connected world Answers for infrastructure.
Security investment protection at all levels The SPC series combine intrusion and access functionality in one system with a cost-effective design and installation concept, and offer unmatched flexibility and scalability up to 512 wired zones/120 wireless zones and 32 doors. All SPC controllers are designed to meet EN 50131 standards, offering versatile operation and alarm management functionality.
Planning for the future with scalable SPC series intruder alarm systems A modular range for all applications Scalable up to 512 wired or wireless zones, the modular SPC series facilitate the planning and installation phases thanks to common keypads, modules and expanders, which can be mixed and matched to fit applications of all sizes and allow the systems to grow with the customer requirements.
Versatile operation and comprehensive alarm management functionality Pre-defined operation modes The SPC series can accommodate two distinct modes of intruder alarm operation, both of which support multiple areas and the SPC’s various alarm modes (UNSET, SET, PARTSET, etc.): the Domestic mode is better suited for residential and small commercial installations with a small to moderate number of alarm zones.
Conditional programming ensures appropriate responses are given to alarms, on site and remotely. Direct alarm management The type of alarms generated by the SPC systems can vary depending on the type of zone that triggered the alarm activation (Each zone type will activate its own unique output type – an internal flag or indicator – that can then be logged or assigned to a physical output for activation of a specific device).
Simple system planning and configuration High-performance field bus All the keypads and expanders on an SPC system are connected via the X-BUS, a high-speed and high-length field bus. The X-BUS can be wired either in a standard spur configuration (open loop) or – for high fault tolerance – in a ring (closed loop). The ring topology protects the system against possible communication faults by isolating the faulty branch in the ring, leaving the rest of the system unaffected.
Intrunet SPC6000 System example Alarm signalling Motion detection On-site services Manage/control/configure Wired sensors Wireless sensors On-site connection via: Fast Programmer System SPC6000 expander control panel (8 inputs/ 2 outputs) SPC Pro software On-board Web server System expander (Smart Power System Supply) expander Wireless (8 outputs) expander RS232 USB Max.
Comprehensive range of controllers with remote connectivity over all communication channels Controllers and modules – flexible connectivity and configuration The SPC controllers cover from 8 to 512 wired/120 wireless zones, and are available in metallic or with hinged cabinets that are designed to meet EN 50131 Grade 2 or 3. All modules are pluggable to allow any combination to be used.
Remote connection to an Alarm Receiving Centre on demand or following events redundancy (ring topology), ensuring minimal door operation waiting time and high reliability. PSTN module The PSTN module is compatible with the complete range of SPC panels and plugs directly onto the main PCB removing the need for any additional wiring. The modem can take control of the line and communicates with a central station using common format protocols (SIA, Contact ID, etc).
The keypads offer an intuitive programming and user interface The range of expanders covers all security requirements The smart PSU provides a local power source to security devices anywhere on the field bus Keypads and expanders – ultimate control and system performance Wired and wireless LCD keypads The SPC keypads provide an easy interface to locally control SPC systems: – SPCK420: wired LCD keypad – SPCK421: wired LCD keypad with card reader (set/unset) – SPCK422: wired LCD keypad with integrated wir
Technical overviews Controllers Hard-wired zones (max.) Wireless zones (max.) Programmable outputs (max.) Number of areas (max.) SPC4120 SPC5220 SPC5230 SPC6320 SPC6330 8 to 32 8 to 128 8 to 512 32 120 120 6 to 30 6 to 128 6 to 512 4 16 32 Number of doors (max.) 16 entry-exit/16 entry 32 entry-exit/64 entry 32 256 512 Field bus 1 X-BUS interface (1 spur) 2 X-BUS interfaces (2 spurs or 1 loop) 2 X-BUS interfaces (2 spurs or 1 loop) X-BUS devices (max.
Technical overviews Expanders Type SPCE650 SPCE450 SPCW130 SPCA210 SPCP332 SPCP333 Expander with 8 inputs/2 outputs Expander with 8 outputs Wireless receiver expander 2-door expander Smart PSU (7 AH) with I/O-expander Smart PSU (17 AH) with I/O-expander 4 8 8 2 2 2 Supervised alarm zones 8 Programmable outputs 2 8 2 (Wiegand 26 bit/ Clock&Data) Card reader 1 entry/exit or 2 entry Door capacity Frequency 868 MHz Radio module SiWay RF receiver Operating voltage Current consump
Technical overviews Remote/on-site programming and operation Type Availability Key functionality SPCX410 SPCS310 SPC Web server SPCS510 SPC Fast Programmer SPC Pro programming software On-board Web server SPC Com alarm receiving software SPC4000 SPC5000 SPC6000 SPC4000 SPC5000 SPC6000 SPC5000 SPC6000 SPC6000 – Save/back-up site configurations (store up to 100 configuration files) Common engineering tool for SPC series for configuration, commissioning and maintenance: – Authenticated access
