CE1N2111en--_-b

2020-05-11

Smart Infrastructure

111

EN 215-1

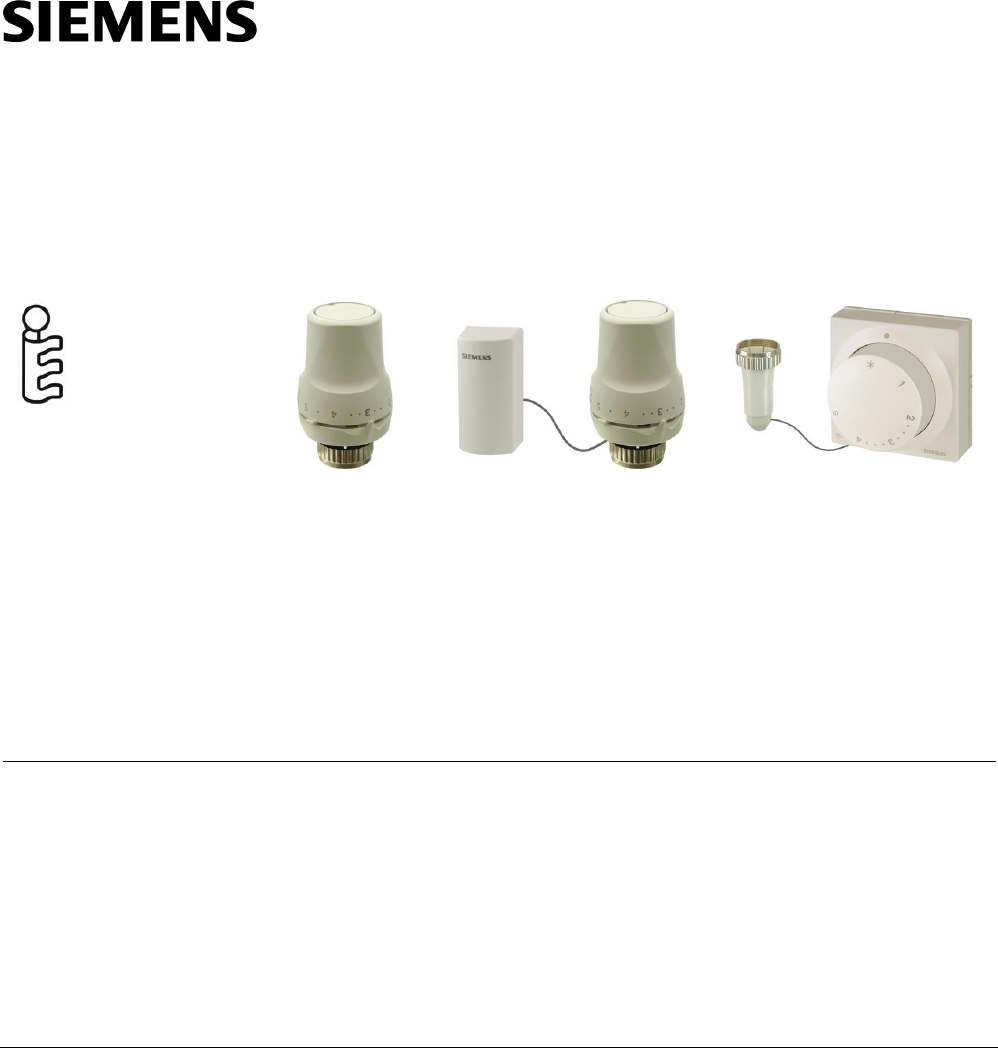

RTN51.. RTN71 with remote sensor RTN81 with remote adjuster

ACVATIX

Thermostatic Actuators

RTN51..

RTN71

RTN81

for radiator valves VDN.., VEN.., VUN.., VPD.. and VPE..

· Self-acting, without auxiliary power

· High-quality fluid-filled sensor with fast acquisition of room temperature

changes

· Direct mounting with union nut, no tools required

· Robust construction, maintenance-free, noiseless operation

· Protection against dismantling (optional)

· RTN51.. white (matt or glossy)

Use

· For use with Siemens radiator valves type VDN.., VEN.. and VUN..

· For use with Siemens MiniCombiValves (MCV) type VPD.. and VPE..

· For radiator valves supplied by Heimeier, Cazzaniga, Oventrop M30 x 1.5,

Honeywell-Braukmann, MNG, Junkers and Beulco new (all without adapter)

· For radiator valves with actuators secured with an M30 x 1.5 union nut, nominal

closing dimension 11.6 ± 0.3 mm and nominal stroke 1.5 mm (without adapter)

· With the appropriate AV adapters, the actuators can be used with valves from other

manufacturers (refer to "Type summary / Accessories")

Summary of content (8 pages)

PAGE 1
2 111 EN 215-1 RTN51.. RTN71 with remote sensor RTN81 with remote adjuster ACVATIXTM Thermostatic Actuators RTN51.. RTN71 RTN81 for radiator valves VDN.., VEN.., VUN.., VPD.. and VPE.. · Self-acting, without auxiliary power · High-quality fluid-filled sensor with fast acquisition of room temperature changes · Direct mounting with union nut, no tools required · Robust construction, maintenance-free, noiseless operation · Protection against dismantling (optional) · RTN51..
PAGE 2
Type summary Accessories Type reference Description RTN51 RAL 9016, matt RTN51G RAL 9016, glossy RTN71 Version with remote sensor RTN81 Version with remote adjuster Adapter type For valve makes Adapter type For valve makes AV521) Comap AV57 Herz AV53 Danfoss RA-N (RA2000) AV58 Oventrop < 2002 1) AV54 Danfoss RAVL AV59 Vaillant AV55 Danfoss RAV AV60 TA < 2002 AV61 MMA Markaryd AV56 Giacomini 1) While stocks last Type reference Description ATN2 Fitting to prevent dismantl
PAGE 3
This design allows the radiator valve to be continuously operated, thus achieving smooth regulation of the flow of heating water to the radiator, resulting in a constant room temperature in accordance with the room temperature setpoint. RTN71 RTN51..
PAGE 4
Setting minimum limitation Mounting and installation notes Important: 3 3 3 4 4 2111Z36 4 When mounting the actuator to the valve, ensure that valve and actuator form a right angle. 5 For that, select scale number 5 and ensure that the actuator rests correctly. Acvatix TM 2111Z38 RTN5 1 Then, tighten the actuator correctly. 4 2111Z35 2111Z34 3 The sensing element of the thermostatic actuator must always be able to acquire the temperature of circulating room air.
PAGE 5
2143Z02 2111Z03 The actuator must not be fitted in the upright position to ensure that measurement of the room air will not be affected by rising air from the hot water pipe. Mounting Instructions are printed on the package. RTN71 Version with remote sensing element and capillary tube This type of actuator is for use on applications where the criteria of the RTN51.. standard versions are not satisfied. This actuator can be fitted in any position.
PAGE 6
Repair The actuators, sensors and remote adjusters cannot be repaired. The complete units must be replaced. Disposal The device must not be disposed of together with domestic waste. Legislation may demand special handling of certain components, or it may be sensible from an ecological point of view. Current local legislation must be observed. Warranty Application-related technical data are only warranted when used in connection with the valves listed under "Equipment combinations" (page 2).
PAGE 7
Dimensions Dimensions in mm RTN51.. Position * 3 5 L1 84.9 87.6 89.5 RTN71 L2 11.5 14.2 16.1 RTN81 Revision numbers Product number Valid from rev. no. Product number Valid from rev. no. RTN51 ..B RTN71 ..B RTN51G ..B RTN81 ..
PAGE 8
Issued by Siemens Switzerland Ltd Smart Infrastructure Global Headquarters Theilerstrasse 1a CH-6300 Zug Tel. +41 58 724 2424 www.siemens.com/buildingtechnologies © Siemens Switzerland Ltd, 2020 Technical specifications and availability subject to change without notice.
