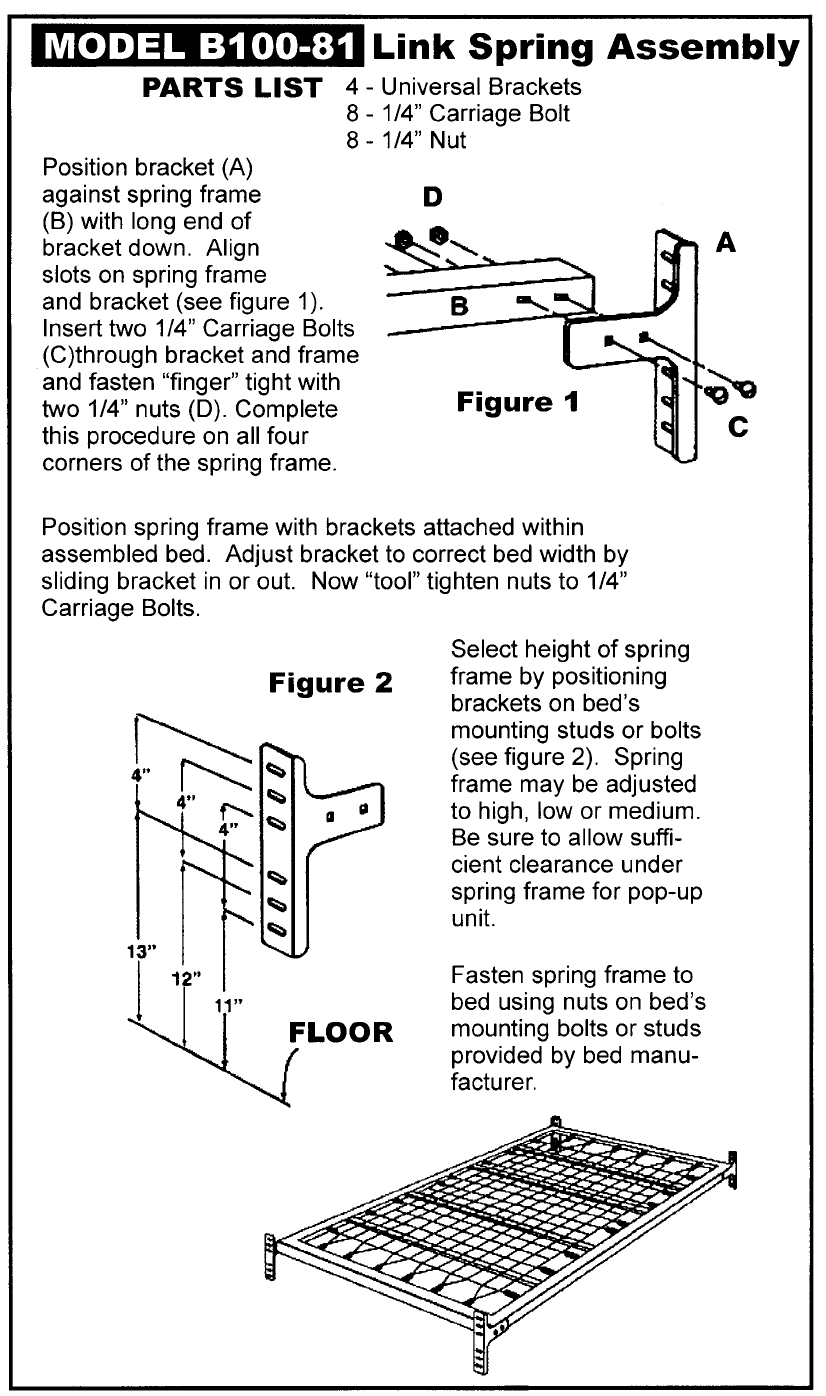

Twin Day Bed Foundation Assembly

Il'i[l] I]:t ~ :i(III~:il Link Spring Assembly
PARTS LIST 4 - Universal Brackets
8 - 1/4" Carriage Bolt
8 - 1/4" Nut
Position bracket (A)
against spring frame D
(B) with long end of
bracket down. Align A
slots on spring frame
and bracket (see figure 1). B
Insert two 1/4" Carriage Bolts
(C)through bracket and frame
and fasten "finger" tight with. ~
two 1/4" nuts (0). Complete Figure 1
this procedure on all four C
corners of the spring frame.
Position spring frame with brackets attached within
assembled bed. Adjust bracket to correct bed width by
sliding bracket in or out. Now "tool" tighten nuts to 1/4"
Carriage Bolts.
Select height of spring
Figure 2 frame by positioning
brackets on bed's
mounting studs or bolts
(see figure 2). Spring
frame may be adjusted
to high, low or medium.
Be sure to allow suffi-
cient clearance under
spring frame for pop-up
unit.
13"
l 12" Fasten spring frame to
I 11" bed using nuts on bed's
~ LOOR mounting bolts or studs
provided by bed manu-
facturer.
