Specification Sheet

1.800.221.3379

REVISED 01/07/2020

FEATURES

Shape: Square

Assembly Required: No

Installation Type: Wall Mount

Shower Head Spray: Single Function (Full Spray)

Shower Arm Included: Yes

Shower Head Swivel: Yes

Shower Head Spray: Rainfall

Escutcheon Included

Easy Clean Rubber Nozzles

Brass Ball Joint & Threaded Connection

Easy Installation

Shower Head Flow Rate: 1.8 gpm (6.8L/min) max @ 80 psi

SIGNATURE HARDWARE Lifetime Warranty

See website for detailed warranty information.

CONTENTS

SHOWER HEAD

SHOWER ARM

PAGE 2

PAGE 3

..................

RIGI

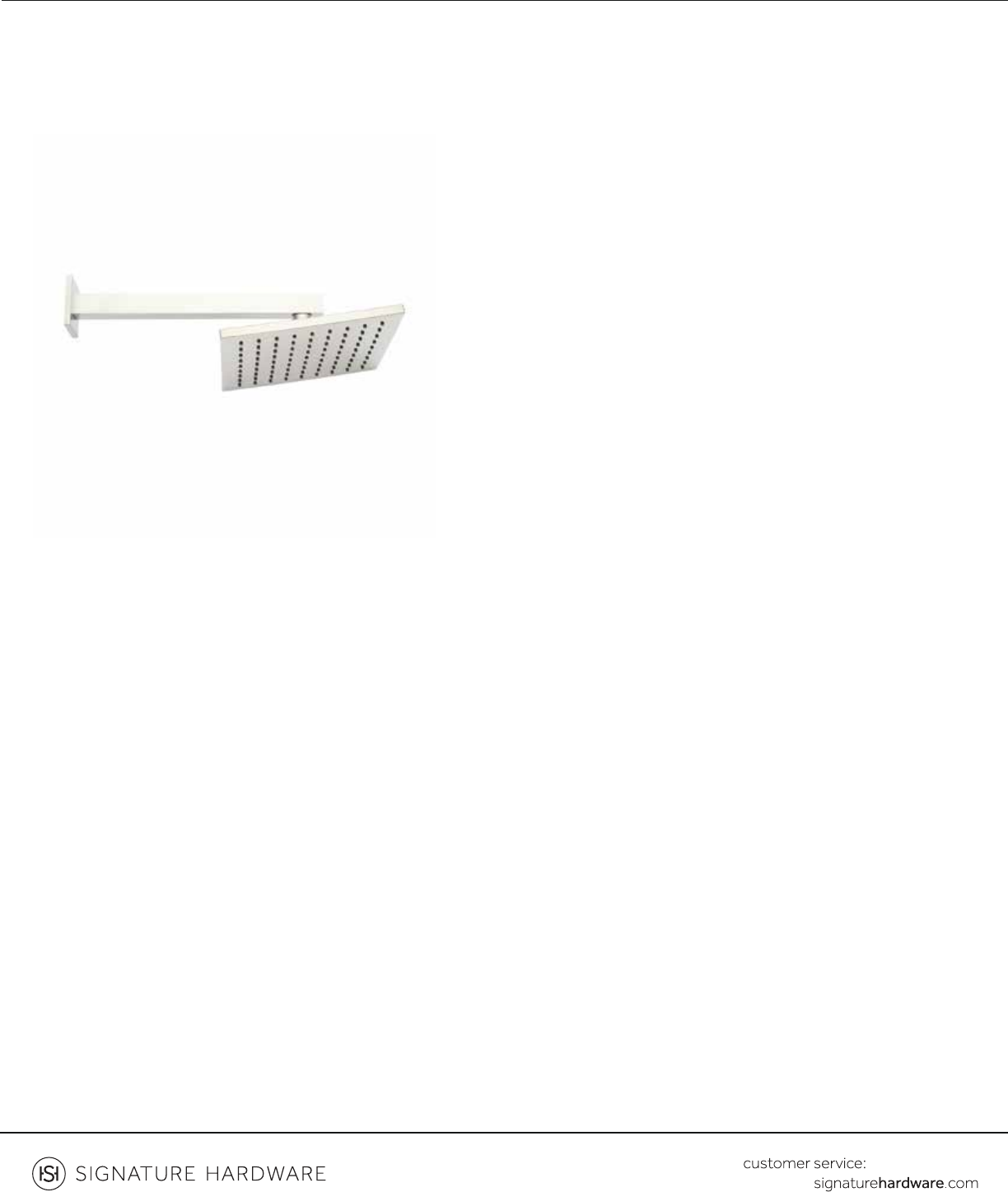

RAINFALL SHOWER HEAD WITH EXTENDED WALL-MOUNT SHOWER ARM

SKU: 949053

PAGE 1
RIGI RAINFALL SHOWER HEAD WITH EXTENDED WALL-MOUNT SHOWER ARM SKU: 949053 FEATURES Shape: Square Assembly Required: No Installation Type: Wall Mount Shower Head Spray: Single Function (Full Spray) Shower Arm Included: Yes Shower Head Swivel: Yes Shower Head Spray: Rainfall Escutcheon Included Easy Clean Rubber Nozzles Brass Ball Joint & Threaded Connection Easy Installation Shower Head Flow Rate: 1.8 gpm (6.
PAGE 2
RIGI RAINFALL SHOWER HEAD SKU: 949053 1/2" (13 mm) 2-1/16" (52 mm) 7-7/8" (200 mm) FEATURES Material: ABS Length: 7-7/8" Width: 7-7/8" Height: 2-1/16" IPS: 1/2" CODES/STANDARDS cUPC ASME A112.18.1/CSA 125.1 WaterSense Massachusetts Accepted All dimensions and specifications are nominal and may vary. Use actual products for accuracy in critical situations. SIGNATURE HARDWARE LIFETIME WARRANTY See website for warranty information PAGE 2 Code: SHSB3020BN/SHSB3020CP 1.800.221.
PAGE 3
RIGI EXTENDED WALL-MOUNT SHOWER ARM SKU: 949053 12" 18" (305 mm) - or - (457 mm) 1/4" (6 mm) 2-3/8" (60 mm) 1" (25 mm) 9/16" (14 mm) 1/2" (13 mm) MALE IPS Connection 2-3/8" (60 mm) 1" (25mm) 1" 2-3/8" (60 mm) (25 mm) FEATURES Material: Brass Base Plate Length: 2-3/8" Base Plate Width: 2-3/8" IPS: 1/2" All dimensions and specifications are nominal and may vary. Use actual products for accuracy in critical situations.
