Installation manual
Table Of Contents
19
1

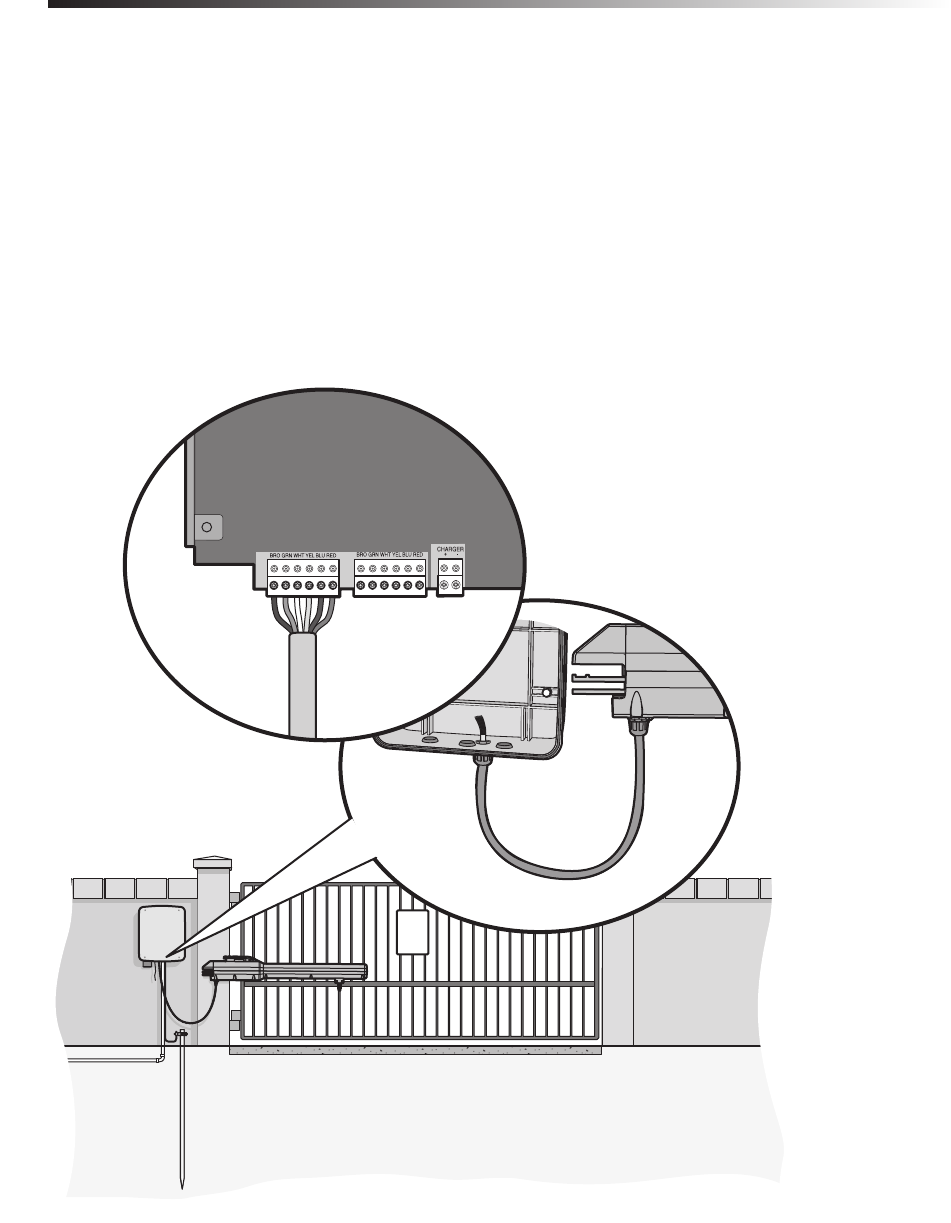

Insert the operator cable through the watertight connector (provided) as shown.
2
Extend the operator cable and wires to the Gate 1 connector and connect
as shown.
3
Tighten watertight connector nut.
WIRE THE OPERATOR ARM TO THE CONTROL BOARD
If installing one operator, proceed to page 22. If installing two operators, continue to the next page.
WIRE THE OPERATOR TO THE CONTROL BOARD
WIRING
!
GATE 1
GATE 2
