4.1 Point-to-Point Network

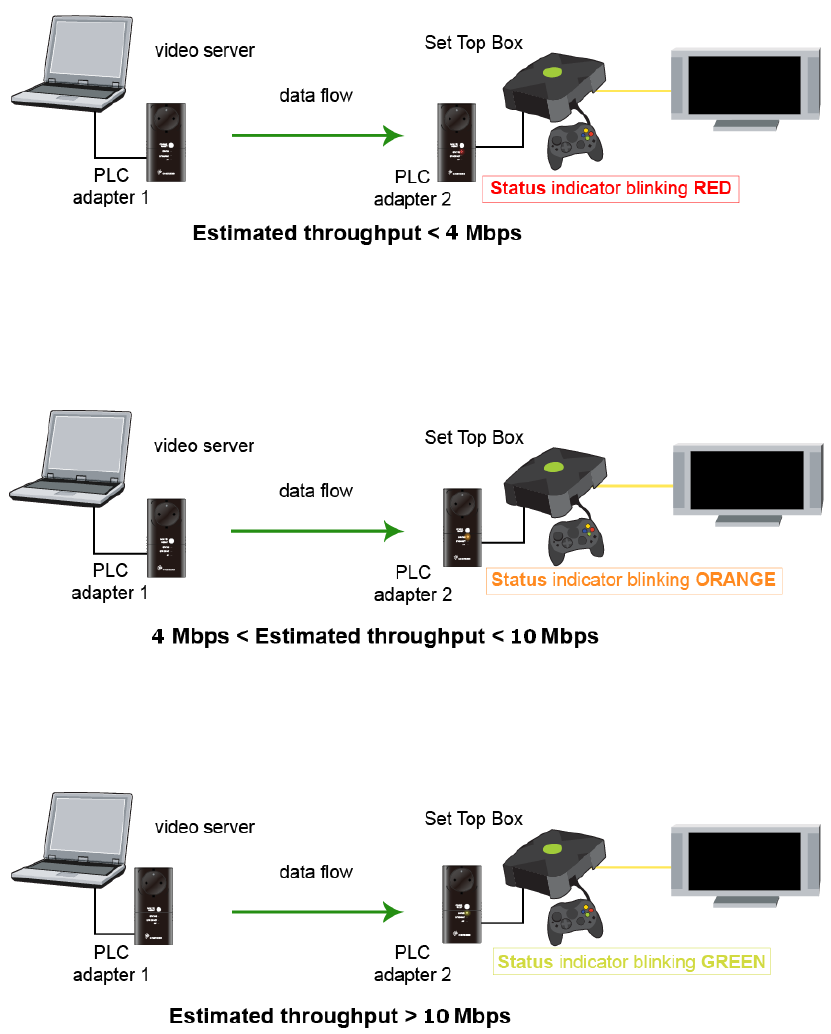

• CASE 1: Estimated throughput is less than 4 Mbps. The PLC channel is not
able to transmit an SDTV channel. The STATUS LED will be RED as shown
in the following figure:
• CASE 2: Estimated throughput is greater than 4 Mbps but less than 10
Mbps. The PLC channel is able to transmit an SDTV channel, but not two
SDTV channels simultaneously or one HDTV channel. The STATUS LED will
be ORANGE as shown in the following figure:
• CASE 3: Estimated throughput is greater than 10 Mbps. The PLC channel
is able to play at least two SDTV channels or 1 HDTV. The STATUS LED will
be GREEN as shown here:
