VLAN STATUS

With this function an 802.1Q VLAN Tag is added to the data packet header. This

enables a physical LAN to be divided into several discrete virtual LANs. Data

packets are given priority based upon their VLAN Tag and VLAN Priority settings.

Note, the PowerGrid 9020 does not filter data packets; it merely tags them.

Field

Description

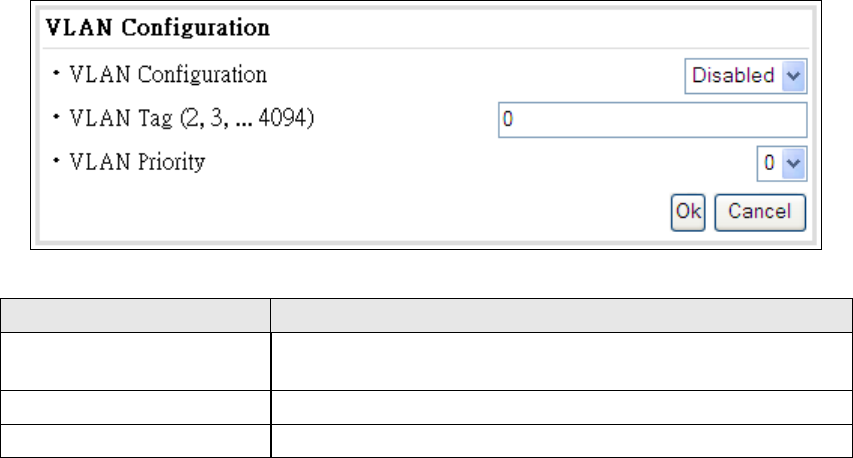

VLAN Configuration

Enabled = VLAN tagging on

Disabled = VLAN tagging off

VLAN Tag

Choose a number in the range of 2 to 4094.

VLAN Priority

Choose a number between 0 and 7 (highest priority).

PRIORITY STATUS

Improve the end-user experience by prioritizing audio, video and voice traffic and

optimizing the way shared network resources are allocated among applications.
