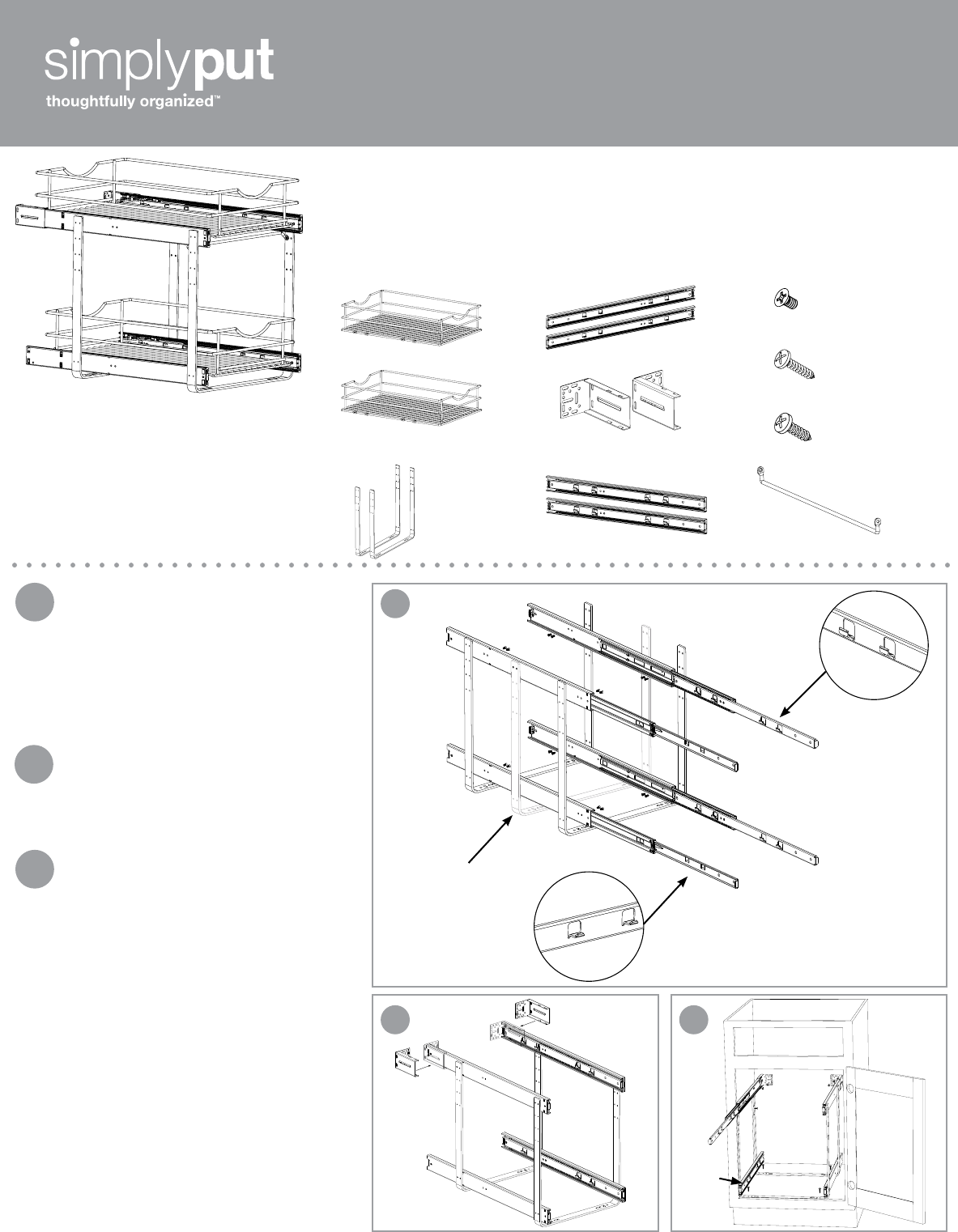

Operating Guide

Double-tier Pullout Baskets

Installation Instructions

Inspect all parts and read all instructions prior to beginning assembly and installation.

SP-DBMUBSC-11-FN

SP-DBMUBSC-14-FN

SP-DBMUBSC-17-FN

SP-DBMUBSC-20-FN

Fully extend slides. Mount 1 – left hand

slide and 1 – right hand slide to the bottom

slide mounting holes in the upright brackets

using 8 – #6-32 X 5/16" screws. Repeat this

process for upper slides (1).

NOTE: There are 4 upper basket mounting

locations. Install upper slides at desired height.

Attach rear slide brackets to upper slides

by pushing bracket firmly onto slides (2).

NOTE: No rear slide brackets are needed

for lower slides.

Place slide and upright bracket assembly

into cabinet so that the front edges of the

slides are flush with the front of the cabinet

opening on the opposite side of cabinet door

hinges. Extend the upper drawer slide.

Tools Required

• Phillips Head Screwdriver

• Tape Measure

Right Slide

Left Slide

Optional for 1/2

shelf installation.

Product Assemblies

Upper Basket (1)

Lower Basket (1)

Upright Brackets (2)

Left Hand Slides (2)

Rear Slide Brackets (2)

Right Hand Slides (2)

#6-32 x 5/16" Screws (18)

#8 x 3/4" Wood Screws (4)

#6 x 1/2" Wood Screws (7)

Cross-Brace (1)

Parts Included

Flush

PAGE 1
Double-tier Pullout Baskets Installation Instructions Inspect all parts and read all instructions prior to beginning assembly and installation.
PAGE 2
4 Push the slide back so that the mounting hole is accessible. Install 1 – #6 x 1/2" wood screw (4). 5 Ensure that upright brackets are parallel to the front of the cabinet then attach to the base of the cabinet with 4 – #8 x 3/4" wood screws (5A). 4 NOTE: Screws can be placed in slotted holes for future adjustment or in round holes to ensure the unit does not move. 6 Push rear slide brackets back until they are against the back of the cabinet.
PAGE 3
CESTAS MULTIUSOS DE DOS NIVELES Instrucciones de Instalación Inspeccione todas las piezas y lea todas las instrucciones antes de comenzar con el armado y la instalación.
PAGE 4
Empuje la guía deslizante hacia atrás, de manera que pueda acceder al orificio de montaje. Coloque 1 tornillo para madera #6 x 12.7 mm (1/2") (4). 5 Asegúrese de que los soportes verticales están paralelos a la parte frontal del armario cuando los una a la base del armario con 4 tornillos para madera #8 x 19 mm (3/4") (5A). NOTA: Los tornillos pueden colocarse en los orificios ranurados para futuros ajustes, o en los orificios redondos para asegurarse de que la unidad no se mueve.
