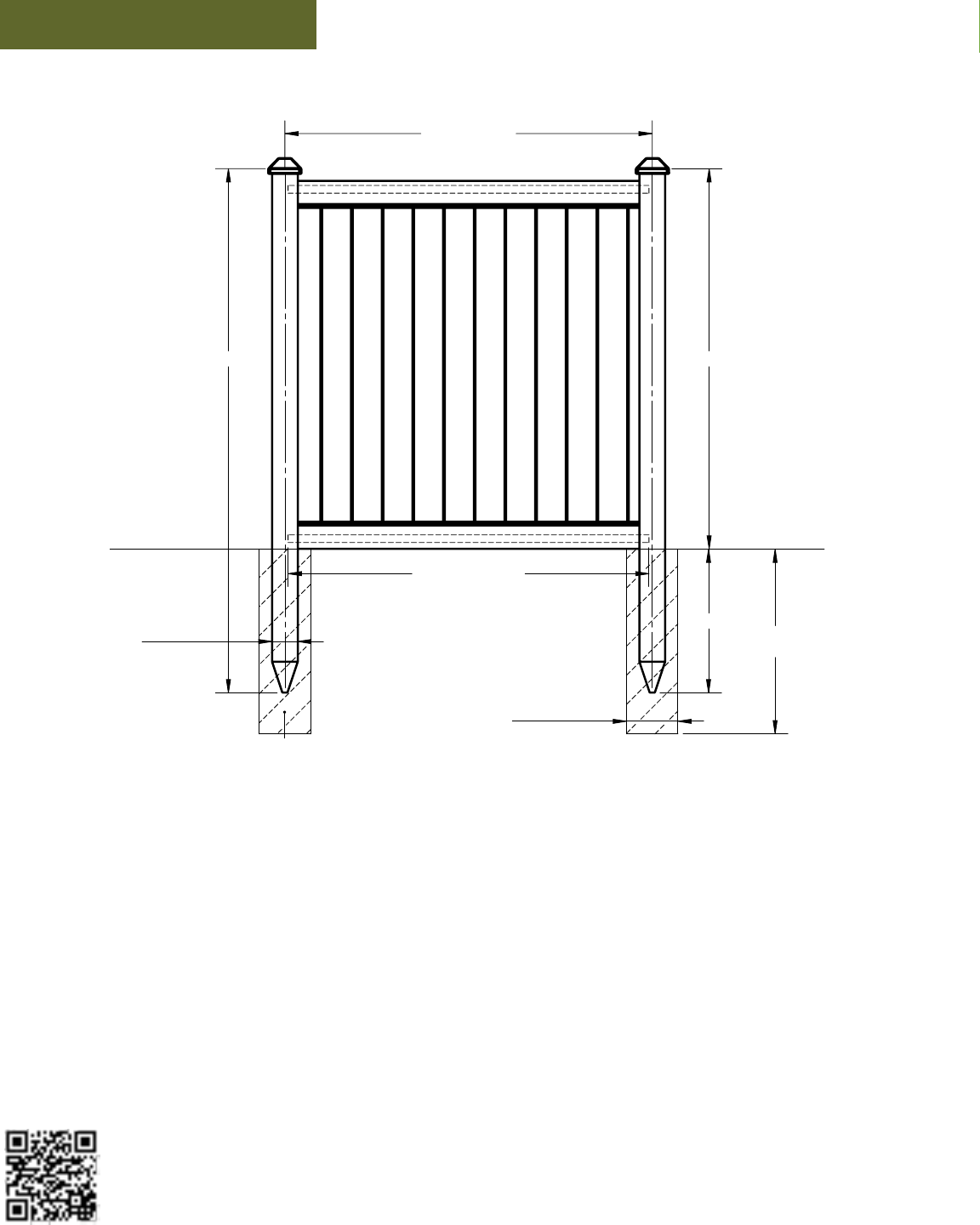

Installation Guide
6.50"
3"
Inside
5"
71.5
" Max
Post Centers
102
"
5
" X 5"
Post
74
"
70.25
"
Stiffener Length
30" -
36
"
Hole Depth
10
" - 12"
28
"
Minimum top of
post to ground
level
Approximate
Post Height
Ground Level
Ground Level
1.5" X 1.5" 18 Guage Galvanized Steel Stiffener
ASTM A513
Hole Diameter
6'H X 6'W Panel
2
"
Good Neighbor Fence:
Same pattern on both sides
Concrete footing diameter 10" to 12" min
and 30" to 36" deep min in accordance
with local conditions, codes, and standard
building practices.
Actual Panel Dimensions:
•
72"H X 69.5"W
Panel Weight: 58 lbs
•
Tolerances are: ±.5"
•
Caps
U.S. Patents: 7,478,797 / 7,635,114 Foreign Patents Pending
www.simtekfence.com
Date: May 1, 2015
Sheet 1 of 1
TM
Scale: not to scale
REV: A Gleason
This drawing may not be altered or reproduced without the
permission of SimTek Fence
Model #:WP72X72
6’ High Ashland Panel
Notes: For a 6’ installation, use our 102” posts which are designed to be 28”-30” in the ground and 72”-74”
above ground. Cut the bottom of the post for shorter installations. NEVER cut the top of the post.
