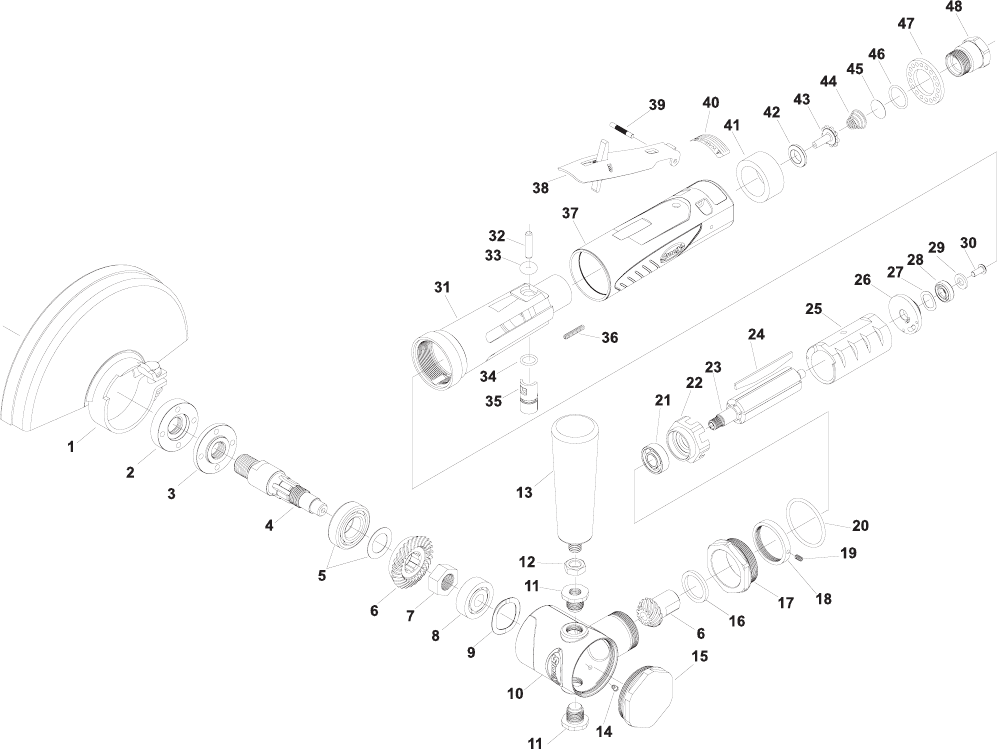

PARTS LIST FOR SCO10A106 SERIES CUTOFF TOOLS
SERIAL “B”
1. 77035 6” Cutoff Guard
2. 77027 Wheel Retainer
3. 77026 Wheel Arbor
4. SWG-92 Output Spindle
5. SPSWG-96 Bearing / Spacer Set
6. SP74110 Spriral Bevel Gear Set
7. 09693 Elastic Stop Nut 9/16-18
8. 67785 Ball Bearing
9. 68992 Wave Washer
10. SWG-90 HD Angle Head
11. SWG-98 Hex Head Plug Bolt (2)*
12. 09593 Jam Nut
13. 40107 Handle
14. 30375 Grease Fitting
15. SWG-91 Angle Head Cap
16. SWG-94 Angle Head Spacer
17. SWG-97 Angle Head Clamp Nut
18. 77106 Lock Ring
19. 77105 Set Screw 6-32 x 1/4"
20. 14333B O-Ring
21. 10257 Ball Bearing 3/8 X 7/8 X 9/32
22. SDG-3 Front End Plate
23. 74028 Rotor
24. SP74048 Vane, Set of 5
25. 77044 Cylinder
26. 74023 Rear End Plate
27. 41338 Wave Washer .440 X .618 X .008
28. 10253 Ball Bearing
29. 74054 Washer .251 X .468 X .063
30. 74055 Screw #8-32 X 3/8 But Hd Cap
31. SDG-1 Housing
32. 74018 Torr Pin, 3/16 X 7/8
33. 67793 O-Ring
34. 14290 O-Ring
35. 74013 Regulator
36. 06402 Screw, 6-32 X 3/4 Set Soc Hex
37. 74004 Housing Cover
38. SP74019 Lever
39. 74020 Groove Pin, 1/8 X 7/8 Type E
40. 74051 Warning Label
41. 74016 Muffler
42. 74008 Throttle Valve Seat
43. 74009 Throttle Valve
44. 74010 Taper Spring
45. 74011 Screen
46. 14281B O-Ring, 1/16 X 5/8 X 3/4
47. 74017 Exhaust Deflector
48. 77602 Inlet Bushing
Not Shown:
SDG-TUS Motor Tune-up Kit
30505 5/8” Wrench
SP77056 Spanner Wrench
Fig. Part
No. No. Description
Fig. Part
No. No. Description
*Order Quantity As Required
FURNISH CATALOG, SERIAL, AND MODEL NUMBER
WHEN ORDERING PARTS
