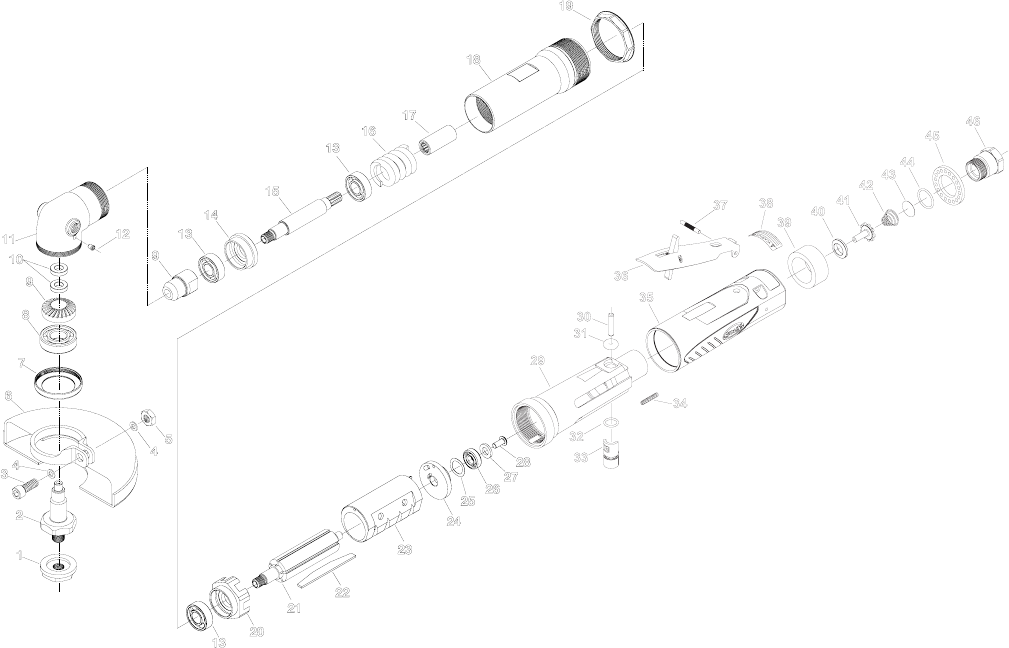

PARTS LIST FOR SCO10AXL SERIES CUTOFF TOOLS
SERIAL “B”
*Order Quantity As Required
FURNISH CATALOG, SERIAL, AND MODEL NUMBER
WHEN ORDERING PARTS
Fig. Part
No. No. Description
1. 77019 Type 1 Wheel Retainer
2. 77511 Output SpindleType 1 Low Profile
3. 07635 1/4-20” Hex Head Bolt
4. 07634 Washer (2)*
5. 68444 Hex Nut, 1/4-20
6. 77514 Type 1 Guard
7. 77512 Gear Case Cap
8. 10930 Ball Bearing
9. PT450-3334 Gear Set
10. SDR-26 Ball Bearing.500x.25x.125 (2)*
11. 77510 Angle Head
12. 30375 Grease Fitting 1/8”
13. 10257 Ball Bearing (3)*
14. 77087 Bearing Holder
15. 77088 Shaft
16. 77091 Spring
17. 77086 Coupler
18. 75220 Extension Housing
19. 75221 Jam Nut
20. SDG-3 Front End Plate
21. 74028 Rotor (5 slot)
22. SP74048 Vane Set
23. 74030 Cylinder, Non-Rev (12,000 RPM)
24. 74023 Rear End Plate
25. 41338 Wave Washer
26. 10253 Ball Bearing
27. 74054 Washer
28. 74055 But Head Cap Screw #8-32f x 3/8
29. SDG-1 Housing
30. 74018 Torr Pin, 3/16 X 7/8
31. 67793 O-Ring
32. 14290 O-Ring
33. 74013 Regulator
34. 06402 Screw, 6-32 X 3/4 Set Soc Hex
35. 74004 Housing Cover
36. SP74019 Lever
37. 74020 Groove Pin, 1/8 X 7/8 Type E
38. 74051 Warning Label
39. 74016 Muffler
40. 74008 Throttle Valve Seat
41. 74009 Throttle Valve
42. 74010 Taper Spring
43. 74011 Screen
44. 14281B O-Ring, 1/16 X 5/8 X 3/4
45. 74017 Exhaust Deflector
46. 74012 Inlet Bushing
Not Shown:
SWG10-M12 Drop-in Motor (12,000 RPM)
67408 Warning Label
SPSDR-14A Support Handle Assembly
SDG -TUS Motor Tune-up Kit
25480 7/8" Wrench
74190 1" Wrench
