Instruction Manual



1. With the vehicle on flat level ground, set the emergency brake &

block the rear tires.

2. Place a floor jack under the lower control arm’s front cross member

& raise the vehicle. Place jack stands under the frame rails, behind

the front wheel wells & lower the frame of the vehicle onto the jack

stands.

3. Remove the front tires / wheels.

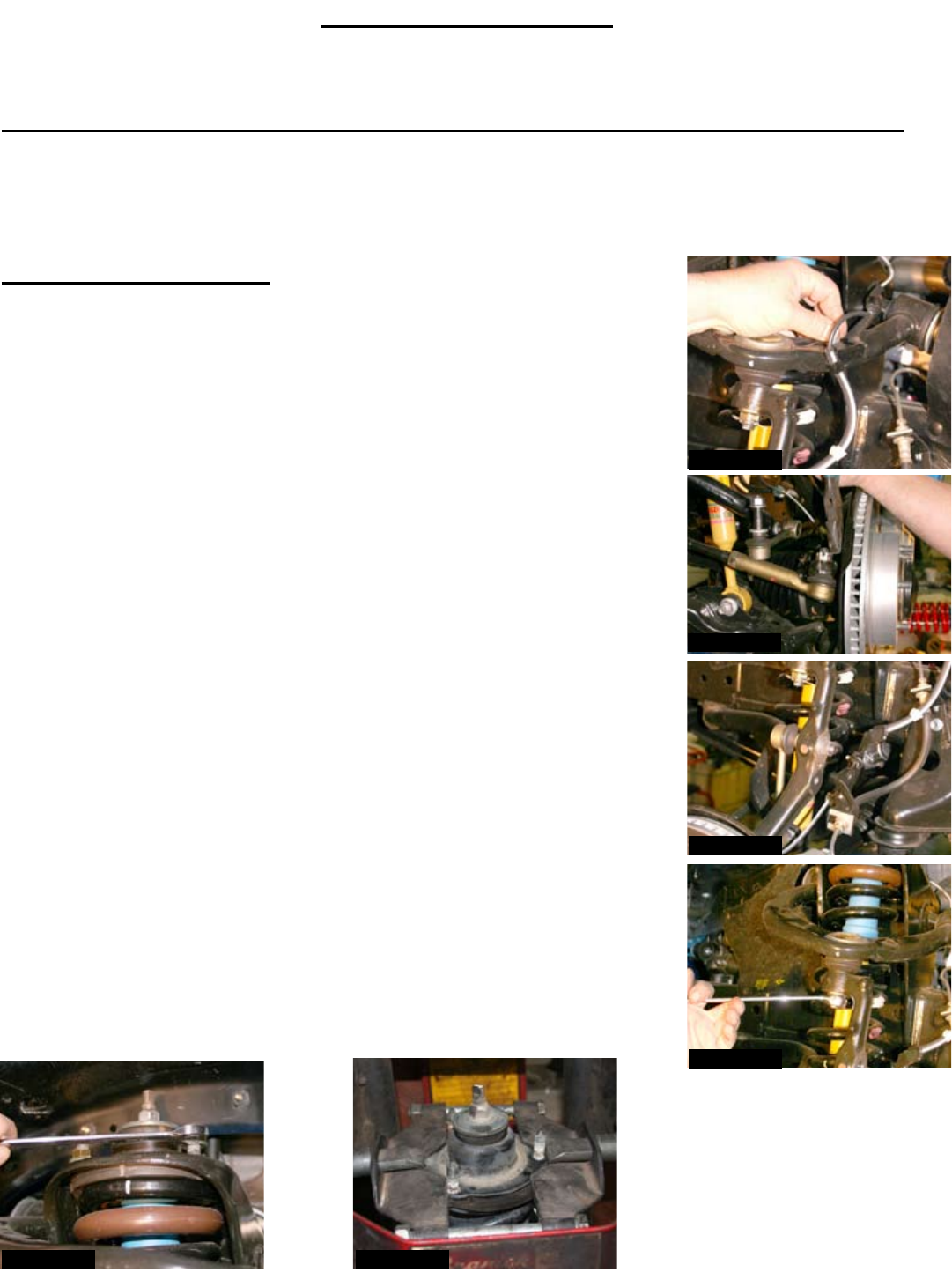

4. Remove the ABS line from the upper A-arms using a 10mm socket &

disconnect the ABS / brake line from the steering knuckle. (See

Photo #1)

5. Disconnect the outer tie rod from the steering knuckle using a tie rod

remover or other suitable tool. (See Photo #2)

6. Disconnect the lower strut mount from the lower A-arm & disconnect

the sway bar end link. (See Photo #3)

7. Disconnect the upper A-arm ball joint from the top of the steering

knuckle using a ball joint remover or other suitable tool. (See

Photo #4)

8. Remove the upper strut mounting bolts from the upper frame mount

& remove the strut. (See Photo #5)

9. Using a spring compressor, unload the tension on the upper mount

of the coil assembly. Remove the upper strut retaining nut & remove

the strut from the bottom. (See Photo #6)

Pg 2I-TT430ST

:













413STS TOY 1-3" ADJ PERF STRUT 2

UTWR 4 U-BOLTS/916X212X7 SQUARE 1

I-TT430ST INST SHEET: 3" TOYOTA STRUT 1

 
