User Manual

Low Voltage Alarm LED
Power on LED
3mm Hole for Fixing
INSTRUCTION
MANUAL
Congratulations on your purchase of the SkyRC 2S 10A Linear Voltage Regulator. This new Battery
Eliminator Circuit is a unique Linear BEC made to withstand high current loads of 10Amps continuous integrated with
a low voltage monitor. The SkyRC Linear BEC uses a high quality linear voltage regulator meaning it will produce no
interference to any popular brands of R/C radio systems. It provides safe and consistent power to your R/C receiver
and servo(s) that eliminates the need for a separate battery source.
LiPo batteries are unlike other batteries and discharges on a non-linear curve, therefore it is important not to drain any
LiPo batteries to minimum before charging as it can cause permanent damage. The SkyRC BEC can prevent this by
giving you an indication of your LiPo battery when the pre-set low voltage level is reached . The SkyRC Linear BEC is
ideal for today's more demanding R/C aircrafts equipped with servos that require even higher current demands.
Please read the entire manual before proceeding.
(SK-600049)
INTRODUCTION
LINEAR VOLTAGE
( )
REGULATOR BEC
Output -
Output +
Connect to Battery
Connect to Pin-Flag
Power Switch
Alarm Switch
6.8V
6.0V
5.2V
Input Voltage: 6.0-8.4V(2 LiPo Cells)
Output Voltage: 5.2V-7.4V Selectable
Low Battery Alarm Voltage: 6.6V-7.4V
Model: SK-600049
www.skyrc.com
INPUT
S
SW
AUX
S
Low Voltage
Alarm-ADJ
ON
OFF
LINEAR VOLTAGE REGULATOR
OUT
1 2 3 4
ON
Low Voltage
Alarm-ADJ
Voltage DIP Switch
Alarm Switch
Pin-Flag Power Switch
MOVE BEFORE FLIGHT
YELLOW
WHITE
RED
BLACK
2S 10A OUTPUT
LINEAR VOLTAGE REGULATOR
FEATURES
Compact high efficiency 5.2V 6.0V 6.8V 7.4V selectable linear voltage regulator and low voltage monitor.
Ideal for 2 cell lithium polymer battery applications. Input voltage range from 6V Min to 8.4V Max.
High current capability of 10 Amps continuous, 15 Amp peak.
Protects against thermal and current overload.
Pin-Flag power switch with ultra bright super flux LED allows you to turn the BEC output power on or off
remotely and gives low voltage warning.

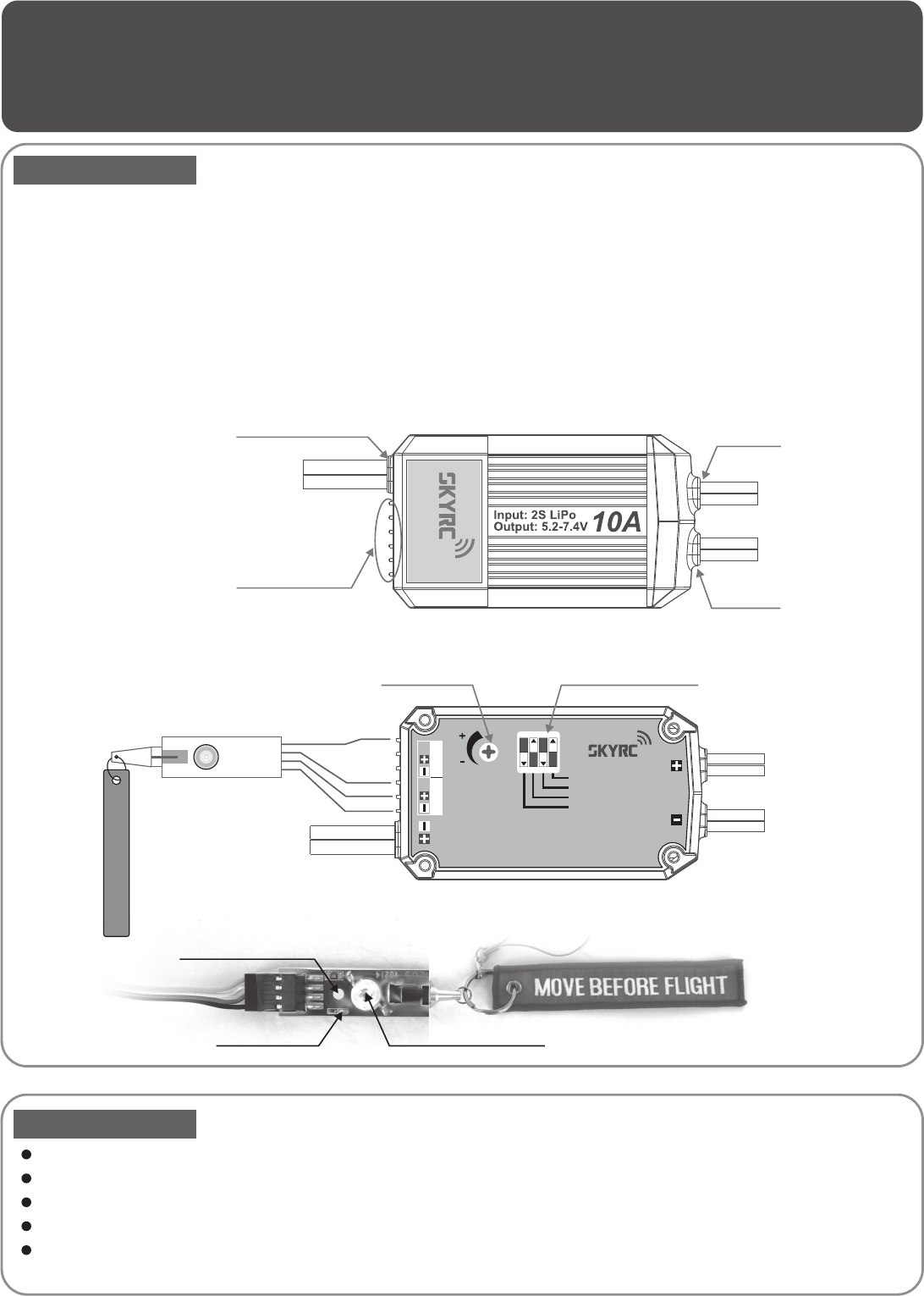

TOP VIEW
BOTTOM VIEW
PIN-FLAG POWER SWITCH
