Installation Guide

TS4-R-F INSTALLATION

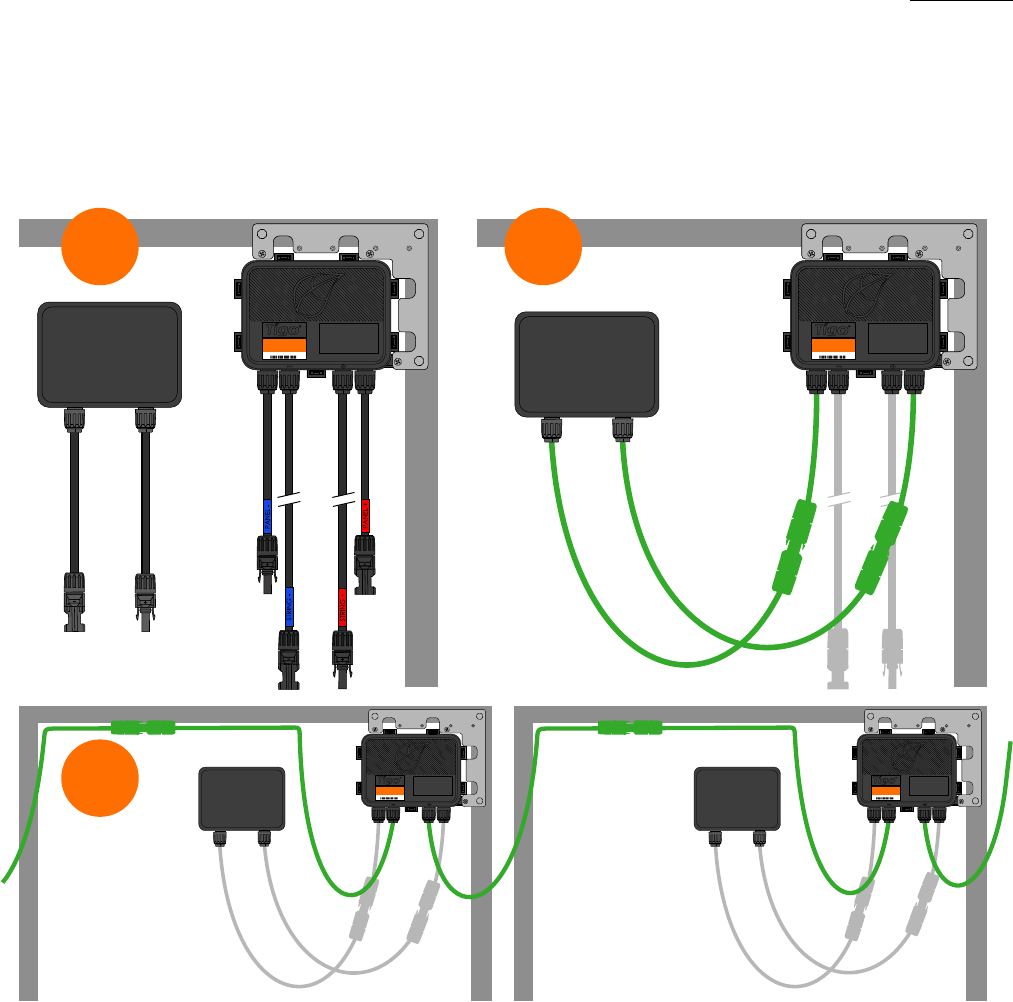

Standard modules can be equipped with TS4-R-F add-on/retrot
units as shown below.
Always connect modules to TS4-R inputs before connecting outputs.
Each TS4-R-F must have a PV module connected to its input before
connecting the outputs of TS4-R-F units in series.
To disconnect TS4-R-F from a module, disconnect the TS4-R-F outputs
from the string before disconnecting the TS4-R-F inputs from the
module junction box.
11
1
3
2
4 - 123A
TS4-R-F
4 - 123A
TS4-R-F
4 - 123A
TS4-R-F
4 - 123A
TS4-R-F
