Wireless Pan/Tilt APP Camera Installation and Operating Instructions Model: C734IP – 10.021.38 Version 1.1 PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE USING THIS PRODUCT AND KEEP THIS MANUAL FOR FUTURE REFERENCE.
The state of art WAPP camera is capable of deliver high quality Digital High Defi (HD) video to your smart-mobile device(s), which would require higher internet bandwidth. Due to your local internet environment condition, your mobile device(s) may display black-screen or temporary disconnect to the WAPP camera. * Make sure the WAPP camera is operating with suffi internet bandwidth, 1Mbps (upload/ download speed) is suggested.
CONTENTS INTRODUCTION WIRELESS DEVICES OPERATING RANGE IMPORTANT SAFETY PRECAUTIONS KIT CONTENT SAFETY AND INSTALLATION TIPS NIGHT VISION CAMERA OVERVIEW DOWNLOAD AND SETUP THE APP LIVE VIEW / SNAPSHOT / RECORDING VIEWING YOUR SNAPSHOTS PLAYBACK YOUR VIDEOS MAIN PAGE OVERVIEW ADVANCED SETTING ADMIN PASSWORD EMAIL ALERT TIME ZONE DAYLIGHT SAVING DEVICE SECURITY CODE VIDEO SETTINGS WI-FI SETTING SENSITIVITY SETTING EMAIL SETTING SD CARD SETTING OVERWRITE SD CARD PROFILE SETTING DEVICE INFORMATION TROUBLE SHOO
INTRODUCTION PLEASE READ BEFORE YOU START Always use discretion when installing CCTV equipment, especially when there is perceived policy. Enquire relevant local regulations applicable to the lawful installation of video recording/surveillance. Third party consent may be required. WIRELESS DEVICES OPERATING RANGE Ensure the signal reception viewed from the wireless camera(s) is the best possible reception between the camera(s) and the Wi-Fi router.
Products with CE Marking comply with EMC Directive (2004/108/EC); Low Voltage Directive (73/23/EEC); R&TTE(1999/5/EC); ROHS Directive (2011/65/EU) issued by the Commission of the European Community. Compliance with these directives implies conformity to the following European Norms: EMC: EN 301 489 LVD: EN 60950 Radio: EN 300 328 FCC Compliance Statement: This device complies with Part 15 of the FCC rules.
KIT CONTENT x1 x1 x1 x1 Quick Start Guide x1 x1 Tools Required: ‧Electric drill ‧5mm masonry drill bit ‧15mm masonry drill bit ‧No. 2 Philips screwdriver For best system performance: - iOS: iPhone5 / iPad2 / Mini iPad with iOS 7.0 or above. - Android: 1.5G dual core processor dual core procesor with 1G Ram or above. - Storage: Class 10 memory card. - Bandwidth: 1Mbps or above upload/download speed suggested.
SAFETY AND INSTALLATION TIPS Do not attempt to open the units with the power adaptor plug connected to avoid any risk of personal injury. When installing CCTV camera(s), always follow manufacturer's advice when using power tools, steps, ladders, etc. and wear suitable protective equipment (e.g. safety goggles) when drilling holes. Before drilling holes through walls, check for hidden electricity cables and water pipes. The use of cable/pipe detector is advisable.
NIGHT VISION The camera has built-in infrared LEDs to allow you to view at night for 24-hour surveillance. The LEDs will automatically activate at night and the picture viewed will turn to black and white. The night viewing range is up to 5 meters.

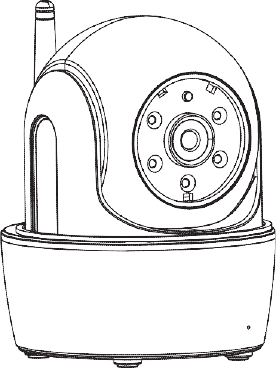

CAMERA OVERVIEW Light Sensor Infrared LEDs Microphone Micro SD Lan Port Reset Status LED Antenna Power
DOWNLOAD AND SETUP THE APP The Wireless APP camera is designed to deliver live video footage directly to your smart phone or tablet device. Please follow these steps to download, setup and use the APP. APP Name: OMGuard HD Download the App 1. From you smart phone or tablet device, click the APP Store/Google Play and search for “OMGuard HD”. 2. Once located the APP, select download. 3. Once download completed, you will find the APP icon on your mobile device screen.
APP Setup 1. Make sure the mobile device you are using is connected to the same Wi-Fi router the camera is connected to. 2. Locate the “OMGuard HD” icon in your mobile device and launch the App. 3. Tap the ADD CAMERA icon to add a new camera. Then click the SEARCH button for a quick setup. The APP will search available camera(s) connecting to the Wi-Fi router and display the camera information in the pop up list.
Note: Most Wi-Fi routers broadcast the Service Set Identifier (SSID) by default. This is the name of your wireless network, and SSID broadcasting is how Wi-Fi-enabled devices find networks. The camera will only accept SSID composed with English alphabet charactors and arebic numbers, none-English and special charactors (!@#$%, ect.) will not be accepted.
LIVE VIEW / SNAPSHOT / RECORDING Tap to take snapshot image(s) of the video. The captured snapshots will be stored in your mobile device. Tap to turn ON/OFF the volume. Tap to Start/Stop recording. The recorded video file will be stored in the memory card of your camera. Tap to set/move camera to default position Tap and hold the icon to send the voice to remote device (Push To Talk) Tap to return to the main page. Control camera direction via finger swipe.
VIEWING YOUR SNAPSHOTS For iOS You snapshots will be named with the time stamp and saved into the Camera Roll location of your mobile device. For Android You snapshots will be named with the time stamp and saved into the Photo Gallery > snapshot folder on your mobile device. PLAYBACK YOUR VIDEOS The recorded video file(s) on your camera is automatically saved to the memory card inserted in your camera. You can remotely access the file(s) for playback via your mobile device.
Tap EVENT LIST icon and the Date-Time filter would appear. User may define the period for system to display all available recorded file(s) for playback. During the playback, you can tap the PAUSE icon to pause / resume the video, MUTE to deactivate/activate the audio function and GO BACK icon to return to the event list section. You may also review recorded video file(s) with your PC. For best performance, please use “Free Video Converter” from http://www.freemake.
To Download/Delete the video file(s) in the EVENT LIST section, please follow the steps below: DOWNLOAD Long press the video clip to download the file onto your mobile device. Note: During the download process, system will stop both the live view and recording functions. APP will automatically inform any user accessing the camera that the system is busy and the connection has been terminated.
This function helps user to easily withdraw the recorded file(s) from the memory card. It is strongly suggested to download the files at your home WiFi network (WLAN), meaning the mobile device(s) is connecting to the same Wi-Fi router as the camera. Minimum bandwidth requirment is 1Mbps (upload/ download). Download process may be force stopped if the bandwidth becomes too slow and cannot continue.
MAIN PAGE OVERVIEW The MAIN PAGE section offers user an overview for all registered camera(s), including camera status (connected/disconnected). User can quickly access the camera(s) in the list. When multiple cameras are registered, scroll down to locate the registered camera for access. (iOS) (Android) ADD CAMERA The ADD CAMERA icon allows you to register additional camera(s) to the system. The system supports up to 3 concurrent user connections. 1.
In the CAMERA SETTING section you will allow to (1) configure system setting, (2) unregister camera from the APP and (3) enter event list for recorded video file(s) playback. Tap the CAMERA SETTING icon to enter/exit CAMERA SETTING. Tap the CAMERA SETTING icon. The following icons appear on the panel. (iOS) (Android) Tap the ADVANCED SETTING icon to setup camera configuration. (Please refer to "Advanced Setting" for detail). Tap the DELETE icon to remove the camera connection.
SETUP PIN LOCK (iOS) (Android) If you enable PIN Lock, the user will be asked to enter the PIN code when you launch the APP. 1. Enable the “Enable lock when starting” function. Then enter your PIN code. 2. Confirm your PIN code again. Note: If you forgot your PIN code, please uninstall the APP and reinstall it on the mobile device. NOTIFY (PUSH NOTIFICATION) The WAPP camera supports motion detection function.
For Android If you want to enable/disable it, please follow the steps below. Note: The internet connection and wireless network interference may influence the performance of push notification service. ABOUT APP/API Version Info (iOS) (Android) Tap the ABOUT icon to check the APP Version when necessary.
ADVANCED SETTING This chapter explains the advanced settings for administrator. Administrator is the one who owns the administration password and has the full control to the WAPP camera. The administrator can access all WAPP functions and settings, while general users can receive the surveillance images for live view/screen capture/video recording and may not manage the camera settings.
ADMIN PASSWORD The Admin Password is a specific security code for administrator to change the advanced settings. The default admin password is 123456. Please use this function to change the default admin password into your personal admin password. For the protection of your system configuration, every time you change the advanced settings, you need to enter the admin password. Please change the admin password periodically.
TIME ZONE The drop-down list shows the world time zone. Select the time zone that will work the best for you. If your date/time is during the daylight saving time period, please check the Daylight Saving box to adjust the system time properly. DAYLIGHT SAVING Activate/Deactivate the daylight saving function. DEVICE SECURITY CODE The Device Security Code is a specific security code to access the camera. The default password of the camera is 123456.
Envi ronment Mode The Environment Mode settings allows you to select the power line frequency used at the location of WAPP camera. The power line frequency varies depending on geographic region. It may cause image flicker if wrong frequency is selected. Please check with local authorities for proper setting. Low Light Enhancement The Low Light Enhancement Mode is for improving the night view video image by providing 5 levels to select from (5 = brightest).
SENSITIVITY SETTING This defines the camera parameter for motion detection. Motion Detection (available for Software Mode ONLY) HIGH – Suitable for detecting smaller object(s) within 5 to 6 meters LOW – Suitable for detecting larger object(s) within 3 to 5 meters Note: The HIGH/LOW setting for Motion Detection only takes effect when user chooses “SOFTWARE” in Detect Mode. EMAIL SETTING The email setting allows you to configure the email environment, email account and password. Gmail account is suggested.
SD CARD SETTING Formatting your memory card will ERASE all the data from it and you will not be able to get the data back. Please back up your video files BEFORE formatting the memory card. Note: The system is optimized to Class 10 memory card. Memory card with lower specification will decrease the recording and playback function efficiency. During format process, all recording & viewing will stop until format process completes.
TROUBLE SHOOTING IF… The APP cannot found the camera SOLUTION • Make sure your network supports the DHCP protocol. • Make sure the camera and your mobile device connect to the same Wi-Fi router for the first setting. • Make sure the Wi-Fi router is activated. • Make sure the camera is properly powered on. • Use the “ADD CAMERA” function to manually add the camera. Wi-Fi router is not shown • Make sure SSID broadcasting function is enabled in the WiFi router.
Low wireless signal Poor image quality • Wireless devices such as wireless home stereo system may Motion detection is not working or over-react • Make sure the sensitivity setting is turned ON (please refer to reduce the signal strength. Leave as much space as possible between the camera/mobile device and these wireless devices. • Clean the camera lens using lens cleaning cloth. Spots or dust on the lens can also cause image quality problems. the Sensitivity Setting section).
Bright white spots appear at night time • The camera's infrared LEDs produce invisible light that reflects off surfaces such as glass. Install the camera on the other side of windows or place the lens fl against the surface to improve the night vision. It is suggested to install camera(s) under well-lit area. Note: Please check the environment rating (Ingress) of the camera(s) before installing outdoors. Memory card error • Make sure the memory card is correctly inserted and formatted.
PRODUCTION SPECIFICATION Networking Parameter Wireless Technology IEEE 802.
STORAGE MEDIA MANAGEMENT Micro SD Card Capacity (Class 10) Event Minutes 4G 220 220 8G 440 440 16G 880 880 32G 1760 1760 31
