Installation Manual

WWW.SMITTYBILT.COM
For Technical Support/Warranty Information please call 310-762-9944
Smittybilt, 400 West Artesia Blvd, Compton, CA 90220
Installation Instructions
Replacement Top (Part # 9085235)
2010 and Up Unlimited (4 Door)
Replacement Top (Part # 9075235)
2010 and Up JK (2 Door)
Step 1: If there is currently a soft top on the vehicle, remove it and save the screws removed from where the
top attaches to the rear bows. Once the windows are removed and the screws from the rear bows, you will
need to fold your top down.
Remove the two screws from the front two corner plastic pieces. (Fig 1) Save hardware for later use.
Now you will need to raise the bow assembly and lock the header into the windshield frame. Carefully pull
the softop forward over the windshield frame and onto the hood. (Fig 2)
To remove the top from the header piece remove all of the screws holding the top portion of the
header onto the base. (Fig 3) Keep screws for later use. You may now remove the top portion of the header
and the top completely.

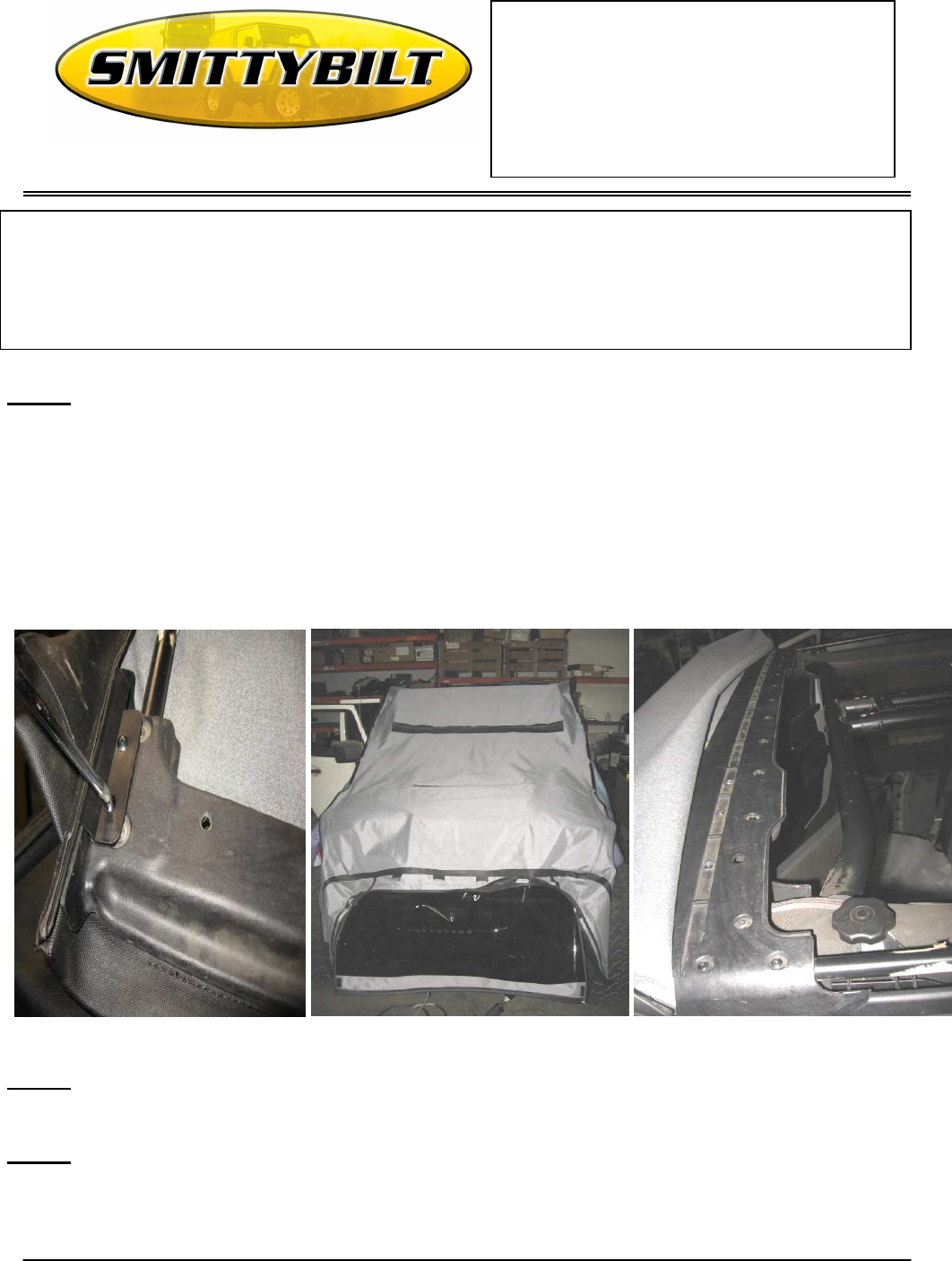

(Fig 1) (Fig 2) (Fig 3)
Step 2: Drape your new top over the hood upside down with the front of the top up on the windshield
header. (Fig 2)
Step 3: Place the sewn in plastic tube on the top on the front edge of the header inside the extrusion; making
sure it’s centered in the header. (Fig 4, 5)
NOTE:
Read entire instructions thoroughly before installing this product.
It is recommended to
install this Top when temperatures are above 70 degrees. The top can contract and stretch an inch or
more. If the Top has any wrinkles this is caused from packaging but once the top relaxes they will go
away. You must have the factory bow assembly and door surrounds in order to install this product.
Pictures are for example use, actual vehicle may differ.
