15
ASSEMBLY

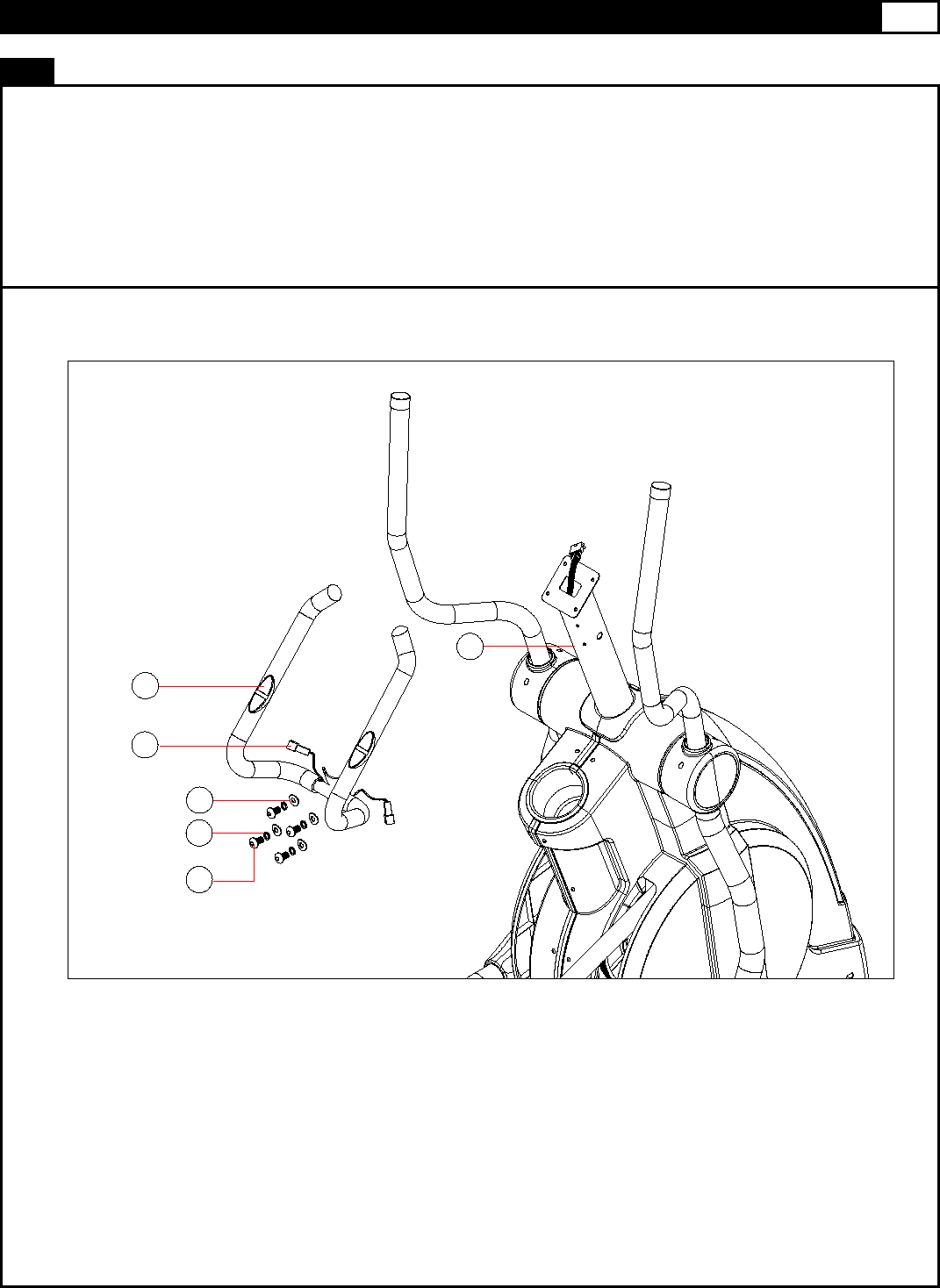

STEP 7: Assemble Console Back Cover
Caution: Do not Pinch the wires between the frame
(A) Feed the Hand pulse wires (7) through the hole in the computer post (10) until they extend through the top of the
computer post. Do not pull on the wire as they may disconnect from the hand pulse sensors.
(B) Line up the bolt holes on the handle bars (7) with the holes on the computer post (10)
(C) Secure the handle bar to the computer post with 4 x M8*20 bolts (9), 4 x M8*2.0T spring washers (15) and 4 x
OD20*ID8.5*1.5T curved washers (8)
(D) Tighten all bolts now
7
4
8
9
15
10
