ASSEMBLY
STEP 7: ATTACH THE COMPUTER POST COVERS

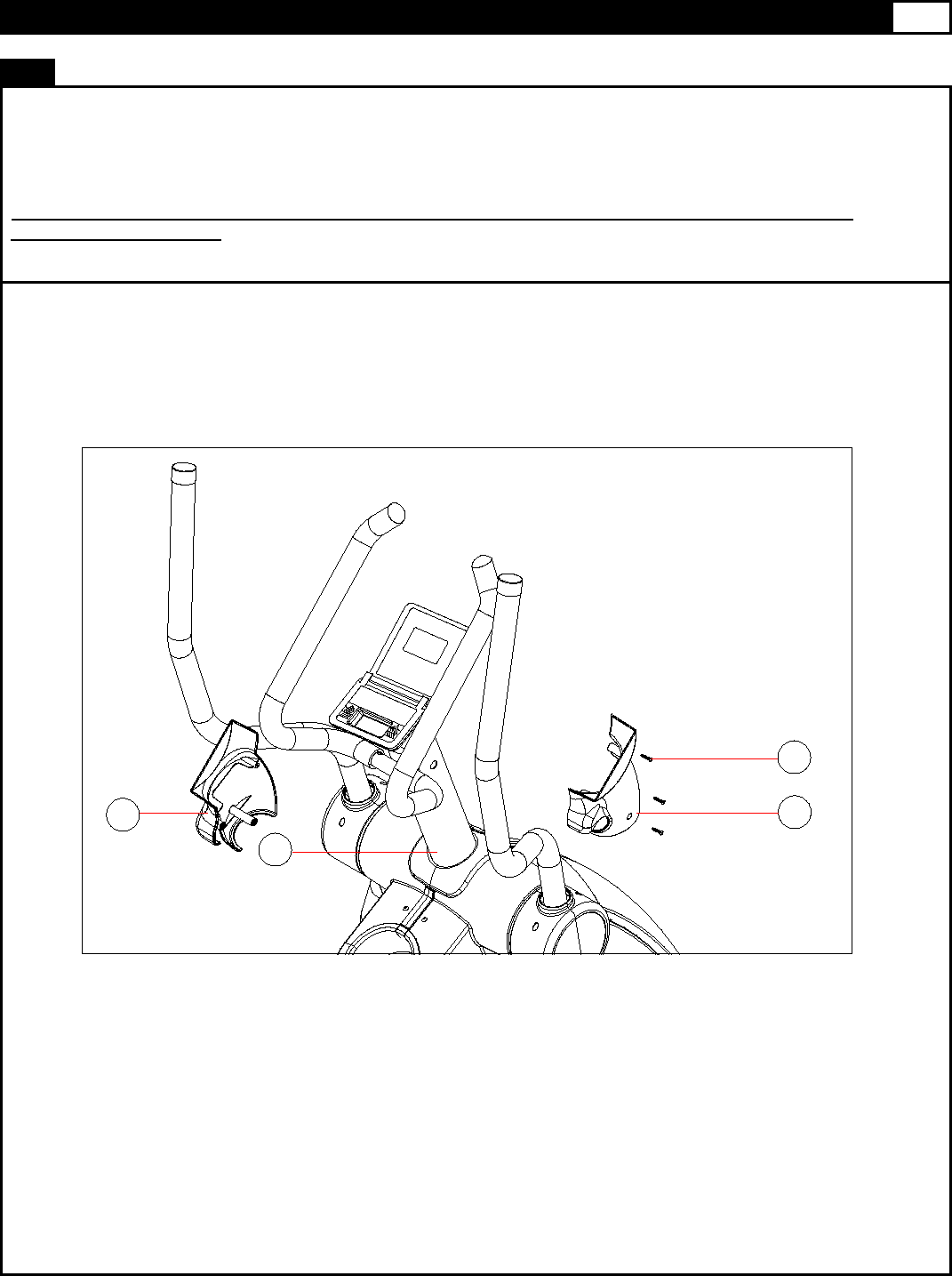

(A) Place the left (12) and right (11) covers around the computer post (see picture below for proper direction)
(B) Secure the two covers together with 3 x M4*20 screws (13).
ASSEMBLY IS NOW COMPLETE. DOUB:E CHECK THAT ALL BOLTS AND FASTENERS HAVE BEEN
PROPERLY TIGHTENED.
11
13
12
