User manual

10 SMOOTH CE3.0 ELLIPTICAL TRAINER
ASSEMBLY

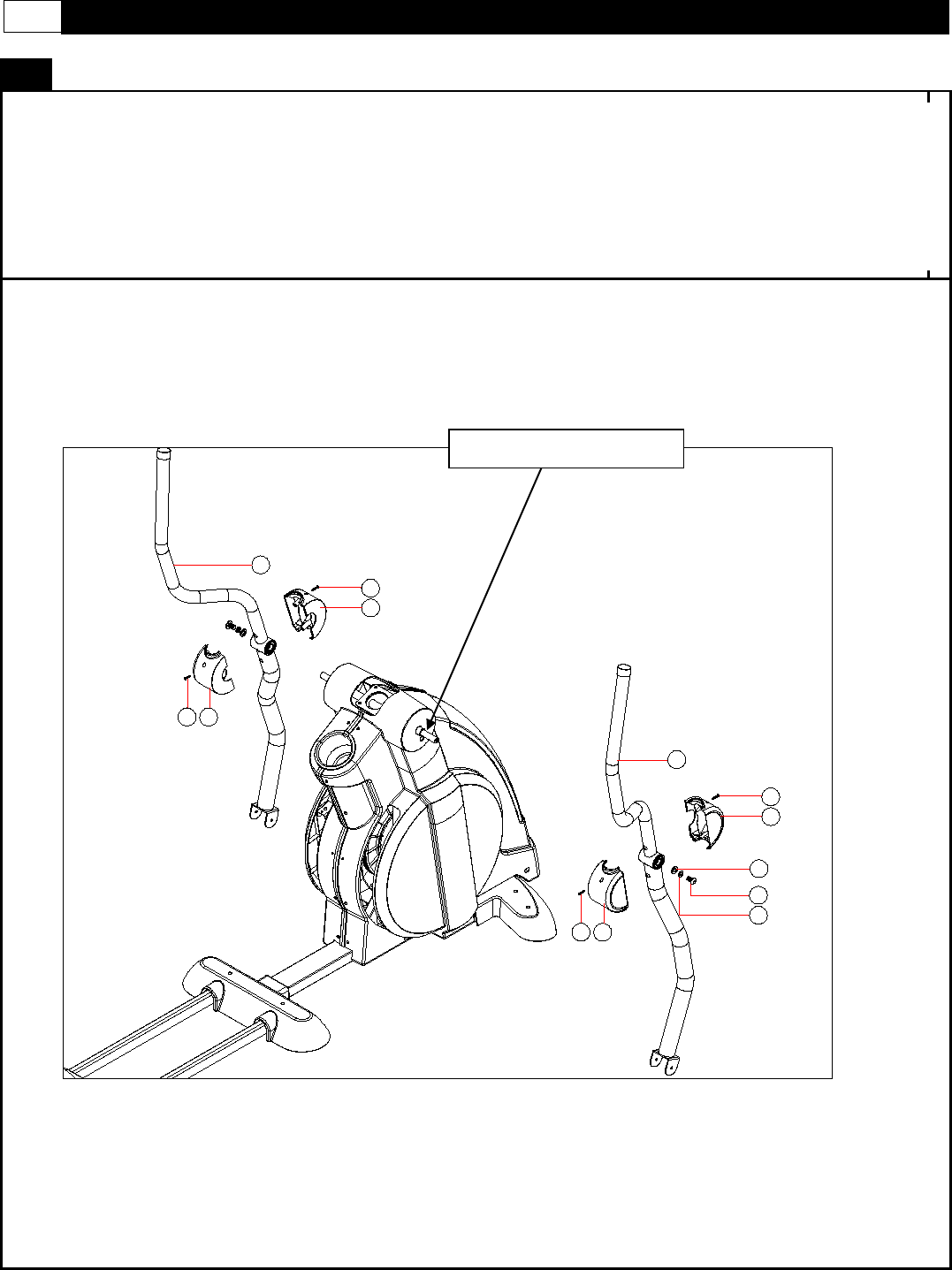

STEP 2: Attach the Action Handlebars and Covers
(A) Slide the right handlebar on to the action handlebar axle. Secure the action handlebar to the axle with 1 x
M8*2.0T bolt (9), 1 x M8*2.0T spring washer (15) and 1 x OD22*ID8.5*2.0T flat washer (32). Tighten all bolts
now
(B)
Place the front and rear action handle bar covers around the pivot joint and secure with 1 x M8*20(13) screw
(C) Repeat the above process for the left side
13
18
13
31
13
18
28
13
31
32
9
15
20
Action Handlebar axle
