Hookups and Settings
Step 2: Connecting the TV and Audio Component
Select one of the following patterns according to the input jack on your TV monitor, projector,
or audio component such as an AV amplifier (receiver).
When setting “LINE 3 Out [LINE 1 In]” to “S-Video [S-Video],” “RGB [Video/RGB]” or
“RGB [Decoder]” in the “Video In/Out” setup (page 91), use a SCART cable that conforms
to the selected signal.
Use a certified HDMI cable to enjoy high quality digital picture and sound through the HDMI
OUT jack.
When connecting a Sony TV/audio component that is compatible with the “Control for
HDMI” function, see page 20.
To connect a TV
To connect a TV through an audio component

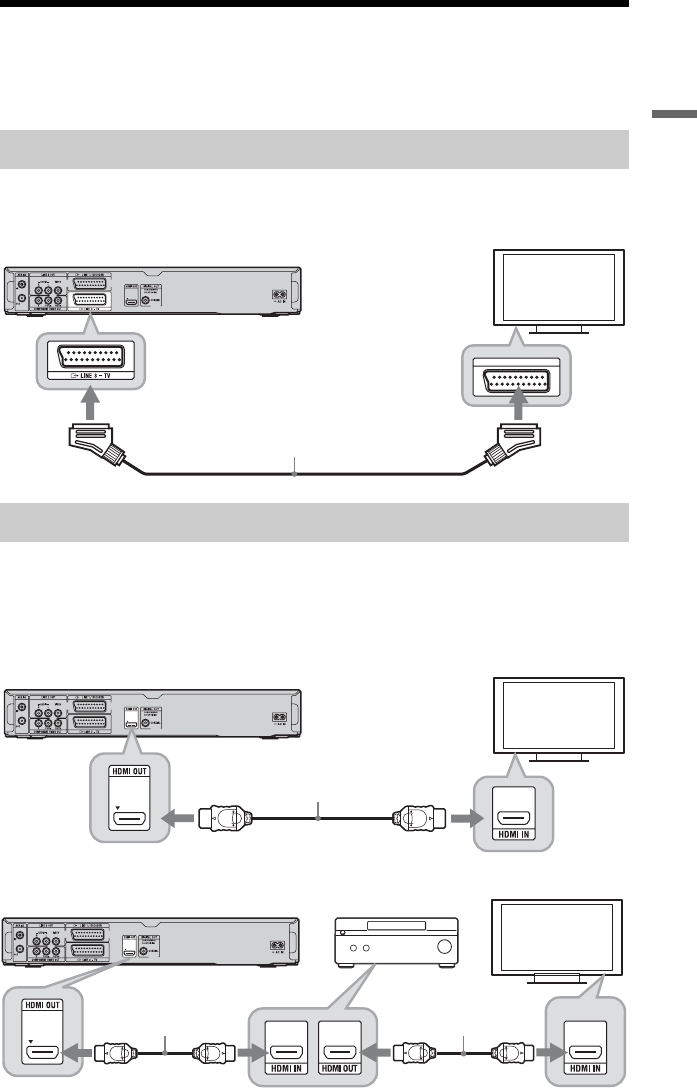

Connecting a SCART cable
Connecting an HDMI cable
SCART cable (not supplied)
DVD recorder
TV
HDMI cable (not supplied)
DVD recorder
TV
DVD recorder
Audio component
TV
HDMI cable
(not supplied)
HDMI cable
(not supplied)
,continued
