SPEC NO: DSAI2506 REV NO: V.1 DATE: APR/01/2008 PAGE: 1 OF 6

APPROVED: WYNEC CHECKED: Allen Liu DRAWN: Y.F.Lu ERP: 1203001960

3.2mmx1.6mm SMD CHIP LED LAMP

PRELIMINARY SPEC

ATTENTION

OBSERVE PRECAUTIONS

FOR HANDLING

ELECTROSTATIC

DISCHARGE

SENSITIVE

DEVICES

Part Number: APT3216QWF/D White

Features

z 3.2mmx1.6mm SMT LED, 0.75mm THICKNESS.

z LOW POWER CONSUMPTION.

z WIDE VIEWING ANGLE.

z IDEAL FOR BACKLIGHT AND INDICATOR.

z VARIOUS COLORS AND LENS TYPES AVAILABLE.

z PACKAGE : 2000PCS / REEL.

z MOISTURE SENSITIVITY LEVEL : LEVEL 3.

z RoHS COMPLIANT.

Description

The source color devices are made with AlInGaN on Sapphire

Light Emitting Diode.

Static electricity and surge damage the LEDS.

It is recommended to use a wrist band or anti-electrostatic

glove when handling the LEDs.

All devices, equipment and machinery must be electrically

grounded.

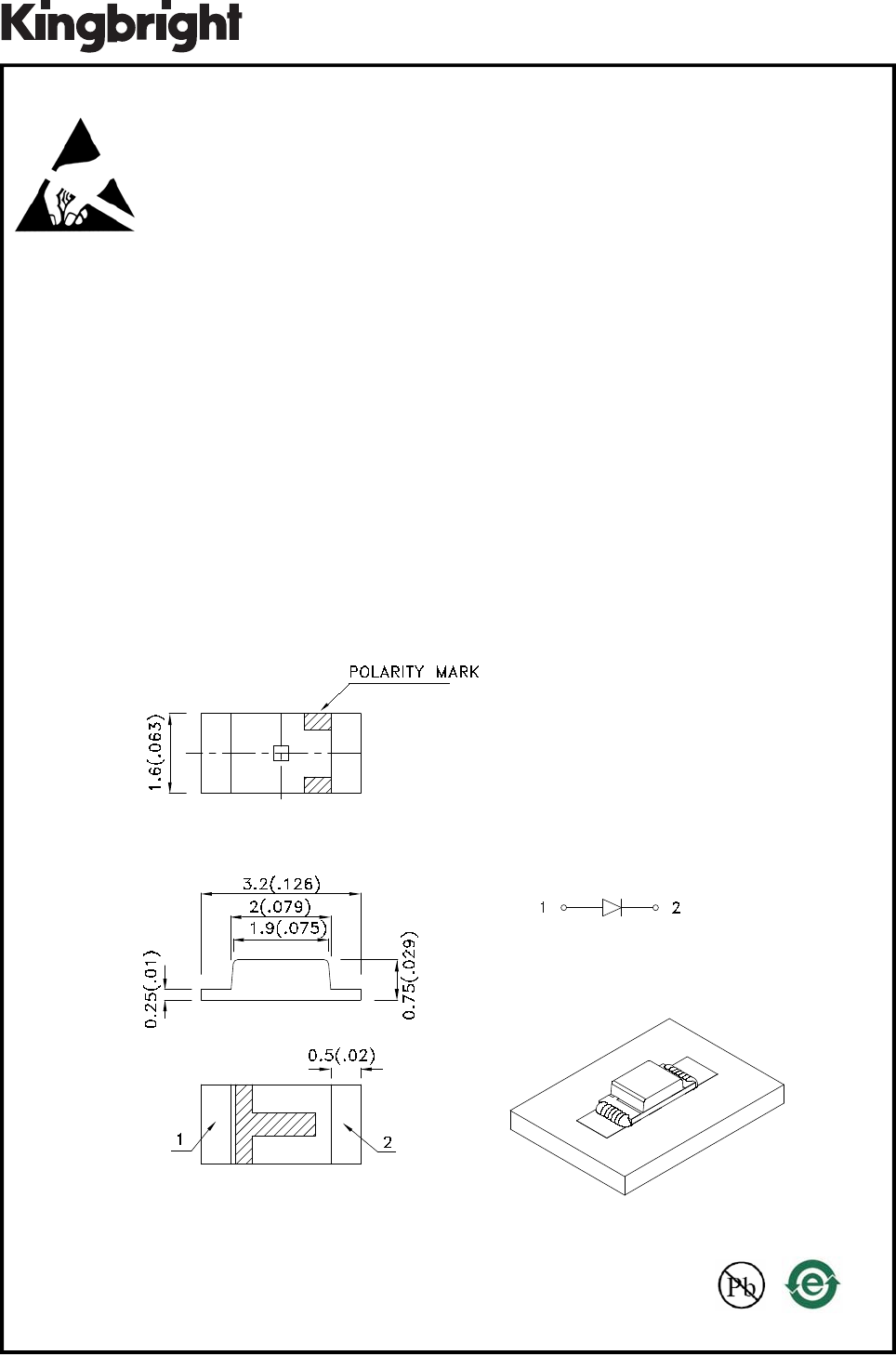

Package Dimensions

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is ±0.2(0.008") unless otherwise noted.

3. Specifications are subject to change without notice.

4. The device has a single mounting surface. The device must be mounted according to the specifications.

Summary of content (6 pages)

PAGE 1
3.2mmx1.6mm SMD CHIP LED LAMP Part Number: APT3216QWF/D PRELIMINARY SPEC White ATTENTION OBSERVE PRECAUTIONS FOR HANDLING ELECTROSTATIC DISCHARGE SENSITIVE DEVICES Features Description z 3.2mmx1.6mm SMT LED, 0.75mm THICKNESS. The source color devices are made with AlInGaN on Sapphire z LOW POWER CONSUMPTION. Light Emitting Diode. z WIDE VIEWING ANGLE. Static electricity and surge damage the LEDS. z IDEAL FOR BACKLIGHT AND INDICATOR.
PAGE 2
Selection Guide Part No. Dice APT3216QWF/D Iv (mcd) [2] @ 20mA Lens Type White (AlInGaN) YELLOW FLUORESCENT Viewing Angle [1] Min. Typ. 2θ1/2 110 250 120° Notes: 1. θ1/2 is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value. 2. Luminous intensity/ luminous Flux: +/-15%. Electrical / Optical Characteristics at TA=25°C Symbol Parameter Device VF [1] Forward Voltage White IR Reverse Current White X [2] Typ. Max.
PAGE 3
White SPEC NO: DSAI2506 APPROVED: WYNEC APT3216QWF/D REV NO: V.1 CHECKED: Allen Liu DATE: APR/01/2008 DRAWN: Y.F.
PAGE 4
White APT3216QWF/D White CIE 0.44 0.43 0.42 0.41 0.40 0.39 c1 0.38 0.37 0.36 c0 b4 0.35 0.34 0.33 b3 0.32 b1 0.31 b2 0.30 a1 0.29 0.28 a0 0.27 0.26 0.25 0.24 0.23 0.22 0.21 0.22 0.23 0.24 0.25 0.26 0.27 0.28 0.29 0.30 0.31 0.32 0.33 0.34 0.35 0.36 0.37 0.38 a0 a1 b1 X 0.264 0.283 0.296 0.280 X 0.248 0.275 0.283 0.264 X 0.283 0.330 0.330 0.287 Y 0.267 0.305 0.276 0.248 Y 0.286 0.321 0.305 0.267 Y 0.305 0.360 0.339 0.
PAGE 5
APT3216QWF/D Recommended Soldering Pattern (Units : mm; Tolerance: ± 0.1) Tape Specifications (Units : mm) SPEC NO: DSAI2506 APPROVED: WYNEC REV NO: V.1 CHECKED: Allen Liu DATE: APR/01/2008 DRAWN: Y.F.
PAGE 6
PACKING & LABEL SPECIFICATIONS SPEC NO: DSAI2506 APPROVED: WYNEC REV NO: V.1 CHECKED: Allen Liu APT3216QWF/D DATE: APR/01/2008 DRAWN: Y.F.
