Data Sheet

SPEC NO: DSAI2506 REV NO: V.1 DATE: APR/01/2008 PAGE: 4 OF 6
APPROVED: WYNEC CHECKED: Allen Liu DRAWN: Y.F.Lu ERP: 1203001960

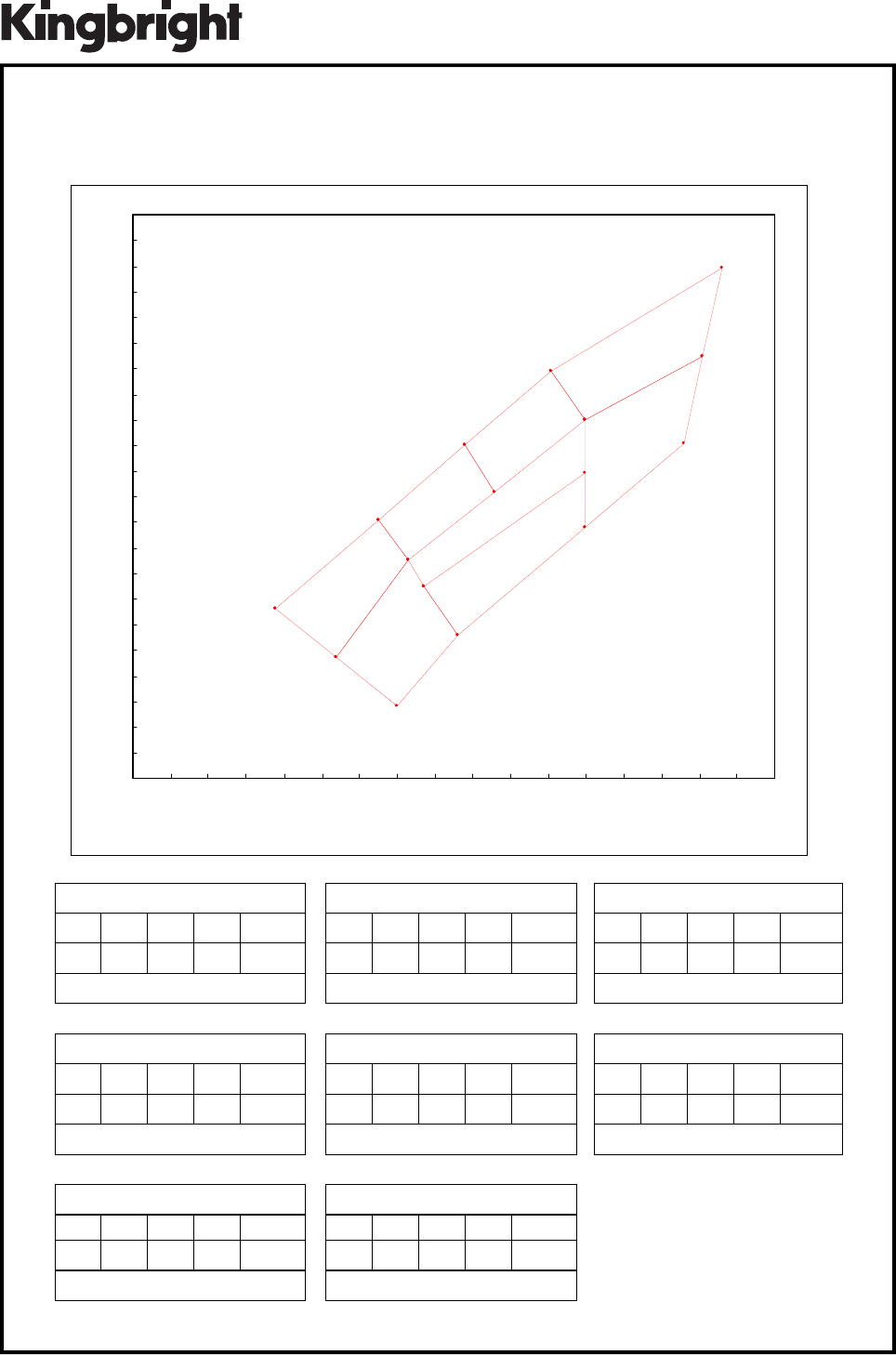

White APT3216QWF/D
White CIE
0.22
0.23
0.24
0.25
0.26
0.27
0.28
0.29
0.30
0.31
0.32
0.33
0.34
0.35
0.36
0.37
0.38
0.39
0.40
0.41
0.42
0.43
0.44
0.21 0.22 0.23 0.24 0.25 0.26 0.27 0.28 0.29 0.30 0.31 0.32 0.33 0.34 0.35 0.36 0.37 0.38
a1
a0
b3
b1
b2
b4
c0
c1
a0 a1 b1
X 0.264 0.283 0.296 0.280 X 0.248 0.275 0.283 0.264 X 0.283 0.330 0.330 0.287
Y 0.267 0.305 0.276 0.248 Y 0.286 0.321 0.305 0.267 Y 0.305 0.360 0.339 0.295
Reference CCT: 14000~9000k Reference CCT: 14000~9000k Reference CCT: 9000~5600k
b2 b3 b4
X 0.287 0.330 0.330 0.296 X 0.275 0.298 0.306 0.283 X 0.298 0.321 0.330 0.306
Y 0.295 0.339 0.318 0.276 Y 0.321 0.350 0.332 0.305 Y 0.350 0.379 0.360 0.332
Reference CCT: 9000~5600k Reference CCT: 9000~7000k Reference CCT: 7600~5600k
c0 c1
X 0.330 0.361 0.356 0.330 X 0.321 0.366 0.361 0.330
Y 0.360 0.385 0.351 0.318 Y 0.379 0.419 0.385 0.360
Reference CCT: 5600~4600k Reference CCT: 6000~4600k
