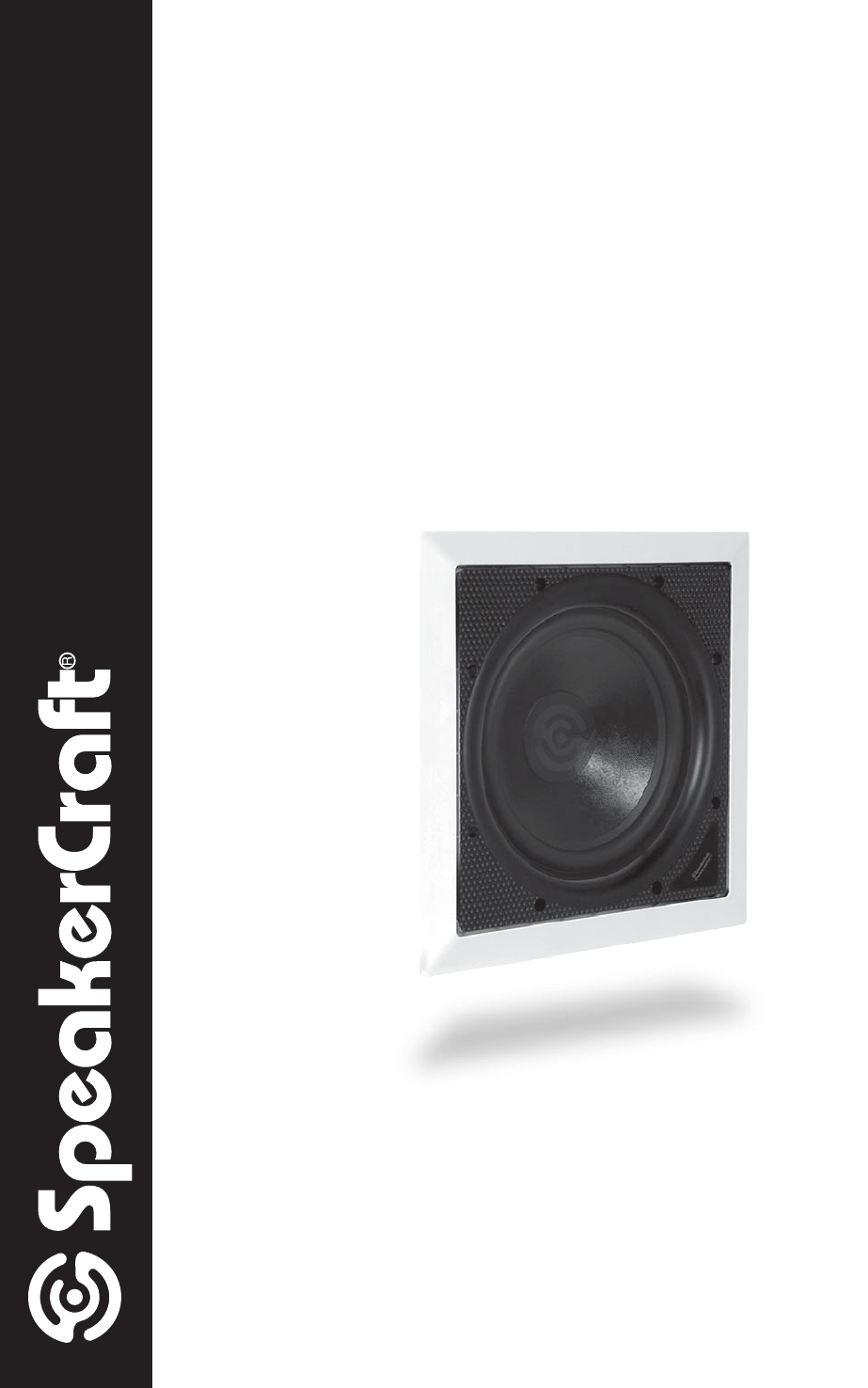

OWNER’S MANUAL Cinema In-Wall Sub In-Wall Subwoofer Cinema Sub 12 | Cinema Sub 10 | Cinema Sub 8
SAFETY INSTRUCTIONS APPLICABLE FOR USA, CANADA OR WHERE APPROVED FOR USAGE CAUTION: To reduce the risk of electric CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE PLUG TO WIDE SLOT, INSERT FULLY. shock, do not remove cover (or back). No user-serviceable parts inside. Refer servicing to qualified service personnel. ATTENTION: POUR EVITER LES CHOCS ELECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU AU FOND.
INTRODUCTION Congratulations on your purchase of the Cinema Sub In-Wall Subwoofer! The Cinema Sub will provide the excellent performance and reliability that SpeakerCraft products have been recognized for. The Cinema Sub delivers the room-filling, thundering bass demanded by today’s home theater systems, while remaining completely recessed in the wall behind a flush mounted grille. The performance of high power, floor standing subwoofers has finally come to architectural speakers.
DIAGRAM 1 Installation Overview STEP 1 Cut opening STEP 2 Connect wires STEP 3 Mount Speaker STEP 4 Insert Grille Please use Diagram 1 for a quick installation overview, which will be explored in greater detail throughout this manual. CAUTION • The Cinema Sub is designed to work only with the Bass Power amplifier. To insure maximum sound quality and performance, use this amplifier only. • Be sure there is enough clearance for the mounting feet. • Please follow the instructions below carefully.
INSTALLATION 1a. Cinema Sub Installation – New Construction Mounting the Cinema Sub subwoofer requires that you first run speaker wire (minimum 14 gauge) to the Bass Power amplifier’s location. For greatest flexibility of connection, use four conductor, 14 gauge wiring. After pulling the speaker wire from the Bass Power amplifier location, you can now hang the drywall. Carefully mark and cut out the hole for the subwoofer before mounting the drywall.
SPECIFICATIONS Cinema Sub 12 Cinema Sub 10 Driver: 12" Long Throw Woofer, Treated Paper Cone with Butyl Rubber Surround 10" Long Throw Woofer, Treated PaperCone with Butyl Rubber Surround Impedance: 4 ohms / per coil 4 ohms / per coil SPL: 91 dB 89 dB Frequency Response: 25Hz - 500Hz 30Hz - 800Hz Power Handling: 250 watts 200 watts Baffle & Grille Color: White White Dimensions H x W: 1415⁄16" x 1415⁄16" 139⁄16" x 139⁄16" (380mm x 380mm) (345mm x 345mm) 133⁄8" x 133⁄8" 121⁄8" x 121⁄
LIMITED LIFETIME WARRANTY SpeakerCraft Inc. warrants to the original retail purchaser only that the Cinema Sub Subwoofer will be free from defects in materials and workmanship, provided the speaker was purchased from a SpeakerCraft Authorized Dealer. Defective products must be shipped, together with proof of purchase, prepaid insured to the SpeakerCraft Authorized Dealer from whom they were purchased, or to the SpeakerCraft factory at the address listed on this installation instruction manual.
940 Columbia Avenue, Riverside CA, 92507 | USA (800) 448 0976 Fax (951) 787 8747 International +1 951 787 0543 | www.speakercraft.
