Installation

INSTRUCTIONS FOR MODELS
92-S-3357-01
For additional assistance or service please contact:
SPEAKMAN
®
Company
400 Anchor Mill Road
New Castle, DE 19720
800-537-2107
[e-mail]
www.speakmancompany.com
S-3357
POP UP DRAIN
TOOLS AND SUPPLIES
IMPORTANT
SAFETY TIPS
Be sure to wear eye protection.
MAINTENANCE
Your new Faucet Drain is designed for years of
trouble-free performance. Keep it looking new by
cleaning it periodically with a soft cloth. Avoid
abrasive cleaners, steel wool, and harsh chemicals
as these will dull the finish and void your warranty.
WARRANTY
1 Year Limited Warranty
Additional warranty information can be found at:
www.speakmancompany.com
Plumber’s
Putty
Slip Joint
Wrench
1

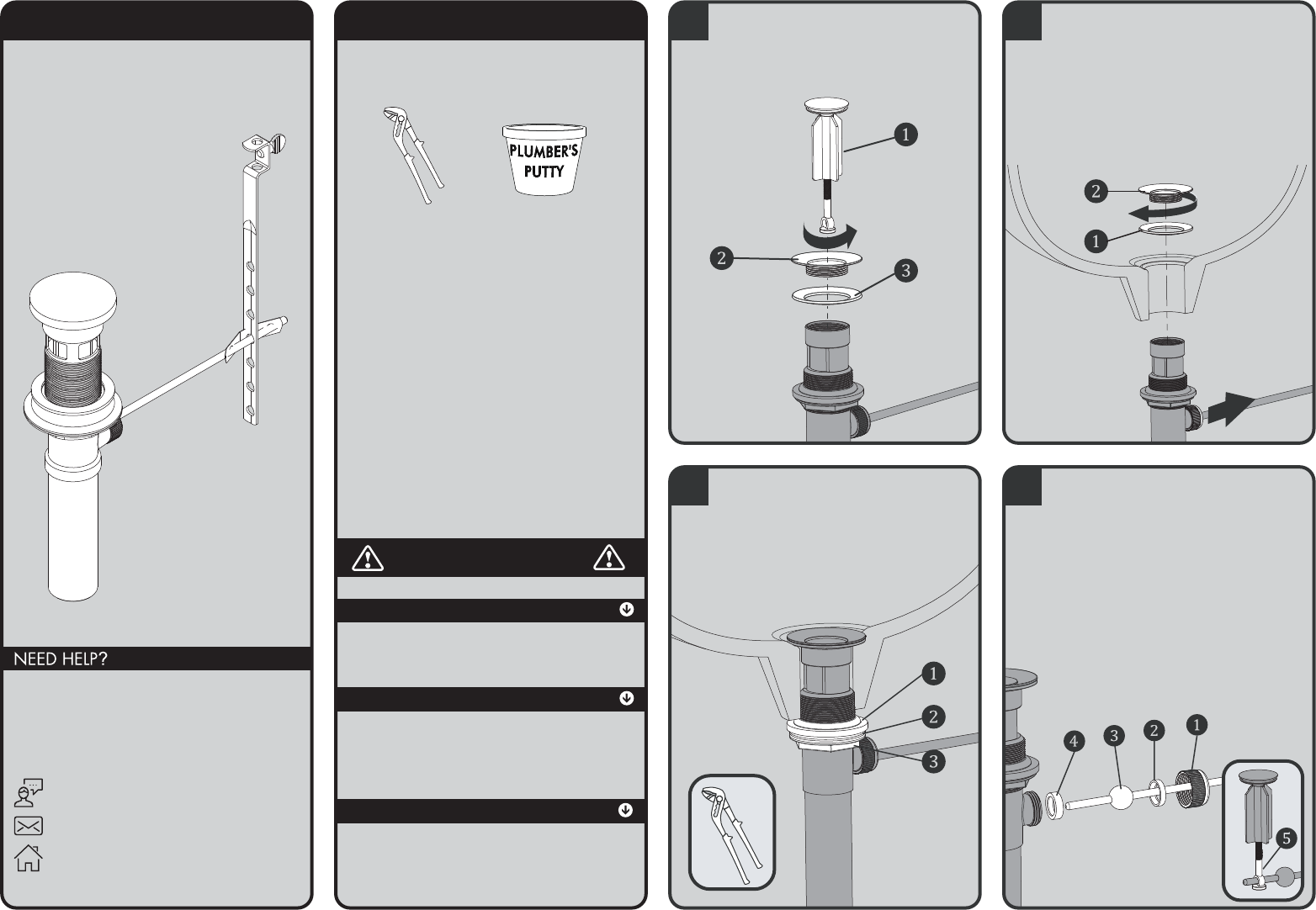

Remove Stopper ❶, Flange Nut ❷, and Flange
Washer ❸ from Drain Assembly.
2
From beneath, insert Drain Assembly through
drain hole in sink. Attach supplied Flange
Washer ❶ or plumber’s putty to the underside of
the Flange ❷. Secure Flange ❷ to the Drain
Assembly. Align the Drain Assembly as shown
below.
Align towards faucet.
3
From beneath, secure Rubber Washer ❶, Plastic
Washer ❷, and Mounting Nut ❸. Wrench
tighten.
4
Remove Pivot Nut ❶, from Drain Assembly.
Install Outer Pivot Washer ❷, and Pivot Rod ❸.
Ensure that Inner Pivot Washer ❹ is retained in
Drain Assembly. Insert Pivot Rod into Drain
Assembly and install Stopper ❺ as
non-removable. Secure Pivot Rod to Drain
Assembly by tightening Pivot Nut ❶.
