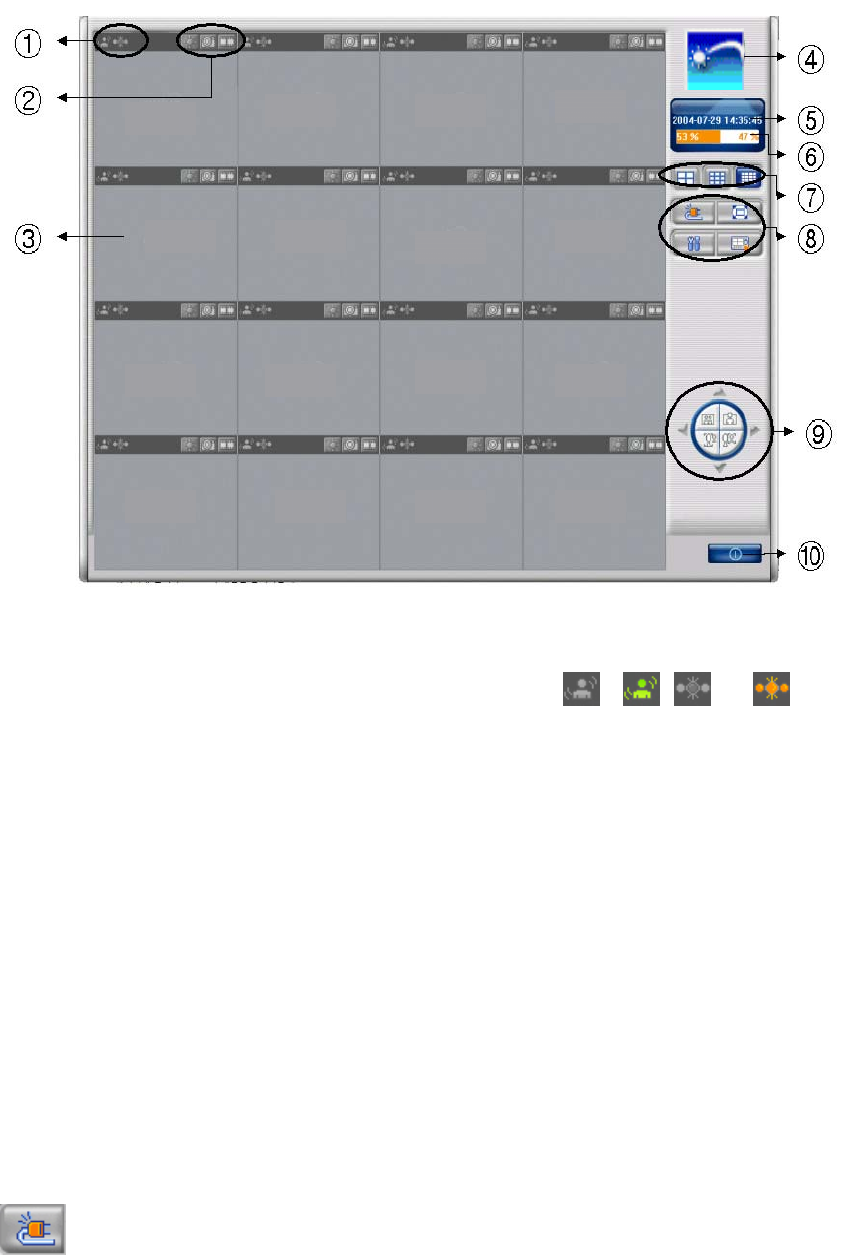

4.5.2 Screen and Button
① ICON for Event (Motion, Sensor): If an Event is activated, => , => the
color of icons change.
② BUTTON for channel (Connect/Disconnect, Capture, Record)
③ Channel SCREEN
③ Click on icon logo to check the version of program
⑤ Actual Time shows.
⑥ Information of Hard Disk of PC shows
⑦ Button for dividing screen (4 screen, 9 screen, 16 screen)
⑧ Button for DVR list, Full Screen, Recording time, Setting-up, link to UNI-Player
⑨ Button for Pan/Tilt, Zoom/Focus
⑩ Button for closing program
4.5.3 DVR LIST management & connection
If users click this button in the main screen, DVR List management & connection
