4-CHANNEL TRIPLEX NETWORK DVR DVR-T4IP USER MANUAL
Table Of Contents
- 1. SYSTEM OVERVIEWS
- 1.1 Packing list
- 1.2 Features & specifications
- 1.3 Name, function & connections
- 1.4 INSTALLATION
- 2. Basic operation procedures
- 3. Main Setup screen
- 3.1 Camera Setup menu
- 3.2 Record Setup menu
- 3.3 Event Setup Menu
- 3.4 Playback Setup
- 3.5 Display Setup screen
- 3.6 Network Setup screen
- 3.7 System Setup screen
- 3.8 Backup
- 3.9 System Information
- 3.10 Search Menu
- 3.11 PLAYBACK
- 3.12 Miscellaneous Menu
- 4. DVR-T4IP Client program
- 4.1 Overview of DVR-T4IP
- 4.2 Installation & execution of program
- 4.3 RAMS (Remote Access & Monitoring System)
- 4.3.1 Screen and button
- 4.3.2 Connecting to DVR
- 4.3.3 Channel On/Off
- 4.3.4 UniPlayer link
- 4.3.5 Full-screen display
- 4.3.6 Program setup
- 4.3.7 DVR recording
- 4.3.8 DVR playback search
- 4.3.9 DVR playback search
- 4.3.10 DVR backup
- 4.3.11 DVR Setting
- 4.3.12 Still image Capture
- 4.3.13 Watermark insertion
- 4.3.14 Printing still image
- 4.3.15 Motion picture recording
- 4.3.16 D-Zoom
- 4.3.17 PAN/TILT, ZOOM/FOCUS
- 4.3.18 HDD Information
- 4.3.19 Check the program version
- 4.3.20 S/W upgrade of DVR
- 4.3.21 Close program
- 4.4 UniPlayer
- 4.4.1 Screen and button
- 4.4.2 Search
- 4.4.3 Searching by directory
- 4.4.4 Still Image Capture
- 4.4.5 Input water mark
- 4.4.6 Printing still image
- 4.4.7 D-Zoom Function
- 4.4.8 Moving picture file playback, playing, pause, temporarily pause, move by interval of frame, fast forward Playing
- 4.4.9 Water mark drawing
- 4.4.10 Panorama
- 4.4.11 Check the program version.
- 4.4.12 Close Program
- 4.5 MultiViewer
- 4.6 Quick Installer
- 5. Appendix
117

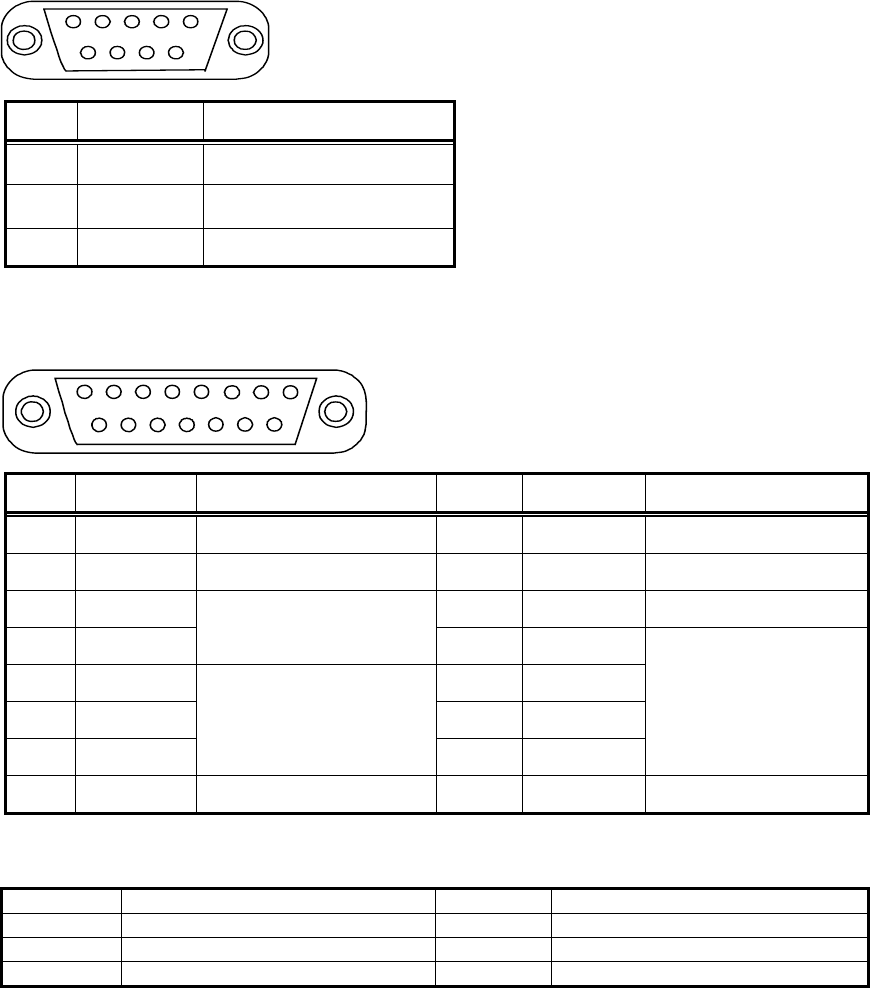

5.2 Terminal Information
5.2.1 DSUB-9P (RS-232)
15
69
No Name Description
2 RXD Receive Data
3 TXD Transmit Data
5 GND Signal Ground
5.2.2 DSUB-15P (PTZ / AUX / ALARM / SENSOR)
18
9
15
No Name Description No Name Description
1 RS-485+ RS-485 Transmit Data + 9 Alarm Out Alarm Out (NO)
2 RS-485- RS-485 Transmit Data - 10 Alarm Out Alarm Out (COM)
3 AUX1 11 Alarm Out Alarm Out (NC)
4 AUX2
Auxiliary In Port
(RSI, ARI, RONOFFI)*
12 Sensor1
5 AUX3 13 Sensor2
6 AUX4 14 Sensor3
7 AUX5
Auxiliary Out Port
(ARO, RSTO, ERRO,
DFO, RSO)*
15 Sensor4
NO/NC
8 GND Signal Ground
* Abbreviation
RSI Record Start In RSTO Record Start Out
RI Alarm Reset In ERRO Error Out
RONOFFI Record On Off In DFO Disk Full Out
ARO Alarm Record Out RSO Record Status Out
