32
Preset numbers are selected by Left/Right buttons and the Pan/Tilt drive
moves to the preset position after pressing OK button.
- Light : To turn on/off the camera lighting selected by Left/Right and OK buttons.
- Camera : To turn on/off the camera itself selected by Left/Right and OK buttons.
- Aux : To turn on/off the AUX (two) connected to the camera. On/off are selected
by Left/Right and OK buttons.
- Auto Pan : To automatically pan the camera. On/off are selected by Left/Right and OK
buttons.
3.1.5 Picture Setting
3.1.5.1 Contrast, Brightness, Hue, Sharpness
Contrast, Brightness, Hue, Sharpness will be managed & each parameter has 16
level steps adjustable.
3.1.5.2 Default
Users can restore the factory default setting of Contrast, Brightness, Hue, & Sharpness.
Confirmation box on picture setting default will appear after entering default. User can
restore the factory default setting after entering ‘yes’ key button.

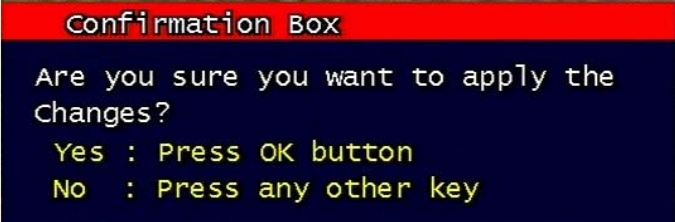

Figure 3-6 Confirmation box on Picture Setting Default
3.1.6 Sequence time
It can set sequential display time of each channel during Live Viewing mode.
Choose from 2, 4, 5, 8, 10, 15, 30 second sequential display time.
