3.2.3.3 Audio ON/OFF
User can set audio on/off function. If used Audio On mode, audio signal will be recorded
simultaneously with video and used audio off mode, audio signal not be recorded.
3.2.3.4 Frame rate
3.2.3.4.1 NTSC
User can set the recording Frame rate at Quad Recording, none (Non recording), 1, 2, 3, 5,
7, 10, 15, 30 fps will be selectable. This setting is applicable to all channels as equal forms.
3.2.3.4.2 PAL
User can set the recording Frame rate at Quad Recording, none (Non recording), 1, 2, 3, 5,
6, 10, 12, 25 fps will be selectable. This setting is applicable to all channels as equal forms.
3.2.3.5 Record mode
Please refer to terms on Record mode 3.2.2.6 as it is same..
3.2.4 Record Schedule setting

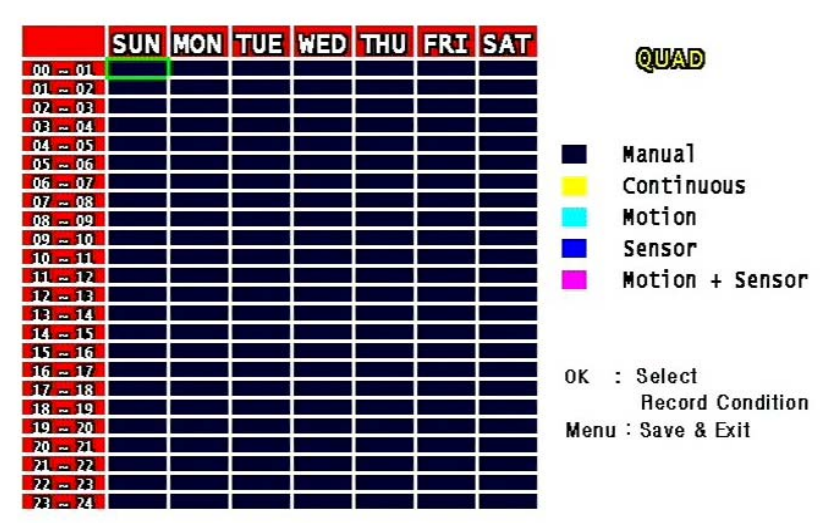

Figure 3-9 Recording schedule setting screen
