3.3.5.4 Target Path
Configure the path to transmit to an FTP server. The path can contain maximum of 31
characters.

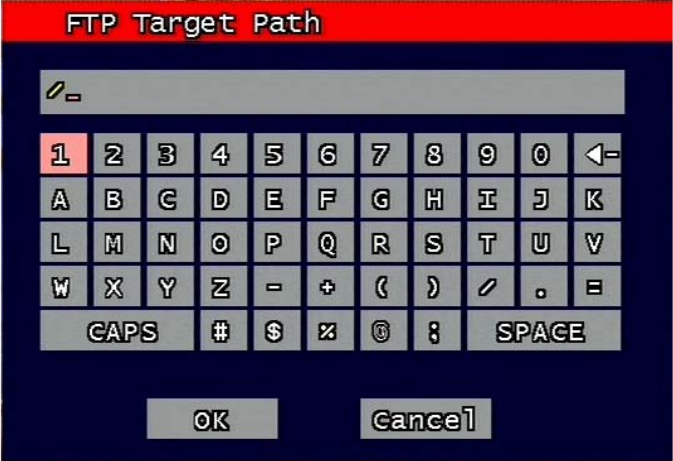

Figure 3-18 FTP Target Path
3.3.5.5 FTP Length of Image (second)
Select FTP length of image by second (5 to 10 seconds are selectable)
to transmit image files for selected seconds.
3.3.6 FTP Trigger Setting
Selects on/off for transmitting the video file to FTP for each channel.
