3.6.6.1 Port
Please refer to the port setting in paragraph 3.6.4.
3.6.6.2 ID
Type in your user ID for the ADSL account (PPPoE).
The password can contain maximum of 31 characters.

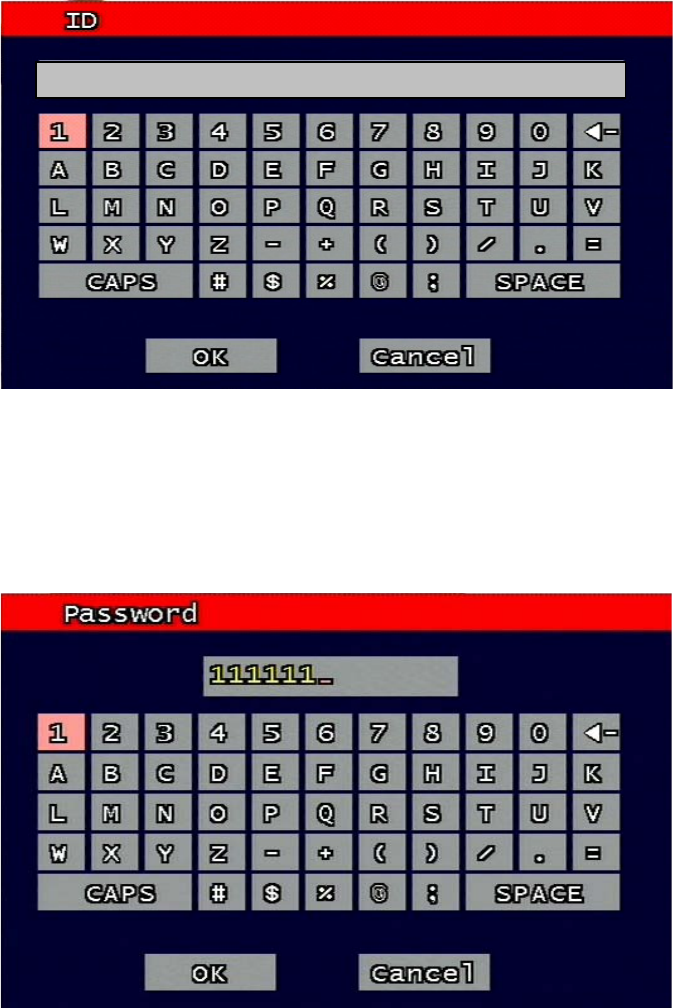

Figure 3-31 ID input screen
3.6.6.3 Password
Type in your user Password for the ADSL account (PPPoE),
The password can contain maximum of 12 characters.
Figure 3-32 Password input screen
