3.7.7.5.1 Capacity
Please refer to paragraph 3.7.3.1.
3.7.7.5.2 Function
Set up for Removable HDD usage. Users can fix it for manual Backup, Auto backup,
Extension. If it is fixed to manual backup, users can use for manual backup. It is fixed to auto
backup, system will automatically backup recording image. If it is fixed by extension, it will be
the same as Internal HDD.
If backup mode (Manual, Auto backup) is changed to extension mode, warning box on HDD
function change will appear after entering ‘yes’ key button and it can erase all information of
Removable HDD.

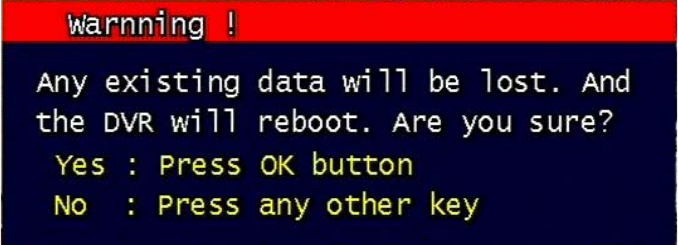

Figure 43 Change of HDD Function mode
3.7.7.5.3 Format
Please refer to paragraph 3.7.7.3.2.
3.7.8 Aux Port
Set up for Aux Port
