3.11.1.3.6 Audio ON / OFF
In case of recorded image with Audio, user can on or off by using the button “ AUDIO MUTE”.
The Icon in the top of screen shows the status (On / Off) of AUDIO.
3.11.2 Playback of still image
3.11.2.1 Method of playback
As the paragraph 3.2.1, users put the curser to contents. In the searched still Image Lists,
and press Button “OK”.
The screen of search list disappears and still image is played back as the paragraph 3.2.1.
3.11.2.2 Screen of playing back

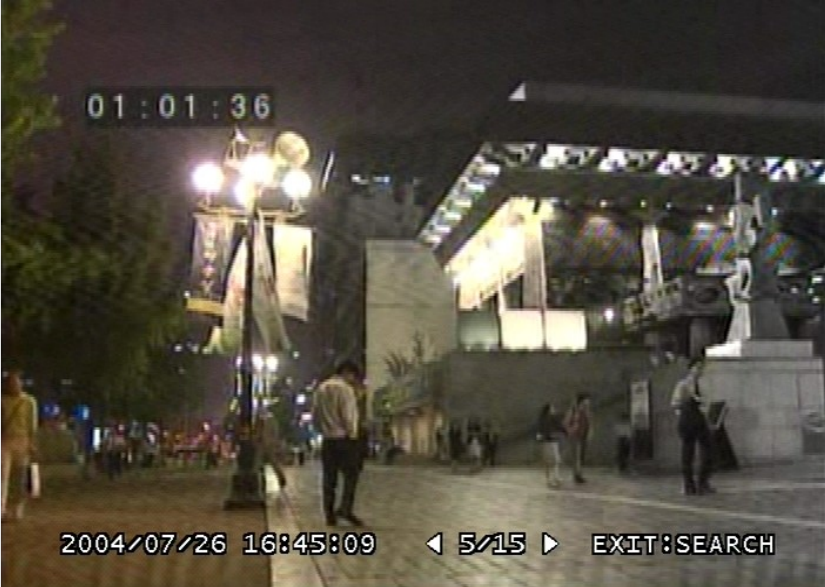

Figure 3-56 Still Image of playing back
3.11.2.3 Control during Play back
3.11.2.3.1 Stop of play back
To stop the playing back, User press button “STOP” or “ SEARCH”.
