② Select the image of water mark to be input in the still image
③ Set up a program by user’s language
④ Set up whether alarm occurrence is on or off when motion detection or sensor icon
activated.
⑤ Close the window without saving the setup
⑥ Close the window after saving the setup
4.3.7 DVR recording
It works as recording button of DVR system. After logging in admin, button will be
activated. Under recording mode at DVR, red icon will be displayed at the top of right at the
window.

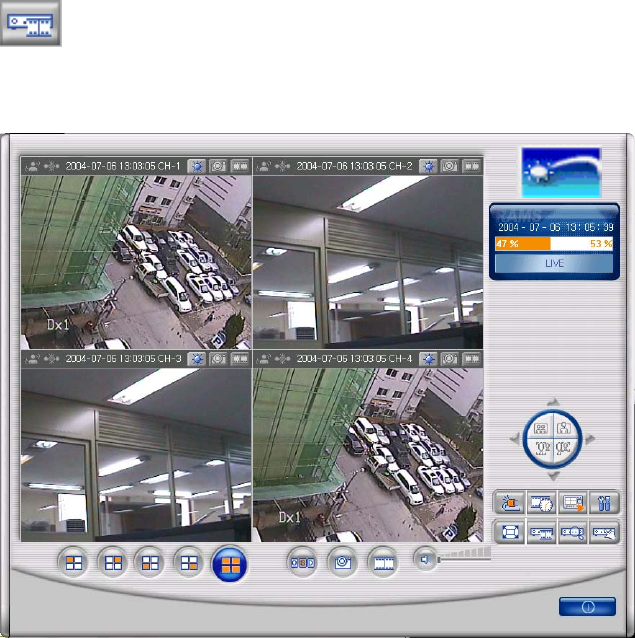

=> DVR (live viewing)
