When user use temporarily pause image file move to forward
Play stored files slowly. User can control by clicking this button
Play stored files quickly. User can control by clicking this button
Playback button. Start playback previous files of present viewing files
Playback button. Start playback next files of present viewing files
4.3.10 DVR backup

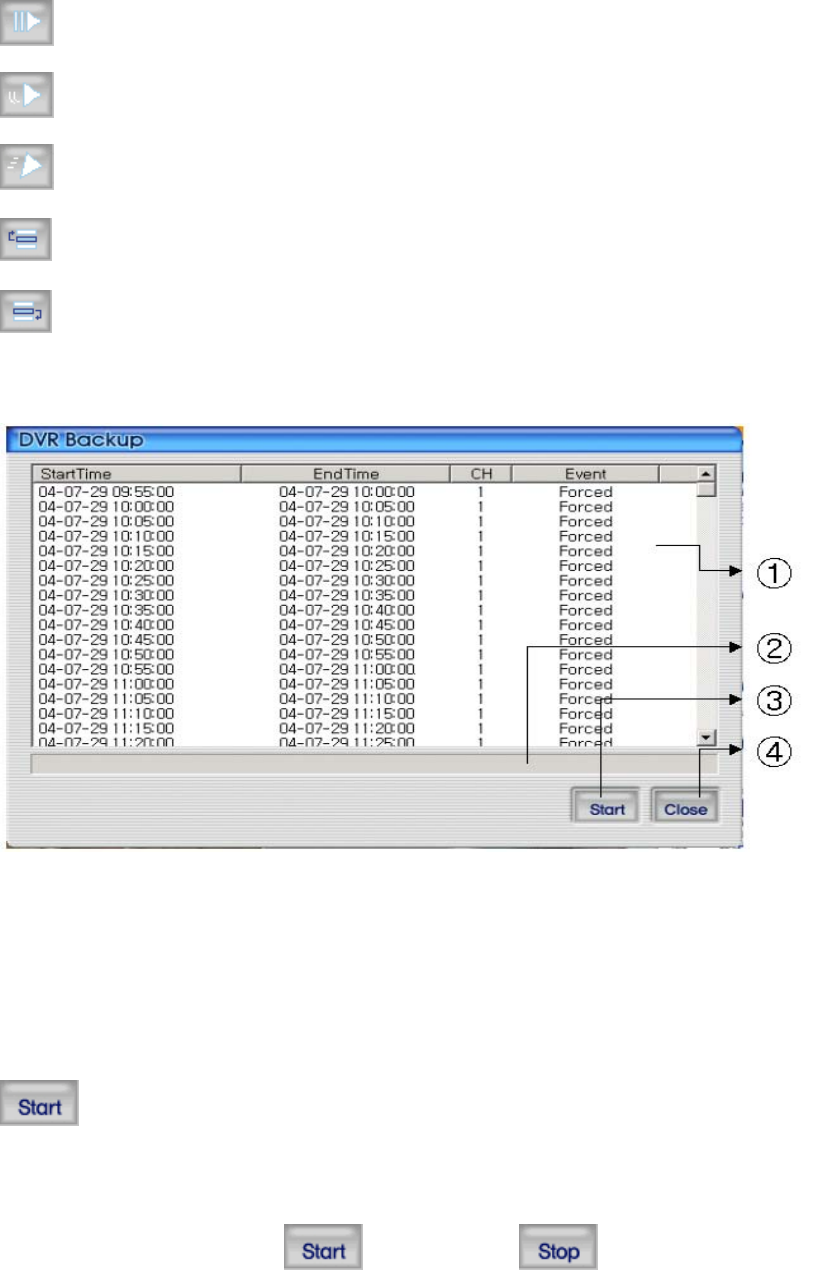

① DVR search files will appear recording start/end time, channel, and event information
included
② Indicator backup progress at backup
③ Button for staring of backup. With pushing selected channel, start to backup
④ Close DVR backup window
After selecting a file at DVR backup list, user can start to backup with pushing start
button
The destination of backup files is below of backup folder located in directory of program
installed. After starting backup,
button changes button, displays backup
