88

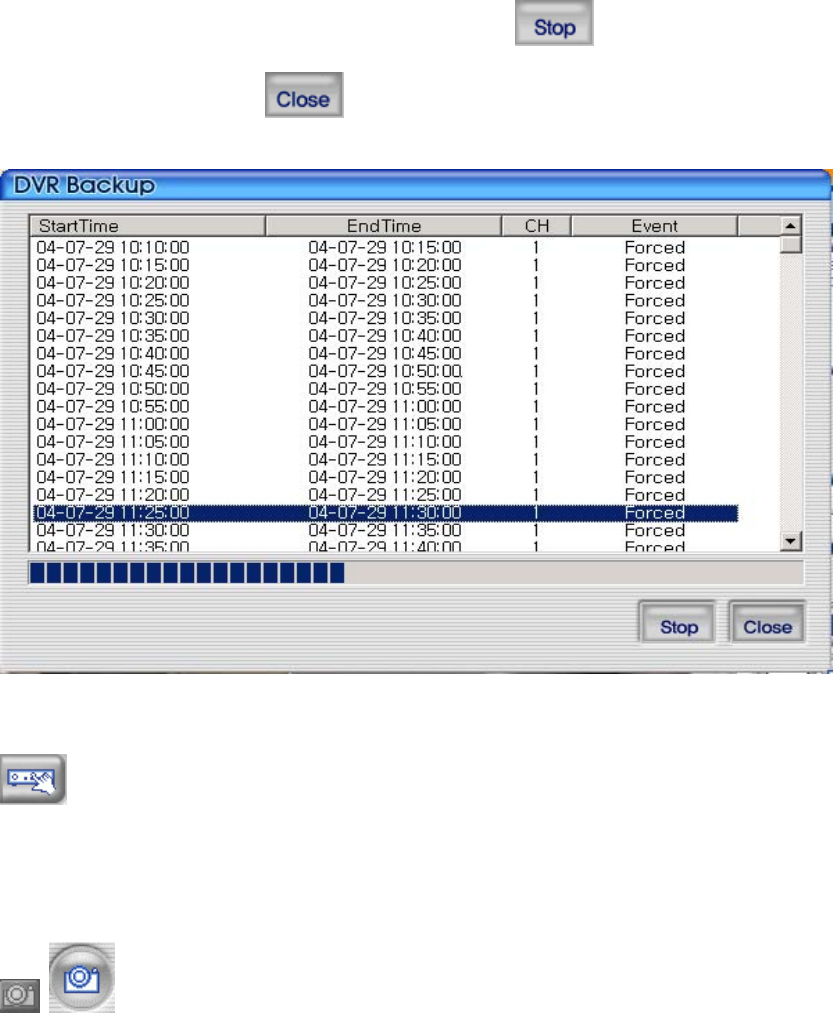

progress rate. Even backup, users can stop it by pushing
button. Close DVR
backup window with pushing
button. (Even backup mode, it will be stopped &
closed.)
4.3.11 DVR Setting
This button is for linking into quick installation program is used to manage setting
parameter of DVR easily. It can be activated after logging in by admin.
4.3.12 Still image Capture
Yon can save playing image such as live viewing image, DVR playback image,
into still image by capture. Besides users can capture image by pushing capture button for
each channel or push capture button at the foot of a screen. Still image will be saved in a
path frame directory established in RAMS’s setup section screen. If user change storage
path of still image at setup window, still image will be recorded to destination in the future.
