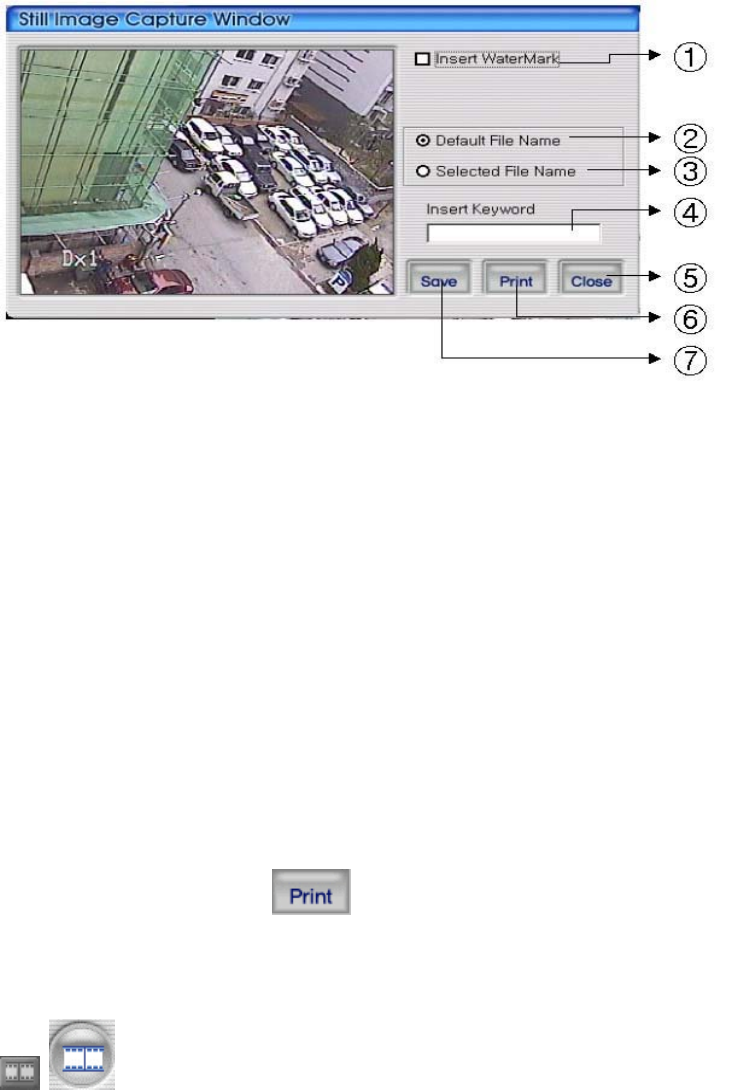

① Select check box in order to insert watermark into still image capture
② Save still image as user defined default file name if chosen
③ Save still image as user selected new file name if chosen
④ Insert keyword to user easy searching
⑤ Close still image capture window
⑥ Print still image capture file
⑦ Save still image. The destination of recording is assigned at still image recording, folder
through setup menu among RAMS program
4.3.13 Watermark insertion
Click the watermark checkbox then push the save button to save still image with watermark.
4.3.14 Printing still image
To print still image, please push icon in capture screen.
4.3.15 Motion picture recording
With live viewing picture, motion picture recording and saving at local PC
User can record each channel by pushing record button on top right side of channel or
pushing record button at below side of window. After pushing recording, record time setting
window will be popup. Users can change it or not.
