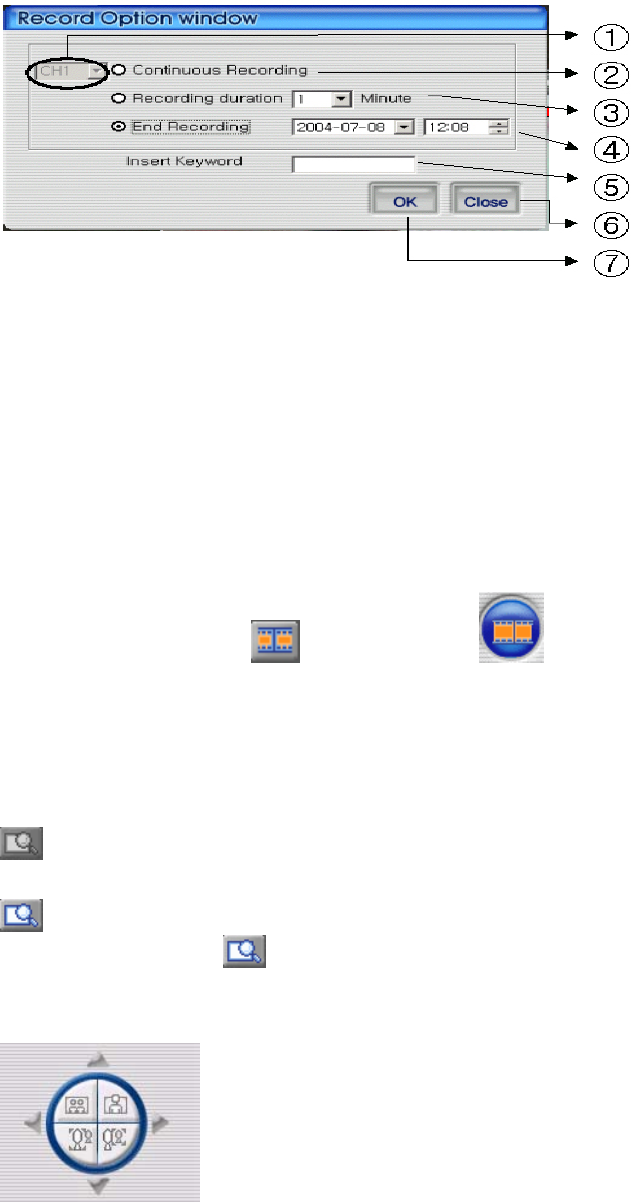

① Select the targeted channel changed recording time. Among this mode, Quad mean that
timing choice for recording button on main menu
② Continuous recording until clients stop recording mode
③ Continuous recording until targeted minutes. Of course, it stopped manually by users
④ Continuous recording until targeted date & time. It stopped manually by users
⑤ For easy searching by keyword, client will insert keyword at search mode
⑥ Close record option window
⑦ After saving new selected recording option, automatically close it
With starting record, button
will be changed to button
In order to stop recording, users just push record button again & record. The recording
destination is record directory installed in Program.
4.3.16 D-Zoom
Button is only for viewing one channel. Once users push this button and move to image
screen, mouse curser will change into cross shape. And D-Zoom button will change into
icon. At that time, users drag with mouse and if let it down, drag point will be zooming.
If users push this button
one more time, it will convert original image.
4.3.17 PAN/TILT, ZOOM/FOCUS
These buttons are for PAN/TILT, ZOOM/FOCUS function of DVR
and after logging in by admin and/or one channel selected.
