③ Display S/W update window of DVR system
4.3.20 S/W upgrade of DVR

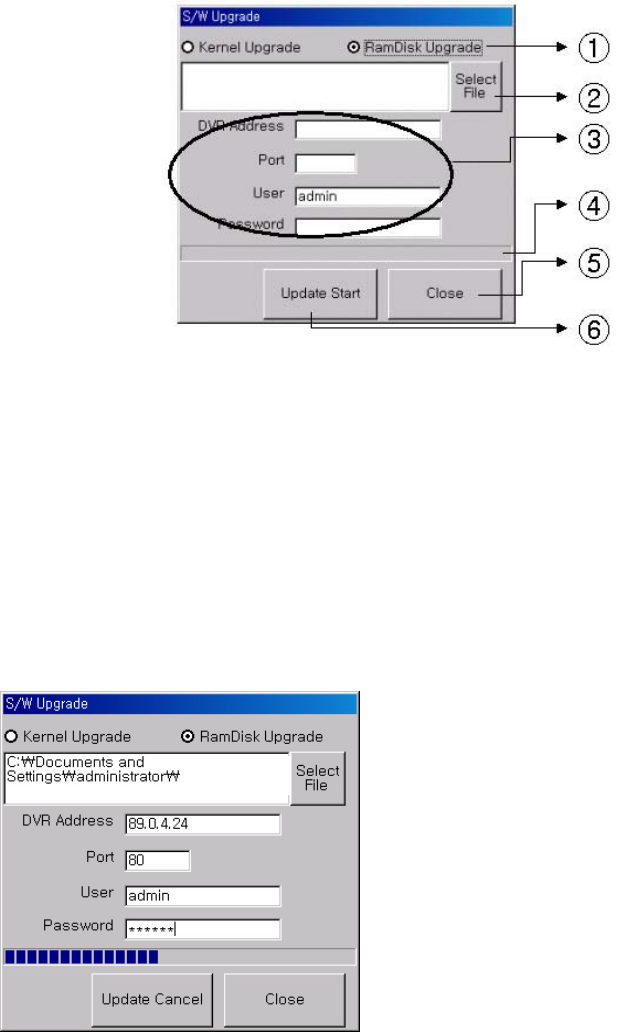

S/W upgrade window is activated on pushing S/W upgrade button in the program version
check screen
① : Select targeted files to upgrade
② : Select targeted files saved in local PC
③ : Enter targeted DVR information such as DVR address, Port, user, and password (admin
only)
④ : Indicator of targeted file’s transmission status
⑤ : Close upgrade window
⑥ : Transmit targeted files. After that, changed to upgraded cancel (cancel of upgrade
transmission)
=> Display status of SW Upgrade
Ramdisk file
