Software Instruction Manual

English
33
• If you are using an external radio receiver, connect the
radio to the receiver through a POGO cable (this accessory
is available from Spectra Precision):
– For most models of supported radios, the POGO cable
that should be used is the one with bare wires on radio
side (Unterminated POGO cable P/N 111659), which
means you have to add a connector that is suitable for
your radio model. The POGO cable pinout is provided
in the left-hand column. Some radio models can be
configured directly from within ProMark Field.
– If you purchased a Satel Easy radio from Spectra
Precision, then the POGO cable is provided with the
suitable connector (it’s part of the radio kit P/N
802144). You just need to connect this cable between
the GNSS receiver and the Satel radio. The Satel radio
should be configured separately (this cannot be done
from within ProMark Field).
Step-by-step procedure:
• Turn on the receiver, run ProMark Field and create a job
as explained in Creating a New Job on page 11.
• Go to Menu>Options. On the Survey tab, select “Real-time”
as the survey mode. The Type parameter should be set to
“stop-and-go kinematic” to log or stake out points, or to
“Continuous kinematic” to log lines.
• Tap OK.
• Tap Menu and select Configuration...
• Select “Rover” from the Configuration drop-down list
• Tap Settings.
•On the GNSS tab, make sure the “Internal” GNSS receiver
is selected.
• Tap on the Antenna tab,
• Enter the antenna height, then select “Vertical”,
corresponding to the pole length, with the pole held
vertical.
• Select the type of antenna used.

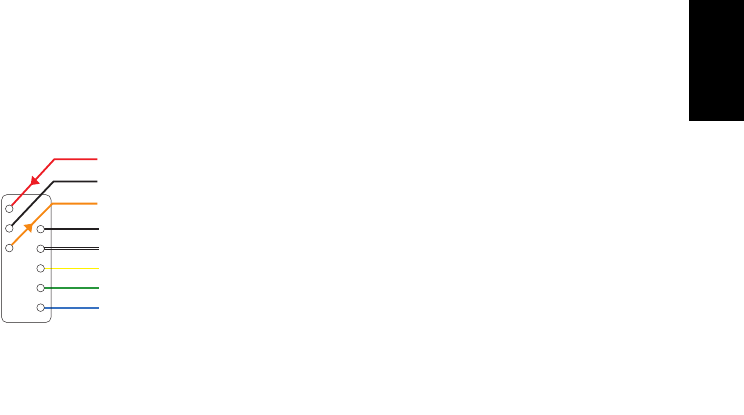

*: DC power input
(12-28 V DC/2 A external battery)
**: DC power output to UHF radio
(12 V DC/0.5 A)
GND, 0.5 A
+DC IN*
+DC OUT**
GND, 2 A
UHF_RX
UHF_CTS
UHF_TX
Black
White
Yellow
Green
Blue
Red
Black
Orange
UHF_RTS
POGO
Connector
POGO Cable
P/N 111659
