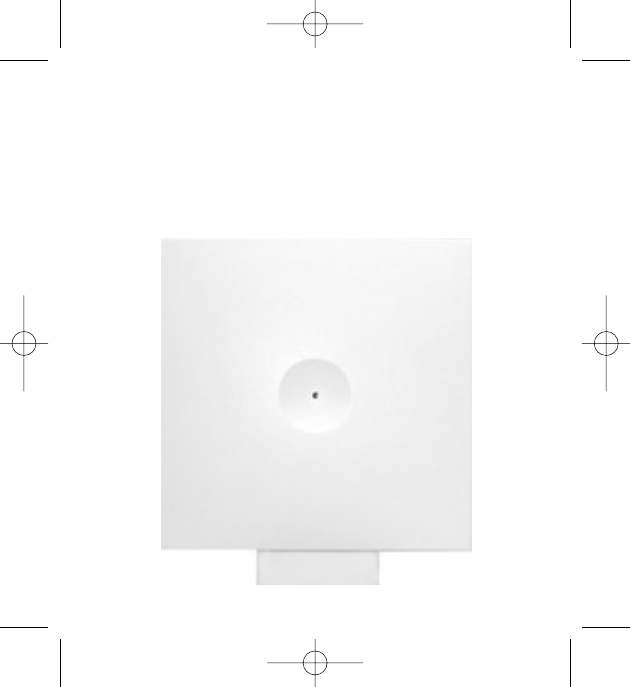

405_7301_Reapeter_1G9.qxp 17-06-2005 09:48 Instructions for installation and configuration of a KIRK Repeater 1.
1405_7301_Reapeter_1G9.qxp 17-06-2005 09:48 Side 2 W e recommend you to use the instructions in point A. You can use instructions in point B as an alternative configuration method (if you do not have access to the KIRK Programming Kit and a PC) A. To install a Repeater you will need a configuration program, the Repeater programming kit and documentation of how to connect the cables. The KIRK Programming Kit can be found at w w w.kirktelecom.com.
1405_7301_Reapeter_1G9.qxp 17-06-2005 09:48 Side 3 If you need to remove the repeater please separate it from the suspension holder with a gentle push of a screwdriver. For further information and technical support please also refer our web address www.kirktelecom.
1405_7301_Reapeter_1G9.qxp 17-06-2005 09:48 Side 4 B. (if you do not have access to the KIRK Programming Kit and a PC) 1 Turn on the base station and a subscribed handset. 2 Turn on the KIRK Repeater for more than 1 second and less than 5 seconds (note 1). Turn off the KIRK Repeater and turn it on again. The repeater is now in subscription mode. This is indi cated by a flashing LED immediately after power is switched on. In this mode the KIRK Repeater is searching for a Fixed Part in subscription mode.
1405_7301_Reapeter_1G9.qxp 17-06-2005 09:48 Side 5 3 For KIRK Wireless Server 500 & 600 only Start subscription mode in the base station. The usual procedure is pressing the button on the base station for some seconds. This is the mode normally used when subscribing a handset to the base station (note 2). 4 The KIRK Repeater is synchronised with a base station in subscription mode. This is indicated by a fast flashing LED. 5 Verify that the KIRK Repeater is synchronised with the requested base station.
1405_7301_Reapeter_1G9.qxp 17-06-2005 09:48 6 Select Radio Part Number (RPN). Hook off and press a number on the handset in the range 2 7. When the number is accepted by the KIRK Repeater this is acknowledged by the LED flashing the number of times corresponding to the digit. Digits may be entered several times. Only the last accepted digit is recorded (note 3). If you are using more repeaters on the same base station they must have different RPNs.
1405_7301_Reapeter_1G9.qxp 17-06-2005 09:48 Side 7 Note 1: In normal operation mode the LED will light up steadily for the first 5 seconds after powering up. Afterwards the LED is flashing when the KIRK Repeater is unsynchronised and the LED becomes steady when synchronised to a base station. Whenever a connection is established via the KIRK Repeater a short flash appears on the LED.
1405_7301_Reapeter_1G9.qxp Note 4: 17-06-2005 09:48 Side 8 If the #-key is used to accept the subscription identities an inspection tone is enabled. The KIRK Repeater will then, when relaying connections, insert a short tone every 2 seconds in the audio path to handsets. This feature can be used for inspection and verification of the KIRK Repeater placement. When the operation has been verified the inspection tone should be disabled.
1405_7301_Reapeter_1G9.qxp 17-06-2005 09:48 Side 9 Important Safety Instructions and Product Information Before using your telephone equipment, you should always follow basic safety instruction to reduce the risk of fire, electrical shock and injury to persons, and damage to property. 1 2 3 4 5 Read and understand all instructions Follow all warnings and instructions including those marked on the product Unplug this product before cleaning. Do not use liquid cleaners or aerosol cleaners.
1405_7301_Reapeter_1G9.qxp 6 17-06-2005 09:48 Side 10 The product should be operated only from the type of power source indicated on the instructions. If you are not sure of the type of power supply, consult your dealer or local power company. 7 Do not overload wall outlets and extension cords as this can result in fire or electrical shock.
1405_7301_Reapeter_1G9.qxp 17-06-2005 09:48 Side 11 A Q If liquid has been spilled into the product B Q If the product has been exposed to rain or water C Q If the product does not operate normally when following the operating instructions in the manual. Adjust only those controls that are covered by the operation instructions. Improper adjustment of other controls may result in damage and will often require extensive work by qualified service personnel to restore the product to normal operation.
1405_7301_Reapeter_1G9.qxp 17-06-2005 09:48 Side 12 interference to the base or handset 14 The unit must be installed on a hard, plane surface and connected to a functional 120 volt A C power netadapter and plug the adapter into the power outlet 15 The system will not operate in the event of a blackout. Please keep a backup phone for emergencies Intrinsic safety Do not install the unit in conditions where there is a danger of electrically ignited explosions.
1405_7301_Reapeter_1G9.qxp 17-06-2005 09:48 Side 13 ed and may even cause damage. Power failure In the event of a power failure, you cannot use the wireless system to make or receive calls. NOTICES NOTICE: Before installing this equipment, users should ensure that it is permissible to be connected to the facilities of the local telecommunications company.The equipment must also be installed using an acceptable method of connection.
05_7301_Reapeter_1G9.qxp 17-06-2005 09:48 Side 14 Users should ensure for their own protection that the electrical ground connections of the power utility, telephone lines and internal metallic water pipe system, if present, are connected together.This precaution may be particularly important in rural areas. CAUTIONS: Users should not attempt to make such connections themselves, but should contact the appropriate electric inspection authority, or electrician, as appropriate.
1405_7301_Reapeter_1G9.qxp 17-06-2005 09:48 Side 15 Your telephone company may make changes in its facilities, equipment, operations, or procedures that could affect the proper functioning of your telephone system, If they do and it is possible, you will be notified in advance to give you an opportunity to maintain uninterrupted telephone service.
1405_7301_Reapeter_1G9.qxp 17-06-2005 09:48 Side 16 does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the seperation between the equioment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
1405_7301_Reapeter_1G9.qxp 17-06-2005 09:48 Side 17 not expressly approved by the party responsible for compliance could void the user s authority to operate the equipment. LIMITED WA R R A N T Y This limited, non-transferable warranty is provided to the original purchaser.The product is warranted to be free from defects in materials and workmanship under normal installation, use and service for a period of one (1) year from the date of purchase as shown on the purchaser s receipt.
1405_7301_Reapeter_1G9.qxp 17-06-2005 09:48 Side 18 ve remedy. If the product is repaired, reconditioned component parts or materials may be used. If the product is replaced, we may replace it with a new or reconditioned product of the same or similar design. The repaired product will be warranted for either (a) 90 days or (b) the remainder of the original one (1) year warranty period, whichever is longer.
1405_7301_Reapeter_1G9.qxp 17-06-2005 09:48 Side 19 instructions furnished by us. This warranty is also void if this product is removed from the country in which it was purchased by the original purchaser, if it is used in a country in which it is not registered for use, or if it is used in a country for which it was not designed. Due to variations in telephone systems and communications laws, this product may be illegal for use in some countries.
1405_7301_Reapeter_1G9.qxp 17-06-2005 09:48 Side 20 FOR LOSS OF USE OF THE PRODUCTS, LOSS OF TIME, INCONVENIENCE, INJURY TO A N Y PERSON, OR DAMAGE TO PROPERTY C A U S E D B Y THE PRODUCT, LOSS OF REVENUE OR PROFIT OR DAMAGES FOR A N Y FAILURE TO PERFORM. IN NO EVENT SHALL WE BE LIABLE FOR A N Y SPECIAL, INCIDENTAL, PUNITIVE OR CONSEQUENTIAL DAMAGES EVEN IF WE ARE ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
1405_7301_Reapeter_1G9.qxp 17-06-2005 09:48 Side 21 installation is required for the external antenna. The antenna used for this transmitter is to be fixedmounted on indoor permanent structures providing a separation distance of at least 20 cm from all persons during normal operation and must not be co-located or operating in conjunction with any other antenna or transmitter. The maximum radiated output power is 1W e.i.r.p.
17-06-2005 KIRK telecom A/S Langmarksvej 34 DK-8700 Horsens Denmark Tlf. +45 7560 2850 Fax +45 7560 2851 kirk@kirktelecom.com w w w.kirktelecom.com 09:48 Side 23 1405 7301-HD, ed.2 . Reklame & Tryk A/S . 75 50 26 66 1405_7301_Reapeter_1G9.
